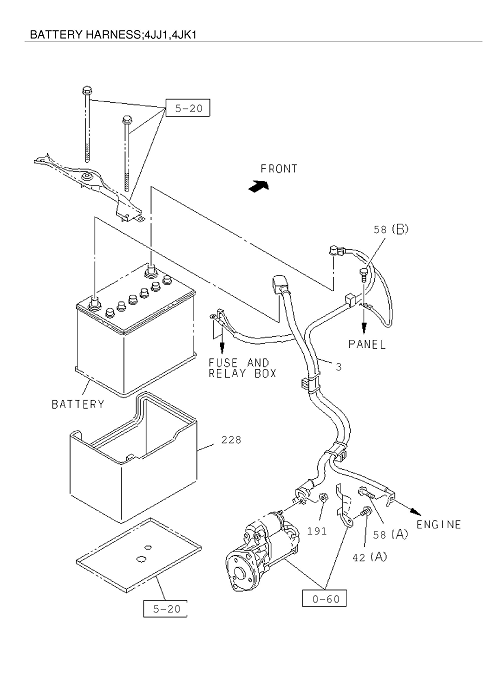

0-61 | BATTERY AND ENGINE ELECTRICAL PARTS
DMAX
D-MAX 2016
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 5 | 5-09707 031-1 | CLIP BATTERY CABLE TO BODY | 1 | 1602- | A | HIGH RIDE SUSPENSION(7YC) 03.162 L=140 | ||
| 58 | 0-28651 020-0 | BOLT CABLE,BATTERY | 1 | 1602- | ABCD | (A) M10X2 0 FLANGE | ||
| 228 | 8-98154 327-0 | SHIELD BATTERY | 1 | 1602- | D | BATTERY 95D31L(TQ8) | ||
| 3 | 8-98238 431-1 | HARNESS CABLE,BATTERY TO STARTE | 1 | 1602- | A | BATTERY 80D26L(TM1) HIGH RIDE SUSPENSION(7YC) (B) | ||
| 3 | 8-98230 233-1 | HARNESS CABLE,BATTERY TO STARTE | 1 | 1602- | A | BATTERY 95D31L(TQ8) HIGH RIDE SUSPENSION(7YC) (B) | ||
| 3 | 8-98238 430-1 | HARNESS CABLE,BATTERY TO STARTE | 1 | 1602- | A | BATTERY 80D26L(TM1) EXC. HIGH RIDE SUSPENSION (B) | ||
| 3 | 8-98238 380-2 | HARNESS CABLE,BATTERY TO STARTE | 1 | 1602- | BCD | BATTERY 80D26L(TM1) (A) | ||
| 228 | 8-98154 328-0 | SHIELD BATTERY | 1 | 1602- | D | BATTERY 80D26L(TM1) | ||
| 76 | 0-91180 108-0 | NUT BATTERY CABLE | 1 | 1602- | A | 01. 062 M8 FLANGE | ||
| 3 | 8-98160 808-3 | HARNESS CABLE,BATTERY TO STARTE | 1 | 1602- | A | BATTERY 95D31L(TQ8) EXC. HIGH RIDE SUSPENSION (B) | ||
| 61 | 8-97260 935-2 | BRACKET BATTERY CABLE | 1 | 1602- | A | |||
| 3 | 8-98160 809-3 | HARNESS CABLE,BATTERY TO STARTE | 1 | 1602- | BCD | BATTERY 95D31L(TQ8) (A) | ||
| 58 | 8-98164 836-0 | BOLT CABLE,BATTERY | 1 | 1602- | ABCD | 02.559 (B) M6X14 W/PL WASHER | ||
| 42 | 0-28650 616-0 | BOLT BRKT,BATTERY CABLE | 1 | 1602- | A | M6X16 FLANGE | ||
| 191 | 0-91180 108-0 | NUT STARTER | 1 | 1602- | ABCD | 01.062 M8 FLANGE |
