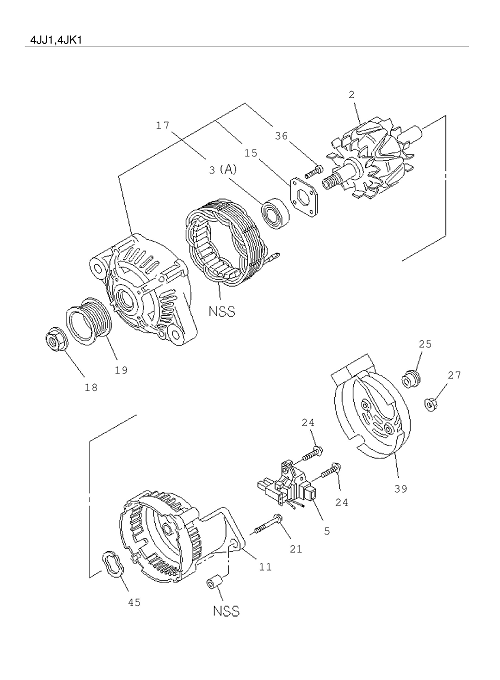

| 24 |
8-97032 313-0 |
|
SCREW RECTIFIER,GEN |
3 |
|
|
|
|
| 19 |
8-97381 612-0 |
|
PULLEY GEN |
|
|
|
|
|
| 3 |
8-98228 965-0 |
|
BEARING ROTOR,GEN |
|
|
|
1 |
(A) |
| 10 |
8-98232 051-0 |
|
RECTIFIER GEN |
|
|
|
|
|
| 2 |
8-97381 607-0 |
|
ROTOR GEN |
|
|
|
|
|
| 15 |
8-94406 982-0 |
|
RETAINER ROTOR,GEN |
1 |
|
|
|
2307 |
| 106 |
8-97381 614-0 |
|
BOLT OIL CONN,VAC PUMP |
|
|
|
|
|
| 25 |
8-98196 584-0 |
|
BUSHING INSULATION TERMINAL |
|
|
|
1 |
|
| 3 |
8-98228 965-0 |
|
BEARING ROTOR,GEN |
1 |
|
|
|
(A) |
| 108 |
8-97330 935-0 |
|
ROTOR VAC PUMP |
|
|
|
|
|
| 15 |
8-94406 982-0 |
|
RETAINER ROTOR,GEN |
|
|
|
1 |
2307 |
| 5 |
8-97378 926-0 |
|
HOLDER BRUSH,GEN |
|
|
|
1 |
|
| 24 |
8-97032 313-0 |
|
SCREW RECTIFIER,GEN |
|
|
|
3 |
|
| 2 |
8-97378 924-0 |
|
ROTOR GEN |
|
|
|
1 |
|
| 39 |
8-97378 928-0 |
|
COVER END,RR COVER,GEN |
|
|
|
1 |
|
| 39 |
8-98232 104-0 |
|
COVER END,RR COVER,GEN |
1 |
|
|
|
|
| 21 |
8-97319 752-0 |
|
BOLT THROUGH,GEN |
4 |
|
|
|
|
| 11 |
8-98242 367-0 |
|
COVER RR,GEN |
|
|
|
1 |
|
| 17 |
8-97313 446-0 |
|
COVER ASM FRT,GEN |
|
|
|
|
|
| 25 |
8-98232 107-0 |
|
BUSHING INSULATION TERMINAL |
1 |
|
|
|
|
| 44 |
8-97941 674-0 |
|
SEAL RR COVER,GEN |
|
|
|
|
|
| 90 |
8-97381 613-0 |
|
PUMP ASM VAC,GEN |
|
|
|
|
|
| 19 |
8-98232 101-0 |
|
PULLEY GEN |
1 |
|
|
|
|
| 24 |
8-97941 562-0 |
|
SCREW RECTIFIER,GEN |
|
|
|
|
|
| 3 |
8-97062 744-0 |
|
BEARING ROTOR,GEN |
|
|
|
|
(B) |
| 27 |
8-97319 772-0 |
|
NUT RECTIFIER,GEN |
|
|
|
3 |
|
| 11 |
8-98232 110-0 |
|
COVER RR,GEN |
1 |
|
|
|
|
| 36 |
8-97142 562-0 |
|
SCREW FRT COVER |
|
|
|
4 |
|
| 54 |
8-98232 109-0 |
|
BOLT RECTIFIER,GEN |
3 |
|
|
|
|
| 109 |
8-94462 883-0 |
|
VANE VAC PUMP |
|
|
|
|
|
| 18 |
8-94123 043-0 |
|
NUT PULLEY,GEN |
|
|
|
1 |
2280 |
| 18 |
8-94123 043-0 |
|
NUT PULLEY,GEN |
1 |
|
|
|
2280 |
| 3 |
8-98159 457-0 |
|
BEARING ROTOR,GEN |
|
|
|
|
(C) |
| 17 |
8-98232 102-0 |
|
COVER ASM FRT,GEN |
1 |
|
|
|
|
| 104 |
8-97941 675-0 |
|
GASKET FRT COVER,VAC PUMP |
|
|
|
|
B) |
| 22 |
8-97313 437-0 |
|
STATOR GEN |
|
|
|
|
|
| 17 |
8-98229 789-0 |
|
COVER ASM FRT,GEN |
|
|
|
1 |
|
| 100 |
8-97381 615-0 |
|
CONNECTOR VAC PUMP |
|
|
|
|
|
| 102 |
8-97330 936-0 |
|
COVER FRT,VAC PUMP |
|
|
|
|
|
| 36 |
8-97142 562-0 |
|
SCREW FRT COVER |
4 |
|
|
|
|
| 19 |
8-98000 022-0 |
|
PULLEY GEN |
|
|
|
1 |
|
| 1 |
8-98232 047-0 |
|
COVER ASM RR,GEN |
|
|
|
|
|
| 99 |
5-19679 002-0 |
|
GASKET VAC PUMP |
|
|
|
|
(A) ID=18 OD=24 |
| 104 |
8-94223 994-0 |
|
GASKET FRT COVER,VAC PUMP |
|
|
|
|
A) |
| 91 |
8-97330 937-0 |
|
BODY VAC PUMP |
|
|
|
|
|
| 99 |
5-19679 003-0 |
|
GASKET VAC PUMP |
|
|
|
|
(B) ID=12 OD=24 |
| 96 |
8-97330 948-0 |
|
VALVE ASM VAC PUMP |
|
|
|
|
|
| 5 |
8-97378 926-0 |
|
HOLDER BRUSH,GEN |
1 |
|
|
|
|
| 21 |
8-97319 752-0 |
|
BOLT THROUGH,GEN |
|
|
|
4 |
|
| 2 |
8-97378 924-0 |
|
ROTOR GEN |
1 |
|
|
|
|
