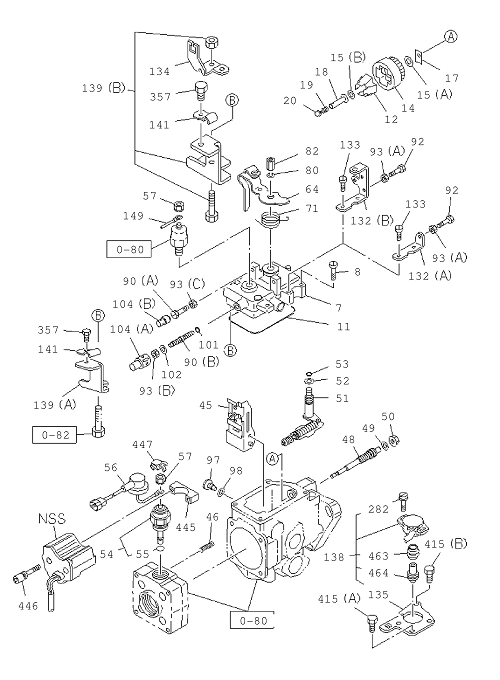

| 464 |
8-97214 520-0 |
|
JOINT POTENTIO METER |
1 |
|
|
|
ANGLE=0 DEGREES ASSY FOR 8973503983 |
| 20 |
8-97163 168-0 |
|
PLUG CLOSING,GOV SLEEVE |
1 |
|
|
|
L= 5.70 ASSY FOR 8973503943 |
| 104 |
8-94316 266-0 |
|
CAP LOCK NUT,ADJ SCREW |
1 |
|
|
|
(B) L=27 . 0 ASSY FOR 8973503943 |
| 93 |
8-94316 277-0 |
|
NUT ADJ SCREW LK,INJ PUMP GOV |
1 |
|
|
|
03.308 (B) ASSY FOR 8973503943 |
| 53 |
8-94227 585-0 |
|
GASKET CONT SHAFT,GOV |
1 |
|
|
|
3306 ASSY FOR 8973503934 |
| 14 |
8-94227 613-0 |
|
HOLDER GOV FLYWEIGHT,INJ PUMP |
1 |
|
|
|
3318 ASSY FOR 8973503983 |
| 82 |
1-15729 006-0 |
|
NUT CONT LEVER FIX,GOV |
1 |
|
|
|
3318 ASSY FOR 8973503983 |
| 464 |
8-97214 516-0 |
|
JOINT POTENTIO METER |
1 |
|
|
|
ANGLE=12 0 DEGREES ASSY FOR 8973503964 |
| 64 |
8-97119 201-0 |
|
LEVER LOAD CONT,GOV |
1 |
|
|
|
STAMP 119 ASSY FOR 8973503943 |
| 20 |
8-94408 530-0 |
|
PLUG CLOSING,GOV SLEEVE |
1 |
|
|
|
L=4.10 ASSY FOR 8973503943 |
| 20 |
8-94428 873-0 |
|
PLUG CLOSING,GOV SLEEVE |
1 |
|
|
|
L=3.20 ASSY FOR 8973503964 |
| 20 |
8-94372 502-0 |
|
PLUG CLOSING,GOV SLEEVE |
1 |
|
|
|
L= 5.50 ASSY FOR 8973503983 |
| 464 |
8-97214 517-0 |
|
JOINT POTENTIO METER |
1 |
|
|
|
ANGLE=13 5 DEGREES ASSY FOR 8973503983 |
| 104 |
8-94316 262-0 |
|
CAP LOCK NUT,ADJ SCREW |
1 |
|
|
|
(A) L=16 . 5 ASSY FOR 8973503943 |
| 20 |
8-94408 525-0 |
|
PLUG CLOSING,GOV SLEEVE |
1 |
|
|
|
L=3.10 ASSY FOR 8973503983 |
| 57 |
8-97138 042-1 |
|
NUT VLV |
2 |
|
|
|
ASSY FOR 8973503964 |
| 7 |
8-97228 602-0 |
|
COVER GOV HSG,INJ PUMP |
1 |
|
|
|
ASSY FOR 8973503934 |
| 45 |
8-97096 689-0 |
|
LEVER ASM GOV,INJ PUMP |
1 |
|
|
|
ASSY FOR 8973503964 |
| 20 |
8-94408 521-0 |
|
PLUG CLOSING,GOV SLEEVE |
1 |
|
|
|
L=2.30 ASSY FOR 8973503943 |
| 20 |
8-94428 876-0 |
|
PLUG CLOSING,GOV SLEEVE |
1 |
|
|
|
L=3.80 ASSY FOR 8973503943 |
| 17 |
8-94227 609-0 |
|
SHIM FLYWEIGHT SLEEVE,GOV |
AR |
|
|
|
T=1.45 3318 ASSY FOR 8973503943 |
| 132 |
8-97328 705-0 |
|
BRACKET ADJ SCREW,GOV |
1 |
|
|
|
(B) ASSY FOR 8973503964 |
| 20 |
8-94408 532-0 |
|
PLUG CLOSING,GOV SLEEVE |
1 |
|
|
|
L=4.50 ASSY FOR 8973503934 |
| 50 |
8-94473 129-0 |
|
NUT GOV SHAFT,INJ PUMP |
1 |
|
|
|
ASSY FOR 8973503934 |
| 20 |
8-94408 527-0 |
|
PLUG CLOSING,GOV SLEEVE |
1 |
|
|
|
L=3.50 ASSY FOR 8973503983 |
| 20 |
8-94408 522-0 |
|
PLUG CLOSING,GOV SLEEVE |
1 |
|
|
|
L=2.50 ASSY FOR 8973503943 |
| 48 |
8-94248 002-0 |
|
SHAFT GOV,INJ PUMP |
1 |
|
|
|
ASSY FOR 8973503964 |
| 20 |
8-94372 501-0 |
|
PLUG CLOSING,GOV SLEEVE |
1 |
|
|
|
L= 5.40 ASSY FOR 8973503934 |
| 64 |
8-97328 707-0 |
|
LEVER LOAD CONT,GOV |
1 |
|
|
|
STAMP 2 80 ASSY FOR 8973503943 |
| 98 |
8-94227 602-0 |
|
GASKET PIVOT BOLT,GOV LEVER |
2 |
|
|
|
3306 ASSY FOR 8973503934 |
| 46 |
8-94473 128-0 |
|
SPRING GOV,INJ PUMP |
2 |
|
|
|
ASSY FOR 8973503983 |
| 20 |
8-94428 874-0 |
|
PLUG CLOSING,GOV SLEEVE |
1 |
|
|
|
L=3 .40 ASSY FOR 8973503964 |
| 14 |
8-94227 613-0 |
|
HOLDER GOV FLYWEIGHT,INJ PUMP |
1 |
|
|
|
3318 ASSY FOR 8973503964 |
| 98 |
8-94227 602-0 |
|
GASKET PIVOT BOLT,GOV LEVER |
2 |
|
|
|
3306 ASSY FOR 8973503943 |
| 7 |
8-97228 602-0 |
|
COVER GOV HSG,INJ PUMP |
1 |
|
|
|
ASSY FOR 8973503943 |
| 20 |
8-97163 167-0 |
|
PLUG CLOSING,GOV SLEEVE |
1 |
|
|
|
L= 5.60 ASSY FOR 8973503964 |
| 20 |
8-94408 533-0 |
|
PLUG CLOSING,GOV SLEEVE |
1 |
|
|
|
L=4.70 ASSY FOR 8973503943 |
| 92 |
8-94426 049-0 |
|
BOLT FULL LOAD STOPPER,GOV |
1 |
|
|
|
01 . 531 ASSY FOR 8973503964 |
| 20 |
8-94408 535-0 |
|
PLUG CLOSING,GOV SLEEVE |
1 |
|
|
|
L=5.10 ASSY FOR 8973503983 |
| 132 |
8-97328 705-0 |
|
BRACKET ADJ SCREW,GOV |
1 |
|
|
|
(B) ASSY FOR 8973503983 |
| 11 |
8-97136 413-0 |
|
GASKET COVER TO HSG,GOV |
1 |
|
|
|
ASSY FOR 8973503934 |
| 464 |
8-97168 232-0 |
|
JOINT POTENTIO METER |
1 |
|
|
|
ANGLE=6 0 DEGREES ASSY FOR 8973503964 |
| 93 |
8-94426 047-1 |
|
NUT ADJ SCREW LK,INJ PUMP GOV |
1 |
|
|
|
(C) ASSY FOR 8973503983 |
| 17 |
8-94227 611-0 |
|
SHIM FLYWEIGHT SLEEVE,GOV |
AR |
|
|
|
03.318 T=1.85 ASSY FOR 8973503934 |
| 464 |
8-97168 234-0 |
|
JOINT POTENTIO METER |
1 |
|
|
|
ANGLE=52.5 DEGREES ASSY FOR 8973503964 |
| 20 |
8-94428 875-0 |
|
PLUG CLOSING,GOV SLEEVE |
1 |
|
|
|
L=3.60 ASSY FOR 8973503943 |
| 64 |
8-98050 935-0 |
|
LEVER LOAD CONT,GOV |
1 |
|
|
|
STAMP 2 79 ASSY FOR 8973503943 |
| 71 |
8-94313 218-0 |
|
SPRING CONT LEVER,GOV |
1 |
|
|
|
3308 ASSY FOR 8973503943 |
| 20 |
8-94428 870-0 |
|
PLUG CLOSING,GOV SLEEVE |
1 |
|
|
|
L=2.60 ASSY FOR 8973503983 |
| 7 |
8-97368 267-0 |
|
COVER GOV HSG,INJ PUMP |
1 |
|
|
|
ASSY FOR 8973503964 |
| 48 |
8-94248 002-0 |
|
SHAFT GOV,INJ PUMP |
1 |
|
|
|
ASSY FOR 8973503983 |
| 93 |
8-94316 277-0 |
|
NUT ADJ SCREW LK,INJ PUMP GOV |
1 |
|
|
|
03.308 (B) ASSY FOR 8973503983 |
| 80 |
9-09150 506-0 |
|
WASHER LK,CONT LEVER,GOV |
1 |
|
|
|
00.206 ID=6.1 ASSY FOR 8973503943 |
| 20 |
8-97163 167-0 |
|
PLUG CLOSING,GOV SLEEVE |
1 |
|
|
|
L= 5.60 ASSY FOR 8973503934 |
| 415 |
8-97020 720-0 |
|
BOLT BRKT TO HOUSING |
1 |
|
|
|
(B) ASSY FOR 8973503983 |
| 464 |
8-97214 518-0 |
|
JOINT POTENTIO METER |
1 |
|
|
|
ANGLE=150 DEGREES ASSY FOR 8973503983 |
| 50 |
8-94473 129-0 |
|
NUT GOV SHAFT,INJ PUMP |
1 |
|
|
|
ASSY FOR 8973503964 |
| 141 |
8-97182 233-0 |
|
PLATE ASM PIPE BRKT |
1 |
|
|
|
ASSY FOR 8973503934 |
| 49 |
8-94227 606-0 |
|
GASKET GOV SHAFT,INJ PUMP |
1 |
|
|
|
03 .318 ASSY FOR 8973503964 |
| 20 |
8-94428 876-0 |
|
PLUG CLOSING,GOV SLEEVE |
1 |
|
|
|
L=3.80 ASSY FOR 8973503964 |
| 20 |
8-94408 533-0 |
|
PLUG CLOSING,GOV SLEEVE |
1 |
|
|
|
L=4.70 ASSY FOR 8973503964 |
| 93 |
1-15729 006-0 |
|
NUT ADJ SCREW LK,INJ PUMP GOV |
1 |
|
|
|
03.318 (A) ASSY FOR 8973503983 |
| 20 |
8-94372 501-0 |
|
PLUG CLOSING,GOV SLEEVE |
1 |
|
|
|
L= 5.40 ASSY FOR 8973503943 |
| 54 |
8-94242 275-0 |
|
VALVE MAG,ENG STOP,INJ PUMP |
1 |
|
|
|
3314 ASSY FOR 8973503934 |
| 53 |
8-94227 585-0 |
|
GASKET CONT SHAFT,GOV |
1 |
|
|
|
3306 ASSY FOR 8973503983 |
| 7 |
8-97368 267-0 |
|
COVER GOV HSG,INJ PUMP |
1 |
|
|
|
ASSY FOR 8973503983 |
| 55 |
8-94239 373-0 |
|
GASKET MAG VLV,INJ PUMP |
1 |
|
|
|
3318 ASSY FOR 8973503934 |
| 11 |
8-97136 413-0 |
|
GASKET COVER TO HSG,GOV |
1 |
|
|
|
ASSY FOR 8973503964 |
| 50 |
8-94473 129-0 |
|
NUT GOV SHAFT,INJ PUMP |
1 |
|
|
|
ASSY FOR 8973503943 |
| 20 |
8-94408 533-0 |
|
PLUG CLOSING,GOV SLEEVE |
1 |
|
|
|
L=4.70 ASSY FOR 8973503983 |
| 20 |
8-94372 502-0 |
|
PLUG CLOSING,GOV SLEEVE |
1 |
|
|
|
L= 5.50 ASSY FOR 8973503943 |
| 139 |
8-97368 179-0 |
|
BRACKET INJ PUMP |
1 |
|
|
|
(B) ASSY FOR 8973503983 |
| 20 |
8-94408 526-0 |
|
PLUG CLOSING,GOV SLEEVE |
1 |
|
|
|
L=3.30 ASSY FOR 8973503964 |
| 20 |
8-94428 875-0 |
|
PLUG CLOSING,GOV SLEEVE |
1 |
|
|
|
L=3.60 ASSY FOR 8973503934 |
| 20 |
8-94408 521-0 |
|
PLUG CLOSING,GOV SLEEVE |
1 |
|
|
|
L=2 .30 ASSY FOR 8973503934 |
| 90 |
8-94316 276-0 |
|
SCREW FULL LOAD ADJ,GOV |
1 |
|
|
|
(B) L=57 . 0 ASSY FOR 8973503983 |
| 82 |
1-15729 006-0 |
|
NUT CONT LEVER FIX,GOV |
1 |
|
|
|
3318 ASSY FOR 8973503934 |
| 464 |
8-97168 229-0 |
|
JOINT POTENTIO METER |
1 |
|
|
|
ANGLE=15 DEGREES ASSY FOR 8973503983 |
| 17 |
8-94227 608-0 |
|
SHIM FLYWEIGHT SLEEVE,GOV |
AR |
|
|
|
T=1.25 3318 ASSY FOR 8973503943 |
| 20 |
8-97163 170-0 |
|
PLUG CLOSING,GOV SLEEVE |
1 |
|
|
|
L= 5.90 ASSY FOR 8973503983 |
| 104 |
8-94316 264-0 |
|
CAP LOCK NUT,ADJ SCREW |
1 |
|
|
|
(B) L=21 . 0 ASSY FOR 8973503983 |
| 98 |
8-94227 602-0 |
|
GASKET PIVOT BOLT,GOV LEVER |
2 |
|
|
|
3306 ASSY FOR 8973503983 |
| 17 |
8-94231 123-0 |
|
SHIM FLYWEIGHT SLEEVE,GOV |
AR |
|
|
|
03.318 T=1.15 ASSY FOR 8973503964 |
| 17 |
8-94231 123-0 |
|
SHIM FLYWEIGHT SLEEVE,GOV |
AR |
|
|
|
03.318 T=1.15 ASSY FOR 8973503943 |
| 20 |
8-94428 870-0 |
|
PLUG CLOSING,GOV SLEEVE |
1 |
|
|
|
L=2.60 ASSY FOR 8973503934 |
| 49 |
8-94227 606-0 |
|
GASKET GOV SHAFT,INJ PUMP |
1 |
|
|
|
03 .318 ASSY FOR 8973503934 |
| 19 |
8-94408 519-0 |
|
CAP GOV SLEEVE,INJ PUMP |
1 |
|
|
|
ASSY FOR 8973503943 |
| 20 |
8-94372 499-0 |
|
PLUG CLOSING,GOV SLEEVE |
1 |
|
|
|
L= 5.20 ASSY FOR 8973503983 |
| 141 |
8-97182 233-0 |
|
PLATE ASM PIPE BRKT |
1 |
|
|
|
ASSY FOR 8973503964 |
| 20 |
8-94408 521-0 |
|
PLUG CLOSING,GOV SLEEVE |
1 |
|
|
|
L=2.30 ASSY FOR 8973503964 |
| 93 |
1-15729 006-0 |
|
NUT ADJ SCREW LK,INJ PUMP GOV |
1 |
|
|
|
03.318 (A) ASSY FOR 8973503964 |
| 20 |
8-94428 874-0 |
|
PLUG CLOSING,GOV SLEEVE |
1 |
|
|
|
L=3 .40 ASSY FOR 8973503943 |
| 20 |
8-94428 872-0 |
|
PLUG CLOSING,GOV SLEEVE |
1 |
|
|
|
L=3.00 ASSY FOR 8973503964 |
| 20 |
8-97163 168-0 |
|
PLUG CLOSING,GOV SLEEVE |
1 |
|
|
|
L= 5.70 ASSY FOR 8973503964 |
| 357 |
8-94174 987-0 |
|
BOLT PLATE,GOV |
1 |
|
|
|
ASSY FOR 8973503983 |
| 71 |
8-94313 218-0 |
|
SPRING CONT LEVER,GOV |
1 |
|
|
|
3308 ASSY FOR 8973503934 |
| 20 |
8-94408 532-0 |
|
PLUG CLOSING,GOV SLEEVE |
1 |
|
|
|
L=4.50 ASSY FOR 8973503964 |
| 20 |
8-94372 501-0 |
|
PLUG CLOSING,GOV SLEEVE |
1 |
|
|
|
L= 5.40 ASSY FOR 8973503983 |
| 20 |
8-94372 499-0 |
|
PLUG CLOSING,GOV SLEEVE |
1 |
|
|
|
L= 5.20 ASSY FOR 8973503964 |
| 20 |
8-94428 873-0 |
|
PLUG CLOSING,GOV SLEEVE |
1 |
|
|
|
L=3 .20 ASSY FOR 8973503934 |
| 20 |
8-97163 168-0 |
|
PLUG CLOSING,GOV SLEEVE |
1 |
|
|
|
L= 5.70 ASSY FOR 8973503934 |
| 463 |
8-97148 144-0 |
|
BOOT POTENTIO METER |
1 |
|
|
|
ASSY FOR 8973503983 |
| 8 |
8-94227 636-0 |
|
BOLT GOV COVER,INJ PUMP |
4 |
|
|
|
03 .330 ASSY FOR 8973503964 |
| 17 |
8-94227 609-0 |
|
SHIM FLYWEIGHT SLEEVE,GOV |
AR |
|
|
|
T=1.45 3318 ASSY FOR 8973503964 |
| 56 |
8-94470 582-0 |
|
WIRE LEAD,MAG VLV,INJ PUMP |
1 |
|
|
|
ASSY FOR 8973503964 |
| 15 |
8-94408 517-0 |
|
WASHER LK,FLYWEIGHT FIX,GOV |
1 |
|
|
|
(B) ASSY FOR 8973503934 |
| 57 |
8-97138 042-1 |
|
NUT VLV |
2 |
|
|
|
ASSY FOR 8973503983 |
| 134 |
8-97322 854-0 |
|
BRACKET CONT CABLE,GOV |
1 |
|
|
|
ASSY FOR 8973503943 |
| 15 |
8-94227 612-0 |
|
WASHER LK,FLYWEIGHT FIX,GOV |
1 |
|
|
|
(A) ASSY FOR 8973503943 |
| 20 |
8-94408 531-0 |
|
PLUG CLOSING,GOV SLEEVE |
1 |
|
|
|
L=4.30 ASSY FOR 8973503964 |
| 20 |
8-94428 878-0 |
|
PLUG CLOSING,GOV SLEEVE |
1 |
|
|
|
L=4.20 ASSY FOR 8973503943 |
| 19 |
8-94408 519-0 |
|
CAP GOV SLEEVE,INJ PUMP |
1 |
|
|
|
ASSY FOR 8973503983 |
| 51 |
8-97328 706-0 |
|
SHAFT LOAD CONT LEVER,GOV |
1 |
|
|
|
ASSY FOR 8973503983 |
| 48 |
8-94248 002-0 |
|
SHAFT GOV,INJ PUMP |
1 |
|
|
|
ASSY FOR 8973503934 |
| 20 |
8-94372 500-0 |
|
PLUG CLOSING,GOV SLEEVE |
1 |
|
|
|
L= 5.30 ASSY FOR 8973503943 |
| 20 |
8-94408 526-0 |
|
PLUG CLOSING,GOV SLEEVE |
1 |
|
|
|
L=3 .30 ASSY FOR 8973503934 |
| 20 |
8-94428 871-0 |
|
PLUG CLOSING,GOV SLEEVE |
1 |
|
|
|
L=2.80 ASSY FOR 8973503964 |
| 20 |
8-94428 882-0 |
|
PLUG CLOSING,GOV SLEEVE |
1 |
|
|
|
L= 5.00 ASSY FOR 8973503943 |
| 20 |
8-97163 169-0 |
|
PLUG CLOSING,GOV SLEEVE |
1 |
|
|
|
L= 5.80 ASSY FOR 8973503983 |
| 17 |
8-94227 608-0 |
|
SHIM FLYWEIGHT SLEEVE,GOV |
AR |
|
|
|
T=1.25 3318 ASSY FOR 8973503934 |
| 20 |
8-94408 524-0 |
|
PLUG CLOSING,GOV SLEEVE |
1 |
|
|
|
L=2.90 ASSY FOR 8973503943 |
| 93 |
8-94316 277-0 |
|
NUT ADJ SCREW LK,INJ PUMP GOV |
1 |
|
|
|
03.308 (B) ASSY FOR 8973503964 |
| 90 |
8-94316 275-0 |
|
SCREW FULL LOAD ADJ,GOV |
1 |
|
|
|
(B) L=55 . 0 ASSY FOR 8973503943 |
| 20 |
8-97163 167-0 |
|
PLUG CLOSING,GOV SLEEVE |
1 |
|
|
|
L= 5.60 ASSY FOR 8973503943 |
| 20 |
8-94408 529-0 |
|
PLUG CLOSING,GOV SLEEVE |
1 |
|
|
|
L=3.90 ASSY FOR 8973503943 |
| 20 |
8-94408 525-0 |
|
PLUG CLOSING,GOV SLEEVE |
1 |
|
|
|
L=3.10 ASSY FOR 8973503934 |
| 20 |
8-94372 500-0 |
|
PLUG CLOSING,GOV SLEEVE |
1 |
|
|
|
L= 5.30 ASSY FOR 8973503983 |
| 20 |
8-94408 523-0 |
|
PLUG CLOSING,GOV SLEEVE |
1 |
|
|
|
L=2.70 ASSY FOR 8973503934 |
| 20 |
8-94428 876-0 |
|
PLUG CLOSING,GOV SLEEVE |
1 |
|
|
|
L=3.80 ASSY FOR 8973503983 |
| 20 |
8-94408 530-0 |
|
PLUG CLOSING,GOV SLEEVE |
1 |
|
|
|
L=4.10 ASSY FOR 8973503934 |
| 20 |
8-94428 880-0 |
|
PLUG CLOSING,GOV SLEEVE |
1 |
|
|
|
L=4.60 ASSY FOR 8973503964 |
| 55 |
8-94239 373-0 |
|
GASKET MAG VLV,INJ PUMP |
1 |
|
|
|
3318 ASSY FOR 8973503964 |
| 20 |
8-94408 535-0 |
|
PLUG CLOSING,GOV SLEEVE |
1 |
|
|
|
L=5.10 ASSY FOR 8973503964 |
| 20 |
8-94408 530-0 |
|
PLUG CLOSING,GOV SLEEVE |
1 |
|
|
|
L=4.10 ASSY FOR 8973503983 |
| 104 |
8-94316 263-0 |
|
CAP LOCK NUT,ADJ SCREW |
1 |
|
|
|
(B) L=18 . 0 ASSY FOR 8973503964 |
| 20 |
8-94408 524-0 |
|
PLUG CLOSING,GOV SLEEVE |
1 |
|
|
|
L=2.90 ASSY FOR 8973503934 |
| 135 |
8-97368 270-0 |
|
BRACKET POTENTIO METER |
1 |
|
|
|
ASSY FOR 8973503983 |
| 82 |
1-15729 006-0 |
|
NUT CONT LEVER FIX,GOV |
1 |
|
|
|
3318 ASSY FOR 8973503964 |
| 464 |
8-97214 516-0 |
|
JOINT POTENTIO METER |
1 |
|
|
|
ANGLE=12 0 DEGREES ASSY FOR 8973503983 |
| 90 |
8-94316 274-0 |
|
SCREW FULL LOAD ADJ,GOV |
1 |
|
|
|
(B) L=53 . 0 ASSY FOR 8973503983 |
| 104 |
8-94316 263-0 |
|
CAP LOCK NUT,ADJ SCREW |
1 |
|
|
|
(B) L=18 . 0 ASSY FOR 8973503943 |
| 20 |
8-94428 877-0 |
|
PLUG CLOSING,GOV SLEEVE |
1 |
|
|
|
L=4.00 ASSY FOR 8973503964 |
| 149 |
8-94316 278-0 |
|
WIRE VLV |
1 |
|
|
|
ASSY FOR 8973503943 |
| 51 |
8-98050 923-0 |
|
SHAFT LOAD CONT LEVER,GOV |
1 |
|
|
|
ASSY FOR 8973503964 |
| 464 |
8-97214 519-0 |
|
JOINT POTENTIO METER |
1 |
|
|
|
ANGLE=16 5 DEGREES ASSY FOR 8973503983 |
| 104 |
8-94316 265-0 |
|
CAP LOCK NUT,ADJ SCREW |
1 |
|
|
|
(B) L=24 . 0 ASSY FOR 8973503983 |
| 139 |
8-97368 179-0 |
|
BRACKET INJ PUMP |
1 |
|
|
|
(B) ASSY FOR 8973503943 |
| 93 |
1-15729 006-0 |
|
NUT ADJ SCREW LK,INJ PUMP GOV |
1 |
|
|
|
03.318 (A) ASSY FOR 8973503934 |
| 51 |
8-98114 845-0 |
|
SHAFT LOAD CONT LEVER,GOV |
1 |
|
|
|
ASSY FOR 8973503934 |
| 48 |
8-94248 002-0 |
|
SHAFT GOV,INJ PUMP |
1 |
|
|
|
ASSY FOR 8973503943 |
| 15 |
8-94227 612-0 |
|
WASHER LK,FLYWEIGHT FIX,GOV |
1 |
|
|
|
(A) ASSY FOR 8973503983 |
| 20 |
8-94428 877-0 |
|
PLUG CLOSING,GOV SLEEVE |
1 |
|
|
|
L=4.00 ASSY FOR 8973503934 |
| 20 |
8-94428 880-0 |
|
PLUG CLOSING,GOV SLEEVE |
1 |
|
|
|
L=4.60 ASSY FOR 8973503943 |
| 464 |
8-97368 271-0 |
|
JOINT POTENTIO METER |
1 |
|
|
|
ANGLE=7.5 DEGREES ASSY FOR 8973503983 |
| 8 |
8-94227 636-0 |
|
BOLT GOV COVER,INJ PUMP |
4 |
|
|
|
03 .330 ASSY FOR 8973503983 |
| 17 |
8-94227 608-0 |
|
SHIM FLYWEIGHT SLEEVE,GOV |
AR |
|
|
|
T= 1.25 03 .318 ASSY FOR 8973503964 |
| 133 |
8-94313 267-0 |
|
BOLT BRKT FIX,GOV |
2 |
|
|
|
M6X12 ASSY FOR 8973503943 |
| 20 |
8-94428 870-0 |
|
PLUG CLOSING,GOV SLEEVE |
1 |
|
|
|
L=2.60 ASSY FOR 8973503964 |
| 138 |
8-97368 269-0 |
|
POTENTIO METER |
1 |
|
|
|
ASSY FOR 8973503964 |
| 20 |
8-94408 520-0 |
|
PLUG CLOSING,GOV SLEEVE |
1 |
|
|
|
L=2.10 ASSY FOR 8973503983 |
| 46 |
8-94473 128-0 |
|
SPRING GOV,INJ PUMP |
2 |
|
|
|
ASSY FOR 8973503964 |
| 20 |
8-94428 876-0 |
|
PLUG CLOSING,GOV SLEEVE |
1 |
|
|
|
L=3.80 ASSY FOR 8973503934 |
| 20 |
8-94408 525-0 |
|
PLUG CLOSING,GOV SLEEVE |
1 |
|
|
|
L=3.10 ASSY FOR 8973503943 |
| 149 |
8-94316 278-0 |
|
WIRE VLV |
1 |
|
|
|
ASSY FOR 8973503983 |
| 92 |
8-94426 049-0 |
|
BOLT FULL LOAD STOPPER,GOV |
1 |
|
|
|
01 . 531 ASSY FOR 8973503983 |
| 133 |
8-94313 267-0 |
|
BOLT BRKT FIX,GOV |
2 |
|
|
|
M6X12 ASSY FOR 8973503934 |
| 17 |
8-94227 611-0 |
|
SHIM FLYWEIGHT SLEEVE,GOV |
AR |
|
|
|
03.318 T=1.85 ASSY FOR 8973503964 |
| 93 |
8-94316 277-0 |
|
NUT ADJ SCREW LK,INJ PUMP GOV |
1 |
|
|
|
03.308 (B) ASSY FOR 8973503934 |
| 17 |
8-94227 607-0 |
|
SHIM FLYWEIGHT SLEEVE,GOV |
AR |
|
|
|
T=1.05 03 .318 ASSY FOR 8973503943 |
| 80 |
9-09150 506-0 |
|
WASHER LK,CONT LEVER,GOV |
1 |
|
|
|
00.206 ID=6.1 ASSY FOR 8973503964 |
| 64 |
8-97119 201-0 |
|
LEVER LOAD CONT,GOV |
1 |
|
|
|
STAMP 119 ASSY FOR 8973503964 |
| 20 |
8-94408 531-0 |
|
PLUG CLOSING,GOV SLEEVE |
1 |
|
|
|
L=4 .30 ASSY FOR 8973503983 |
| 49 |
8-94227 606-0 |
|
GASKET GOV SHAFT,INJ PUMP |
1 |
|
|
|
03 .318 ASSY FOR 8973503943 |
| 64 |
8-97119 200-0 |
|
LEVER LOAD CONT,GOV |
1 |
|
|
|
STAMP 118 ASSY FOR 8973503964 |
| 92 |
8-94426 049-0 |
|
BOLT FULL LOAD STOPPER,GOV |
1 |
|
|
|
01 . 531 ASSY FOR 8973503934 |
| 20 |
8-94428 882-0 |
|
PLUG CLOSING,GOV SLEEVE |
1 |
|
|
|
L= 5.00 ASSY FOR 8973503964 |
| 17 |
8-94227 607-0 |
|
SHIM FLYWEIGHT SLEEVE,GOV |
AR |
|
|
|
T=1.05 03 .318 ASSY FOR 8973503983 |
| 104 |
8-94316 263-0 |
|
CAP LOCK NUT,ADJ SCREW |
1 |
|
|
|
(B) L=18 . 0 ASSY FOR 8973503983 |
| 17 |
8-94231 126-0 |
|
SHIM FLYWEIGHT SLEEVE,GOV |
AR |
|
|
|
03 .318 T=1.75 ASSY FOR 8973503934 |
| 93 |
8-94426 047-1 |
|
NUT ADJ SCREW LK,INJ PUMP GOV |
1 |
|
|
|
(C) ASSY FOR 8973503943 |
| 20 |
8-94408 520-0 |
|
PLUG CLOSING,GOV SLEEVE |
1 |
|
|
|
L=2.10 ASSY FOR 8973503964 |
| 14 |
8-94227 613-0 |
|
HOLDER GOV FLYWEIGHT,INJ PUMP |
1 |
|
|
|
3318 ASSY FOR 8973503934 |
| 101 |
8-94227 598-0 |
|
GASKET ADJ SPRING CAPSULE,GOV |
1 |
|
|
|
ASSY FOR 8973503983 |
| 20 |
8-94408 532-0 |
|
PLUG CLOSING,GOV SLEEVE |
1 |
|
|
|
L=4.50 ASSY FOR 8973503983 |
| 20 |
8-94372 499-0 |
|
PLUG CLOSING,GOV SLEEVE |
1 |
|
|
|
L= 5.20 ASSY FOR 8973503934 |
| 90 |
8-94426 049-0 |
|
SCREW FULL LOAD ADJ,GOV |
1 |
|
|
|
01 . 531 (A) ASSY FOR 8973503983 |
| 464 |
8-97168 231-0 |
|
JOINT POTENTIO METER |
1 |
|
|
|
ANGLE=4 5 DEGREES ASSY FOR 8973503983 |
| 17 |
8-94227 609-0 |
|
SHIM FLYWEIGHT SLEEVE,GOV |
AR |
|
|
|
T=1.45 3318 ASSY FOR 8973503983 |
| 20 |
8-94428 868-0 |
|
PLUG CLOSING,GOV SLEEVE |
1 |
|
|
|
L=2.20 ASSY FOR 8973503934 |
| 104 |
8-94316 262-0 |
|
CAP LOCK NUT,ADJ SCREW |
1 |
|
|
|
(A) L=16 . 5 ASSY FOR 8973503983 |
| 138 |
8-97368 269-0 |
|
POTENTIO METER |
1 |
|
|
|
ASSY FOR 8973503983 |
| 15 |
8-94227 612-0 |
|
WASHER LK,FLYWEIGHT FIX,GOV |
1 |
|
|
|
(A) ASSY FOR 8973503934 |
| 141 |
8-97182 233-0 |
|
PLATE ASM PIPE BRKT |
1 |
|
|
|
ASSY FOR 8973503983 |
| 133 |
8-94313 267-0 |
|
BOLT BRKT FIX,GOV |
2 |
|
|
|
M6X12 ASSY FOR 8973503983 |
| 20 |
8-94408 534-0 |
|
PLUG CLOSING,GOV SLEEVE |
1 |
|
|
|
L=4.90 ASSY FOR 8973503964 |
| 20 |
8-94408 532-0 |
|
PLUG CLOSING,GOV SLEEVE |
1 |
|
|
|
L=4.50 ASSY FOR 8973503943 |
| 71 |
8-94313 218-0 |
|
SPRING CONT LEVER,GOV |
1 |
|
|
|
3308 ASSY FOR 8973503983 |
| 17 |
8-94231 125-0 |
|
SHIM FLYWEIGHT SLEEVE,GOV |
AR |
|
|
|
03 .318 T=1.55 ASSY FOR 8973503983 |
| 464 |
8-97168 236-0 |
|
JOINT POTENTIO METER |
1 |
|
|
|
ANGLE=3 7.5 DEGREES ASSY FOR 8973503964 |
| 64 |
8-97119 200-0 |
|
LEVER LOAD CONT,GOV |
1 |
|
|
|
STAMP 118 ASSY FOR 8973503934 |
| 98 |
8-94227 602-0 |
|
GASKET PIVOT BOLT,GOV LEVER |
2 |
|
|
|
3306 ASSY FOR 8973503964 |
| 20 |
8-94408 522-0 |
|
PLUG CLOSING,GOV SLEEVE |
1 |
|
|
|
L=2.50 ASSY FOR 8973503983 |
| 90 |
8-94316 276-0 |
|
SCREW FULL LOAD ADJ,GOV |
1 |
|
|
|
(B) L=57.0 ASSY FOR 8973503964 |
| 19 |
8-94408 519-0 |
|
CAP GOV SLEEVE,INJ PUMP |
1 |
|
|
|
ASSY FOR 8973503934 |
| 90 |
8-94426 049-0 |
|
SCREW FULL LOAD ADJ,GOV |
1 |
|
|
|
01 . 531 (A) ASSY FOR 8973503943 |
| 20 |
8-94428 875-0 |
|
PLUG CLOSING,GOV SLEEVE |
1 |
|
|
|
L=3.60 ASSY FOR 8973503964 |
| 82 |
1-15729 006-0 |
|
NUT CONT LEVER FIX,GOV |
1 |
|
|
|
3318 ASSY FOR 8973503943 |
| 357 |
8-94174 987-0 |
|
BOLT PLATE,GOV |
1 |
|
|
|
ASSY FOR 8973503934 |
| 20 |
8-94428 872-0 |
|
PLUG CLOSING,GOV SLEEVE |
1 |
|
|
|
L=3.00 ASSY FOR 8973503934 |
| 17 |
8-94231 126-0 |
|
SHIM FLYWEIGHT SLEEVE,GOV |
AR |
|
|
|
03.318 T=1.75 ASSY FOR 8973503983 |
| 45 |
8-97096 689-0 |
|
LEVER ASM GOV,INJ PUMP |
1 |
|
|
|
ASSY FOR 8973503983 |
| 14 |
8-94227 613-0 |
|
HOLDER GOV FLYWEIGHT,INJ PUMP |
1 |
|
|
|
3318 ASSY FOR 8973503943 |
| 20 |
8-94372 500-0 |
|
PLUG CLOSING,GOV SLEEVE |
1 |
|
|
|
L= 5.30 ASSY FOR 8973503934 |
| 135 |
8-97368 270-0 |
|
BRACKET POTENTIO METER |
1 |
|
|
|
ASSY FOR 8973503964 |
| 90 |
8-94316 275-0 |
|
SCREW FULL LOAD ADJ,GOV |
1 |
|
|
|
(B) L=55 . 0 ASSY FOR 8973503934 |
| 80 |
9-09150 506-0 |
|
WASHER LK,CONT LEVER,GOV |
1 |
|
|
|
00.206 ID=6.1 ASSY FOR 8973503934 |
| 464 |
8-97214 514-0 |
|
JOINT POTENTIO METER |
1 |
|
|
|
ANGLE=90 DEGREES ASSY FOR 8973503983 |
| 20 |
8-97163 170-0 |
|
PLUG CLOSING,GOV SLEEVE |
1 |
|
|
|
L= 5.90 ASSY FOR 8973503943 |
| 15 |
8-94408 517-0 |
|
WASHER LK,FLYWEIGHT FIX,GOV |
1 |
|
|
|
(B) ASSY FOR 8973503983 |
| 20 |
8-94408 521-0 |
|
PLUG CLOSING,GOV SLEEVE |
1 |
|
|
|
L=2 .30 ASSY FOR 8973503983 |
| 71 |
8-94313 218-0 |
|
SPRING CONT LEVER,GOV |
1 |
|
|
|
3308 ASSY FOR 8973503964 |
| 20 |
8-94428 882-0 |
|
PLUG CLOSING,GOV SLEEVE |
1 |
|
|
|
L= 5.00 ASSY FOR 8973503934 |
| 20 |
8-94428 877-0 |
|
PLUG CLOSING,GOV SLEEVE |
1 |
|
|
|
L=4.00 ASSY FOR 8973503983 |
| 20 |
8-94428 878-0 |
|
PLUG CLOSING,GOV SLEEVE |
1 |
|
|
|
L=4 .20 ASSY FOR 8973503983 |
| 20 |
8-97163 169-0 |
|
PLUG CLOSING,GOV SLEEVE |
1 |
|
|
|
L= 5.80 ASSY FOR 8973503943 |
| 132 |
8-94457 165-1 |
|
BRACKET ADJ SCREW,GOV |
1 |
|
|
|
(A) ASSY FOR 8973503943 |
| 90 |
8-94316 274-0 |
|
SCREW FULL LOAD ADJ,GOV |
1 |
|
|
|
(B) L=53 . 0 ASSY FOR 8973503964 |
| 52 |
8-94227 590-0 |
|
WASHER CONT SHAFT,GOV |
1 |
|
|
|
ASSY FOR 8973503983 |
| 90 |
8-94316 274-0 |
|
SCREW FULL LOAD ADJ,GOV |
1 |
|
|
|
(B) L=53 . 0 ASSY FOR 8973503934 |
| 20 |
8-94428 868-0 |
|
PLUG CLOSING,GOV SLEEVE |
1 |
|
|
|
L=2.20 ASSY FOR 8973503964 |
| 46 |
8-94473 128-0 |
|
SPRING GOV,INJ PUMP |
2 |
|
|
|
ASSY FOR 8973503943 |
| 54 |
8-94242 275-0 |
|
VALVE MAG,ENG STOP,INJ PUMP |
1 |
|
|
|
3314 ASSY FOR 8973503964 |
| 97 |
8-94227 601-0 |
|
BOLT PIVOT,GOV LEVER |
2 |
|
|
|
ASSY FOR 8973503943 |
| 20 |
8-94428 869-0 |
|
PLUG CLOSING,GOV SLEEVE |
1 |
|
|
|
L=2.40 ASSY FOR 8973503983 |
| 20 |
8-94408 523-0 |
|
PLUG CLOSING,GOV SLEEVE |
1 |
|
|
|
L=2.70 ASSY FOR 8973503983 |
| 52 |
8-94227 590-0 |
|
WASHER CONT SHAFT,GOV |
1 |
|
|
|
ASSY FOR 8973503934 |
| 20 |
8-94428 869-0 |
|
PLUG CLOSING,GOV SLEEVE |
1 |
|
|
|
L=2.40 ASSY FOR 8973503943 |
| 20 |
8-94428 873-0 |
|
PLUG CLOSING,GOV SLEEVE |
1 |
|
|
|
L=3 .20 ASSY FOR 8973503983 |
| 90 |
8-94316 274-0 |
|
SCREW FULL LOAD ADJ,GOV |
1 |
|
|
|
(B) L=53 . 0 ASSY FOR 8973503943 |
| 20 |
8-94408 528-0 |
|
PLUG CLOSING,GOV SLEEVE |
1 |
|
|
|
L=3.70 ASSY FOR 8973503943 |
| 20 |
8-94408 533-0 |
|
PLUG CLOSING,GOV SLEEVE |
1 |
|
|
|
L=4.70 ASSY FOR 8973503934 |
| 132 |
8-94457 165-1 |
|
BRACKET ADJ SCREW,GOV |
1 |
|
|
|
(A) ASSY FOR 8973503934 |
| 464 |
8-97168 235-0 |
|
JOINT POTENTIO METER |
1 |
|
|
|
ANGLE=4 8.5 DEGREES ASSY FOR 8973503964 |
| 20 |
8-94408 535-0 |
|
PLUG CLOSING,GOV SLEEVE |
1 |
|
|
|
L=5.10 ASSY FOR 8973503934 |
| 90 |
8-94316 275-0 |
|
SCREW FULL LOAD ADJ,GOV |
1 |
|
|
|
(B) L=55 . 0 ASSY FOR 8973503964 |
| 20 |
8-94408 528-0 |
|
PLUG CLOSING,GOV SLEEVE |
1 |
|
|
|
L=3.70 ASSY FOR 8973503934 |
| 20 |
8-94408 528-0 |
|
PLUG CLOSING,GOV SLEEVE |
1 |
|
|
|
L=3.70 ASSY FOR 8973503964 |
| 57 |
8-97138 042-1 |
|
NUT VLV |
2 |
|
|
|
ASSY FOR 8973503943 |
| 464 |
8-97168 233-0 |
|
JOINT POTENTIO METER |
1 |
|
|
|
ANGLE=75 DEGREES ASSY FOR 8973503983 |
| 464 |
8-97168 233-0 |
|
JOINT POTENTIO METER |
1 |
|
|
|
ANGLE=75 DEGREES ASSY FOR 8973503964 |
| 464 |
8-97168 230-0 |
|
JOINT POTENTIO METER |
1 |
|
|
|
ANGLE=3 0 DEGREES ASSY FOR 8973503983 |
| 93 |
1-15729 006-0 |
|
NUT ADJ SCREW LK,INJ PUMP GOV |
1 |
|
|
|
03.318 (A) ASSY FOR 8973503943 |
| 17 |
8-94231 124-0 |
|
SHIM FLYWEIGHT SLEEVE,GOV |
AR |
|
|
|
03 .318 T= 1.35 ASSY FOR 8973503943 |
| 357 |
8-94174 987-0 |
|
BOLT PLATE,GOV |
1 |
|
|
|
ASSY FOR 8973503943 |
| 464 |
8-97168 232-0 |
|
JOINT POTENTIO METER |
1 |
|
|
|
ANGLE=6 0 DEGREES ASSY FOR 8973503983 |
| 464 |
8-97168 234-0 |
|
JOINT POTENTIO METER |
1 |
|
|
|
ANGLE=52.5 DEGREES ASSY FOR 8973503983 |
| 464 |
8-97168 229-0 |
|
JOINT POTENTIO METER |
1 |
|
|
|
ANGLE=15 DEGREES ASSY FOR 8973503964 |
| 57 |
8-97138 042-1 |
|
NUT VLV |
2 |
|
|
|
ASSY FOR 8973503934 |
| 104 |
8-94316 264-0 |
|
CAP LOCK NUT,ADJ SCREW |
1 |
|
|
|
(B) L=21 . 0 ASSY FOR 8973503934 |
| 20 |
8-94408 534-0 |
|
PLUG CLOSING,GOV SLEEVE |
1 |
|
|
|
L=4.90 ASSY FOR 8973503943 |
| 102 |
8-94227 593-0 |
|
WASHER FULL LOAD ADJ SCREW,GOV |
1 |
|
|
|
ASSY FOR 8973503943 |
| 12 |
8-97328 711-0 |
|
FLYWEIGHT ASM GOV |
1 |
|
|
|
ASSY FOR 8973503983 |
| 20 |
8-94408 524-0 |
|
PLUG CLOSING,GOV SLEEVE |
1 |
|
|
|
L=2.90 ASSY FOR 8973503964 |
| 20 |
8-94428 869-0 |
|
PLUG CLOSING,GOV SLEEVE |
1 |
|
|
|
L=2.40 ASSY FOR 8973503964 |
| 90 |
8-94316 275-0 |
|
SCREW FULL LOAD ADJ,GOV |
1 |
|
|
|
(B) L=55 . 0 ASSY FOR 8973503983 |
| 20 |
8-94428 871-0 |
|
PLUG CLOSING,GOV SLEEVE |
1 |
|
|
|
L=2.80 ASSY FOR 8973503943 |
| 17 |
8-94231 124-0 |
|
SHIM FLYWEIGHT SLEEVE,GOV |
AR |
|
|
|
03 .318 T= 1.35 ASSY FOR 8973503964 |
| 104 |
8-94316 262-0 |
|
CAP LOCK NUT,ADJ SCREW |
1 |
|
|
|
(A) L=16 . 5 ASSY FOR 8973503964 |
| 17 |
8-94231 125-0 |
|
SHIM FLYWEIGHT SLEEVE,GOV |
AR |
|
|
|
03 .318 T=1.55 ASSY FOR 8973503964 |
| 149 |
8-94316 278-0 |
|
WIRE VLV |
1 |
|
|
|
ASSY FOR 8973503964 |
| 18 |
8-97214 475-0 |
|
SLEEVE GOV |
1 |
|
|
|
ASSY FOR 8973503983 |
| 20 |
8-97163 170-0 |
|
PLUG CLOSING,GOV SLEEVE |
1 |
|
|
|
L= 5.90 ASSY FOR 8973503934 |
| 20 |
8-94408 534-0 |
|
PLUG CLOSING,GOV SLEEVE |
1 |
|
|
|
L=4.90 ASSY FOR 8973503934 |
| 20 |
8-94408 529-0 |
|
PLUG CLOSING,GOV SLEEVE |
1 |
|
|
|
L=3.90 ASSY FOR 8973503934 |
| 17 |
8-94231 123-0 |
|
SHIM FLYWEIGHT SLEEVE,GOV |
AR |
|
|
|
03.318 T=1.15 ASSY FOR 8973503934 |
| 20 |
8-94428 878-0 |
|
PLUG CLOSING,GOV SLEEVE |
1 |
|
|
|
L=4 .20 ASSY FOR 8973503934 |
| 104 |
8-94316 266-0 |
|
CAP LOCK NUT,ADJ SCREW |
1 |
|
|
|
(B) L=27 . 0 ASSY FOR 8973503964 |
| 102 |
8-94227 593-0 |
|
WASHER FULL LOAD ADJ SCREW,GOV |
1 |
|
|
|
ASSY FOR 8973503934 |
| 20 |
8-94428 874-0 |
|
PLUG CLOSING,GOV SLEEVE |
1 |
|
|
|
L=3 .40 ASSY FOR 8973503934 |
| 18 |
8-97214 475-0 |
|
SLEEVE GOV |
1 |
|
|
|
ASSY FOR 8973503943 |
| 133 |
8-94313 267-0 |
|
BOLT BRKT FIX,GOV |
2 |
|
|
|
M6X12 ASSY FOR 8973503964 |
| 464 |
8-97168 231-0 |
|
JOINT POTENTIO METER |
1 |
|
|
|
ANGLE=4 5 DEGREES ASSY FOR 8973503964 |
| 104 |
8-94316 266-0 |
|
CAP LOCK NUT,ADJ SCREW |
1 |
|
|
|
(B) L=27 . 0 ASSY FOR 8973503983 |
| 464 |
8-97214 520-0 |
|
JOINT POTENTIO METER |
1 |
|
|
|
ANGLE=0 DEGREES ASSY FOR 8973503964 |
| 20 |
8-94408 529-0 |
|
PLUG CLOSING,GOV SLEEVE |
1 |
|
|
|
L=3.90 ASSY FOR 8973503964 |
| 20 |
8-94408 531-0 |
|
PLUG CLOSING,GOV SLEEVE |
1 |
|
|
|
L=4 .30 ASSY FOR 8973503934 |
| 104 |
8-94316 264-0 |
|
CAP LOCK NUT,ADJ SCREW |
1 |
|
|
|
(B) L=21 . 0 ASSY FOR 8973503943 |
| 64 |
8-97119 200-0 |
|
LEVER LOAD CONT,GOV |
1 |
|
|
|
STAMP 118 ASSY FOR 8973503943 |
| 64 |
8-98050 935-0 |
|
LEVER LOAD CONT,GOV |
1 |
|
|
|
STAMP 2 79 ASSY FOR 8973503934 |
| 20 |
8-94428 877-0 |
|
PLUG CLOSING,GOV SLEEVE |
1 |
|
|
|
L=4.00 ASSY FOR 8973503943 |
| 20 |
8-94408 527-0 |
|
PLUG CLOSING,GOV SLEEVE |
1 |
|
|
|
L=3.50 ASSY FOR 8973503943 |
| 20 |
8-94428 881-0 |
|
PLUG CLOSING,GOV SLEEVE |
1 |
|
|
|
L=4.80 ASSY FOR 8973503983 |
| 17 |
8-94227 610-0 |
|
SHIM FLYWEIGHT SLEEVE,GOV |
AR |
|
|
|
03.318 T=1.65 ASSY FOR 8973503964 |
| 20 |
8-94408 527-0 |
|
PLUG CLOSING,GOV SLEEVE |
1 |
|
|
|
L=3.50 ASSY FOR 8973503934 |
| 20 |
8-97163 170-0 |
|
PLUG CLOSING,GOV SLEEVE |
1 |
|
|
|
L= 5.90 ASSY FOR 8973503964 |
| 464 |
8-97214 515-0 |
|
JOINT POTENTIO METER |
1 |
|
|
|
ANGLE=105 DEGREES ASSY FOR 8973503983 |
| 20 |
8-94408 525-0 |
|
PLUG CLOSING,GOV SLEEVE |
1 |
|
|
|
L=3.10 ASSY FOR 8973503964 |
| 20 |
8-94428 882-0 |
|
PLUG CLOSING,GOV SLEEVE |
1 |
|
|
|
L= 5.00 ASSY FOR 8973503983 |
| 20 |
8-94428 880-0 |
|
PLUG CLOSING,GOV SLEEVE |
1 |
|
|
|
L=4.60 ASSY FOR 8973503934 |
| 20 |
8-94428 880-0 |
|
PLUG CLOSING,GOV SLEEVE |
1 |
|
|
|
L=4.60 ASSY FOR 8973503983 |
| 20 |
8-94428 881-0 |
|
PLUG CLOSING,GOV SLEEVE |
1 |
|
|
|
L=4.80 ASSY FOR 8973503943 |
| 11 |
8-97136 413-0 |
|
GASKET COVER TO HSG,GOV |
1 |
|
|
|
ASSY FOR 8973503943 |
| 12 |
8-97328 711-0 |
|
FLYWEIGHT ASM GOV |
1 |
|
|
|
ASSY FOR 8973503964 |
| 49 |
8-94227 606-0 |
|
GASKET GOV SHAFT,INJ PUMP |
1 |
|
|
|
03 .318 ASSY FOR 8973503983 |
| 20 |
8-94428 868-0 |
|
PLUG CLOSING,GOV SLEEVE |
1 |
|
|
|
L=2.20 ASSY FOR 8973503983 |
| 20 |
8-94428 871-0 |
|
PLUG CLOSING,GOV SLEEVE |
1 |
|
|
|
L=2.80 ASSY FOR 8973503983 |
| 80 |
9-09150 506-0 |
|
WASHER LK,CONT LEVER,GOV |
1 |
|
|
|
00.206 ID=6.1 ASSY FOR 8973503983 |
| 17 |
8-94227 610-0 |
|
SHIM FLYWEIGHT SLEEVE,GOV |
AR |
|
|
|
03.318 T=1.65 ASSY FOR 8973503943 |
| 20 |
8-94428 872-0 |
|
PLUG CLOSING,GOV SLEEVE |
1 |
|
|
|
L=3.00 ASSY FOR 8973503943 |
| 20 |
8-94428 879-0 |
|
PLUG CLOSING,GOV SLEEVE |
1 |
|
|
|
L=4 .40 ASSY FOR 8973503943 |
| 15 |
8-94408 517-0 |
|
WASHER LK,FLYWEIGHT FIX,GOV |
1 |
|
|
|
(B) ASSY FOR 8973503964 |
| 20 |
8-94408 529-0 |
|
PLUG CLOSING,GOV SLEEVE |
1 |
|
|
|
L=3.90 ASSY FOR 8973503983 |
| 102 |
8-94227 593-0 |
|
WASHER FULL LOAD ADJ SCREW,GOV |
1 |
|
|
|
ASSY FOR 8973503983 |
| 17 |
8-94227 610-0 |
|
SHIM FLYWEIGHT SLEEVE,GOV |
AR |
|
|
|
T=1.65 3318 ASSY FOR 8973503934 |
| 17 |
8-94231 125-0 |
|
SHIM FLYWEIGHT SLEEVE,GOV |
AR |
|
|
|
03.318 T=1.55 ASSY FOR 8973503943 |
| 20 |
8-94408 526-0 |
|
PLUG CLOSING,GOV SLEEVE |
1 |
|
|
|
L=3 .30 ASSY FOR 8973503983 |
| 464 |
8-97168 230-0 |
|
JOINT POTENTIO METER |
1 |
|
|
|
ANGLE=3 0 DEGREES ASSY FOR 8973503964 |
| 56 |
8-94470 582-0 |
|
WIRE LEAD,MAG VLV,INJ PUMP |
1 |
|
|
|
ASSY FOR 8973503934 |
| 18 |
8-97214 475-0 |
|
SLEEVE GOV |
1 |
|
|
|
ASSY FOR 8973503934 |
| 464 |
8-97214 518-0 |
|
JOINT POTENTIO METER |
1 |
|
|
|
ANGLE=150 DEGREES ASSY FOR 8973503964 |
| 104 |
8-94316 264-0 |
|
CAP LOCK NUT,ADJ SCREW |
1 |
|
|
|
(B) L=21 . 0 ASSY FOR 8973503964 |
| 20 |
8-94408 523-0 |
|
PLUG CLOSING,GOV SLEEVE |
1 |
|
|
|
L=2.70 ASSY FOR 8973503943 |
| 52 |
8-94227 590-0 |
|
WASHER CONT SHAFT,GOV |
1 |
|
|
|
ASSY FOR 8973503964 |
| 15 |
8-94227 612-0 |
|
WASHER LK,FLYWEIGHT FIX,GOV |
1 |
|
|
|
(A) ASSY FOR 8973503964 |
| 20 |
8-97163 167-0 |
|
PLUG CLOSING,GOV SLEEVE |
1 |
|
|
|
L= 5.60 ASSY FOR 8973503983 |
| 97 |
8-94227 601-0 |
|
BOLT PIVOT,GOV LEVER |
2 |
|
|
|
ASSY FOR 8973503934 |
| 20 |
8-94372 502-0 |
|
PLUG CLOSING,GOV SLEEVE |
1 |
|
|
|
L= 5.50 ASSY FOR 8973503964 |
| 11 |
8-97136 413-0 |
|
GASKET COVER TO HSG,GOV |
1 |
|
|
|
ASSY FOR 8973503983 |
| 56 |
8-94470 582-0 |
|
WIRE LEAD,MAG VLV,INJ PUMP |
1 |
|
|
|
ASSY FOR 8973503943 |
| 17 |
8-94231 126-0 |
|
SHIM FLYWEIGHT SLEEVE,GOV |
AR |
|
|
|
03.318 T=1.75 ASSY FOR 8973503964 |
| 64 |
8-97328 707-0 |
|
LEVER LOAD CONT,GOV |
1 |
|
|
|
STAMP 2 80 ASSY FOR 8973503983 |
| 20 |
8-94372 499-0 |
|
PLUG CLOSING,GOV SLEEVE |
1 |
|
|
|
L= 5.20 ASSY FOR 8973503943 |
| 415 |
8-94313 203-0 |
|
BOLT BRKT TO HOUSING |
2 |
|
|
|
(A) ASSY FOR 8973503983 |
| 17 |
8-94231 126-0 |
|
SHIM FLYWEIGHT SLEEVE,GOV |
AR |
|
|
|
03 .318 T=1.75 ASSY FOR 8973503943 |
| 20 |
8-97163 168-0 |
|
PLUG CLOSING,GOV SLEEVE |
1 |
|
|
|
L= 5.70 ASSY FOR 8973503983 |
| 20 |
8-94408 526-0 |
|
PLUG CLOSING,GOV SLEEVE |
1 |
|
|
|
L=3.30 ASSY FOR 8973503943 |
| 97 |
8-94227 601-0 |
|
BOLT PIVOT,GOV LEVER |
2 |
|
|
|
ASSY FOR 8973503983 |
| 46 |
8-94473 128-0 |
|
SPRING GOV,INJ PUMP |
2 |
|
|
|
ASSY FOR 8973503934 |
| 282 |
8-97148 143-0 |
|
SCREW POTENTIO METER |
2 |
|
|
|
ASSY FOR 8973503983 |
| 93 |
8-94426 047-1 |
|
NUT ADJ SCREW LK,INJ PUMP GOV |
1 |
|
|
|
(C) ASSY FOR 8973503934 |
| 20 |
8-94428 869-0 |
|
PLUG CLOSING,GOV SLEEVE |
1 |
|
|
|
L=2.40 ASSY FOR 8973503934 |
| 17 |
8-94231 125-0 |
|
SHIM FLYWEIGHT SLEEVE,GOV |
AR |
|
|
|
03.318 T=1.55 ASSY FOR 8973503934 |
| 282 |
8-97148 143-0 |
|
SCREW POTENTIO METER |
2 |
|
|
|
ASSY FOR 8973503964 |
| 8 |
8-94227 636-0 |
|
BOLT GOV COVER,INJ PUMP |
4 |
|
|
|
03 .330 ASSY FOR 8973503934 |
| 20 |
8-94408 522-0 |
|
PLUG CLOSING,GOV SLEEVE |
1 |
|
|
|
L=2.50 ASSY FOR 8973503964 |
| 20 |
8-94428 875-0 |
|
PLUG CLOSING,GOV SLEEVE |
1 |
|
|
|
L=3.60 ASSY FOR 8973503983 |
| 20 |
8-94428 872-0 |
|
PLUG CLOSING,GOV SLEEVE |
1 |
|
|
|
L=3.00 ASSY FOR 8973503983 |
| 19 |
8-94408 519-0 |
|
CAP GOV SLEEVE,INJ PUMP |
1 |
|
|
|
ASSY FOR 8973503964 |
| 12 |
8-97328 711-0 |
|
FLYWEIGHT ASM GOV |
1 |
|
|
|
ASSY FOR 8973503943 |
| 64 |
8-97119 201-0 |
|
LEVER LOAD CONT,GOV |
1 |
|
|
|
STAMP 119 ASSY FOR 8973503934 |
| 50 |
8-94473 129-0 |
|
NUT GOV SHAFT,INJ PUMP |
1 |
|
|
|
ASSY FOR 8973503983 |
| 8 |
8-94227 636-0 |
|
BOLT GOV COVER,INJ PUMP |
4 |
|
|
|
03 .330 ASSY FOR 8973503943 |
| 20 |
8-94372 500-0 |
|
PLUG CLOSING,GOV SLEEVE |
1 |
|
|
|
L= 5.30 ASSY FOR 8973503964 |
| 20 |
8-94428 878-0 |
|
PLUG CLOSING,GOV SLEEVE |
1 |
|
|
|
L=4.20 ASSY FOR 8973503964 |
| 20 |
8-94428 870-0 |
|
PLUG CLOSING,GOV SLEEVE |
1 |
|
|
|
L=2.60 ASSY FOR 8973503943 |
| 97 |
8-94227 601-0 |
|
BOLT PIVOT,GOV LEVER |
2 |
|
|
|
ASSY FOR 8973503964 |
| 12 |
8-97328 711-0 |
|
FLYWEIGHT ASM GOV |
1 |
|
|
|
ASSY FOR 8973503934 |
| 357 |
8-94174 987-0 |
|
BOLT PLATE,GOV |
1 |
|
|
|
ASSY FOR 8973503964 |
| 54 |
8-94242 275-0 |
|
VALVE MAG,ENG STOP,INJ PUMP |
1 |
|
|
|
3314 ASSY FOR 8973503983 |
| 20 |
8-94428 879-0 |
|
PLUG CLOSING,GOV SLEEVE |
1 |
|
|
|
L=4 .40 ASSY FOR 8973503983 |
| 20 |
8-94408 527-0 |
|
PLUG CLOSING,GOV SLEEVE |
1 |
|
|
|
L=3.50 ASSY FOR 8973503964 |
| 104 |
8-94316 265-0 |
|
CAP LOCK NUT,ADJ SCREW |
1 |
|
|
|
(B) L=24 . 0 ASSY FOR 8973503943 |
| 141 |
8-97182 233-0 |
|
PLATE ASM PIPE BRKT |
1 |
|
|
|
ASSY FOR 8973503943 |
| 20 |
8-94428 871-0 |
|
PLUG CLOSING,GOV SLEEVE |
1 |
|
|
|
L=2.80 ASSY FOR 8973503934 |
| 104 |
8-94316 263-0 |
|
CAP LOCK NUT,ADJ SCREW |
1 |
|
|
|
(B) L=18 . 0 ASSY FOR 8973503934 |
| 92 |
8-94426 049-0 |
|
BOLT FULL LOAD STOPPER,GOV |
1 |
|
|
|
01 . 531 ASSY FOR 8973503943 |
| 45 |
8-97332 036-0 |
|
LEVER ASM GOV,INJ PUMP |
1 |
|
|
|
ASSY FOR 8973503943 |
| 20 |
8-94408 530-0 |
|
PLUG CLOSING,GOV SLEEVE |
1 |
|
|
|
L=4.10 ASSY FOR 8973503964 |
| 20 |
8-94408 520-0 |
|
PLUG CLOSING,GOV SLEEVE |
1 |
|
|
|
L=2.10 ASSY FOR 8973503934 |
| 20 |
8-97163 169-0 |
|
PLUG CLOSING,GOV SLEEVE |
1 |
|
|
|
L= 5.80 ASSY FOR 8973503934 |
| 463 |
8-97148 144-0 |
|
BOOT POTENTIO METER |
1 |
|
|
|
ASSY FOR 8973503964 |
| 464 |
8-97168 236-0 |
|
JOINT POTENTIO METER |
1 |
|
|
|
ANGLE=3 7.5 DEGREES ASSY FOR 8973503983 |
| 17 |
8-94227 609-0 |
|
SHIM FLYWEIGHT SLEEVE,GOV |
AR |
|
|
|
T=1.45 3318 ASSY FOR 8973503934 |
| 64 |
8-97119 200-0 |
|
LEVER LOAD CONT,GOV |
1 |
|
|
|
STAMP 118 ASSY FOR 8973503983 |
| 90 |
8-94426 049-0 |
|
SCREW FULL LOAD ADJ,GOV |
1 |
|
|
|
01 . 531 (A) ASSY FOR 8973503934 |
| 139 |
8-97263 483-0 |
|
BRACKET INJ PUMP |
1 |
|
|
|
(A) ASSY FOR 8973503964 |
| 20 |
8-94408 534-0 |
|
PLUG CLOSING,GOV SLEEVE |
1 |
|
|
|
L=4.90 ASSY FOR 8973503983 |
| 149 |
8-94316 278-0 |
|
WIRE VLV |
1 |
|
|
|
ASSY FOR 8973503934 |
| 17 |
8-94231 124-0 |
|
SHIM FLYWEIGHT SLEEVE,GOV |
AR |
|
|
|
03.318 T=1.35 ASSY FOR 8973503934 |
| 15 |
8-94408 517-0 |
|
WASHER LK,FLYWEIGHT FIX,GOV |
1 |
|
|
|
(B) ASSY FOR 8973503943 |
| 415 |
8-94313 203-0 |
|
BOLT BRKT TO HOUSING |
2 |
|
|
|
(A) ASSY FOR 8973503964 |
| 464 |
8-97214 514-0 |
|
JOINT POTENTIO METER |
1 |
|
|
|
ANGLE=90 DEGREES ASSY FOR 8973503964 |
| 134 |
8-97322 854-0 |
|
BRACKET CONT CABLE,GOV |
1 |
|
|
|
ASSY FOR 8973503983 |
| 64 |
8-97119 201-0 |
|
LEVER LOAD CONT,GOV |
1 |
|
|
|
STAMP 119 ASSY FOR 8973503983 |
| 55 |
8-94239 373-0 |
|
GASKET MAG VLV,INJ PUMP |
1 |
|
|
|
3318 ASSY FOR 8973503983 |
| 90 |
8-94316 276-0 |
|
SCREW FULL LOAD ADJ,GOV |
1 |
|
|
|
(B) L=57 . 0 ASSY FOR 8973503943 |
| 17 |
8-94227 611-0 |
|
SHIM FLYWEIGHT SLEEVE,GOV |
AR |
|
|
|
03.318 T=1.85 ASSY FOR 8973503983 |
| 104 |
8-94316 265-0 |
|
CAP LOCK NUT,ADJ SCREW |
1 |
|
|
|
(B) L=24 . 0 ASSY FOR 8973503934 |
| 139 |
8-97263 483-0 |
|
BRACKET INJ PUMP |
1 |
|
|
|
(A) ASSY FOR 8973503934 |
| 104 |
8-94316 265-0 |
|
CAP LOCK NUT,ADJ SCREW |
1 |
|
|
|
(B) L=24 . 0 ASSY FOR 8973503964 |
| 53 |
8-94227 585-0 |
|
GASKET CONT SHAFT,GOV |
1 |
|
|
|
3306 ASSY FOR 8973503943 |
| 101 |
8-94227 598-0 |
|
GASKET ADJ SPRING CAPSULE,GOV |
1 |
|
|
|
ASSY FOR 8973503934 |
| 90 |
8-94316 276-0 |
|
SCREW FULL LOAD ADJ,GOV |
1 |
|
|
|
(B) L=57 . 0 ASSY FOR 8973503934 |
| 56 |
8-94470 582-0 |
|
WIRE LEAD,MAG VLV,INJ PUMP |
1 |
|
|
|
ASSY FOR 8973503983 |
| 93 |
8-94426 047-1 |
|
NUT ADJ SCREW LK,INJ PUMP GOV |
1 |
|
|
|
(C) ASSY FOR 8973503964 |
| 54 |
8-94242 275-0 |
|
VALVE MAG,ENG STOP,INJ PUMP |
1 |
|
|
|
3314 ASSY FOR 8973503943 |
| 17 |
8-94231 124-0 |
|
SHIM FLYWEIGHT SLEEVE,GOV |
AR |
|
|
|
03 .318 T=1.35 ASSY FOR 8973503983 |
| 464 |
8-97368 271-0 |
|
JOINT POTENTIO METER |
1 |
|
|
|
ANGLE=7.5 DEGREES ASSY FOR 8973503964 |
| 101 |
8-94227 598-0 |
|
GASKET ADJ SPRING CAPSULE,GOV |
1 |
|
|
|
ASSY FOR 8973503964 |
| 17 |
8-94227 611-0 |
|
SHIM FLYWEIGHT SLEEVE,GOV |
AR |
|
|
|
03.318 T=1.85 ASSY FOR 8973503943 |
| 20 |
8-94408 528-0 |
|
PLUG CLOSING,GOV SLEEVE |
1 |
|
|
|
L=3.70 ASSY FOR 8973503983 |
| 20 |
8-94428 879-0 |
|
PLUG CLOSING,GOV SLEEVE |
1 |
|
|
|
L=4 .40 ASSY FOR 8973503934 |
| 20 |
8-94428 879-0 |
|
PLUG CLOSING,GOV SLEEVE |
1 |
|
|
|
L=4 .40 ASSY FOR 8973503964 |
| 20 |
8-94428 881-0 |
|
PLUG CLOSING,GOV SLEEVE |
1 |
|
|
|
L=4.80 ASSY FOR 8973503934 |
| 17 |
8-94231 123-0 |
|
SHIM FLYWEIGHT SLEEVE,GOV |
AR |
|
|
|
03.318 T=1.15 ASSY FOR 8973503983 |
| 415 |
8-97020 720-0 |
|
BOLT BRKT TO HOUSING |
1 |
|
|
|
(B) ASSY FOR 8973503964 |
| 45 |
8-97332 036-0 |
|
LEVER ASM GOV,INJ PUMP |
1 |
|
|
|
ASSY FOR 8973503934 |
| 20 |
8-94372 501-0 |
|
PLUG CLOSING,GOV SLEEVE |
1 |
|
|
|
L= 5.40 ASSY FOR 8973503964 |
| 17 |
8-94227 607-0 |
|
SHIM FLYWEIGHT SLEEVE,GOV |
AR |
|
|
|
T=1.05 3318 ASSY FOR 8973503934 |
| 20 |
8-94408 524-0 |
|
PLUG CLOSING,GOV SLEEVE |
1 |
|
|
|
L=2.90 ASSY FOR 8973503983 |
| 20 |
8-94408 523-0 |
|
PLUG CLOSING,GOV SLEEVE |
1 |
|
|
|
L=2.70 ASSY FOR 8973503964 |
| 20 |
8-94428 873-0 |
|
PLUG CLOSING,GOV SLEEVE |
1 |
|
|
|
L=3.20 ASSY FOR 8973503943 |
| 18 |
8-97214 475-0 |
|
SLEEVE GOV |
1 |
|
|
|
ASSY FOR 8973503964 |
| 102 |
8-94227 593-0 |
|
WASHER FULL LOAD ADJ SCREW,GOV |
1 |
|
|
|
ASSY FOR 8973503964 |
| 464 |
8-97168 235-0 |
|
JOINT POTENTIO METER |
1 |
|
|
|
ANGLE=4 8.5 DEGREES ASSY FOR 8973503983 |
| 17 |
8-94227 607-0 |
|
SHIM FLYWEIGHT SLEEVE,GOV |
AR |
|
|
|
T=1.05 03 .318 ASSY FOR 8973503964 |
| 52 |
8-94227 590-0 |
|
WASHER CONT SHAFT,GOV |
1 |
|
|
|
ASSY FOR 8973503943 |
| 17 |
8-94227 610-0 |
|
SHIM FLYWEIGHT SLEEVE,GOV |
AR |
|
|
|
03.318 T=1.65 ASSY FOR 8973503983 |
| 64 |
8-97328 707-0 |
|
LEVER LOAD CONT,GOV |
1 |
|
|
|
STAMP 2 80 ASSY FOR 8973503964 |
| 51 |
8-97322 856-0 |
|
SHAFT LOAD CONT LEVER,GOV |
1 |
|
|
|
ASSY FOR 8973503943 |
| 55 |
8-94239 373-0 |
|
GASKET MAG VLV,INJ PUMP |
1 |
|
|
|
3318 ASSY FOR 8973503943 |
| 53 |
8-94227 585-0 |
|
GASKET CONT SHAFT,GOV |
1 |
|
|
|
3306 ASSY FOR 8973503964 |
| 64 |
8-97328 707-0 |
|
LEVER LOAD CONT,GOV |
1 |
|
|
|
STAMP 2 80 ASSY FOR 8973503934 |
| 101 |
8-94227 598-0 |
|
GASKET ADJ SPRING CAPSULE,GOV |
1 |
|
|
|
ASSY FOR 8973503943 |
| 20 |
8-94408 522-0 |
|
PLUG CLOSING,GOV SLEEVE |
1 |
|
|
|
L=2.50 ASSY FOR 8973503934 |
| 20 |
8-94408 531-0 |
|
PLUG CLOSING,GOV SLEEVE |
1 |
|
|
|
L=4.30 ASSY FOR 8973503943 |
| 20 |
8-94408 535-0 |
|
PLUG CLOSING,GOV SLEEVE |
1 |
|
|
|
L=5.10 ASSY FOR 8973503943 |
| 20 |
8-97163 169-0 |
|
PLUG CLOSING,GOV SLEEVE |
1 |
|
|
|
L= 5.80 ASSY FOR 8973503964 |
| 20 |
8-94372 502-0 |
|
PLUG CLOSING,GOV SLEEVE |
1 |
|
|
|
L= 5.50 ASSY FOR 8973503934 |
| 104 |
8-94316 262-0 |
|
CAP LOCK NUT,ADJ SCREW |
1 |
|
|
|
(A) L=16 . 5 ASSY FOR 8973503934 |
| 20 |
8-94428 868-0 |
|
PLUG CLOSING,GOV SLEEVE |
1 |
|
|
|
L=2.20 ASSY FOR 8973503943 |
| 20 |
8-94428 874-0 |
|
PLUG CLOSING,GOV SLEEVE |
1 |
|
|
|
L=3 .40 ASSY FOR 8973503983 |
| 17 |
8-94227 608-0 |
|
SHIM FLYWEIGHT SLEEVE,GOV |
AR |
|
|
|
T= 1.25 3318 ASSY FOR 8973503983 |
| 20 |
8-94428 881-0 |
|
PLUG CLOSING,GOV SLEEVE |
1 |
|
|
|
L=4.80 ASSY FOR 8973503964 |
| 104 |
8-94316 266-0 |
|
CAP LOCK NUT,ADJ SCREW |
1 |
|
|
|
(B) L=27 . 0 ASSY FOR 8973503934 |
| 20 |
8-94408 520-0 |
|
PLUG CLOSING,GOV SLEEVE |
1 |
|
|
|
L=2.10 ASSY FOR 8973503943 |
| 90 |
8-94426 049-0 |
|
SCREW FULL LOAD ADJ,GOV |
1 |
|
|
|
01 . 531 (A) ASSY FOR 8973503964 |
