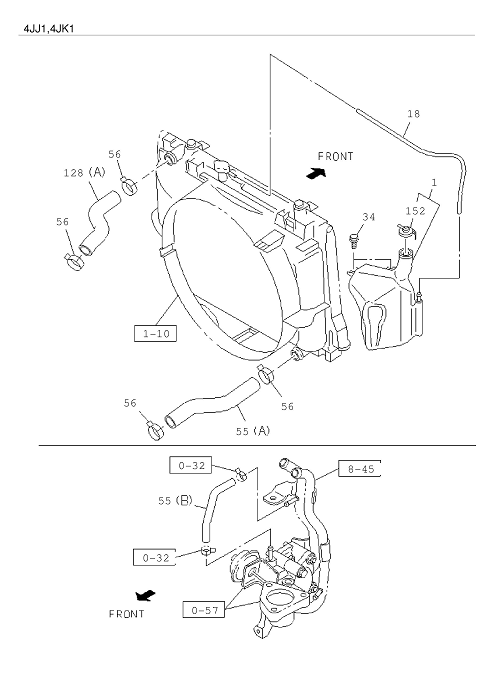

1-11 | RADIATOR HOSE AND SUB TANK
DMAX
D-MAX 2016
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 55 | 8-98222 236-0 | HOSE WATER,RAD OUTLET | 1 | 1602- | BC | PROVISIONAL PACKAGE SPEC(BCC) (D) | ||
| 18 | 8-98102 344-2 | HOSE RAD TO SURGE TANK | 1 | 1602- | ABCD | ID=7 OD=12 L=580 | ||
| 55 | 8-98093 327-1 | HOSE WATER,RAD OUTLET | 1 | 1602- | A | (C) | ||
| 34 | 8-98056 282-0 | BOLT RESERVE TANK | 2 | 1602- | ABCD | 09 . 744 M6X2 0 W/WASHER | ||
| 55 | 8-98179 012-1 | HOSE WATER,RAD OUTLET | 1 | 1602- | D | (B) | ||
| 55 | 8-98093 324-2 | HOSE WATER,RAD OUTLET | 1 | 1602- | D | (A) | ||
| 128 | 8-98093 326-0 | HOSE WATER,RAD INL | 1 | 1602- | A | (B) | ||
| 1 | 8-98095 701-2 | TANK SURGE,RAD | 1 | 1602- | ABCD | |||
| 56 | 8-97313 472-0 | CLIP WATER HOSE,RAD | 4 | 1602- | ABCD | ID=4 0.5 | ||
| 128 | 8-98090 629-2 | HOSE WATER,RAD INL | 1 | 1602- | BCD | (A) | ||
| 55 | 8-98093 324-2 | HOSE WATER,RAD OUTLET | 1 | 1602- | BC | EXC. PROVISIONAL PACKAGE SPEC(BCC) (A) | ||
| 2 | 8-98189 898-0 | CAP SURGE TANK | 1 | 1602- | ABCD |
