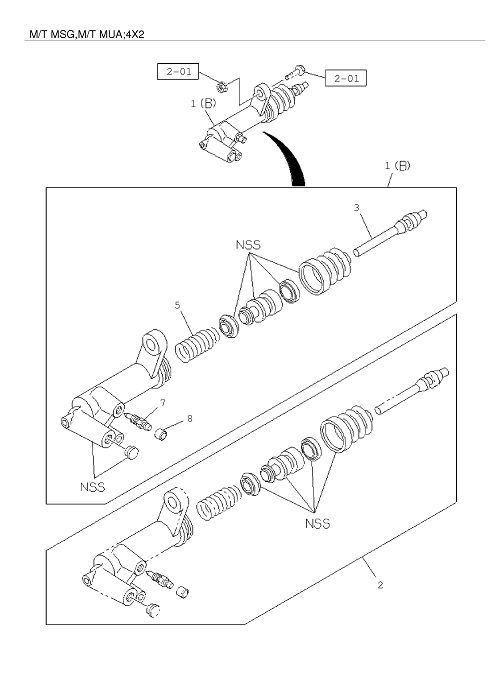

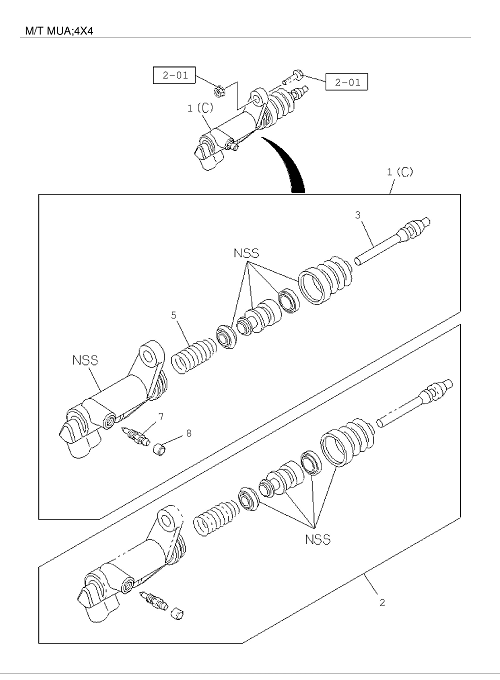

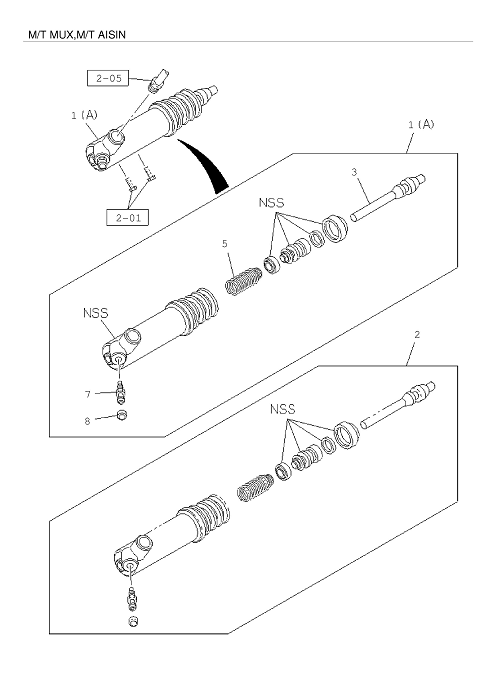

2-06 | CLUTCH SLAVE CYLINDER
DMAX
D-MAX 2016
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 2 | 5-87832 048-0 | REPAIR KIT CLU SLAVE CYL | 1 | 1602- | ABCDEF | |||
| 3 | 8-98187 063-0 | ROD PUSH,SLAVE CYL | 1 | 1602- | EF | |||
| 1 | 8-97945 177-0 | CYLINDER SLAVE,CLU | 1 | 1602- | B | 4X2(TFB***) (A) | ||
| 8 | 8-97940 638-0 | CAP BLEEDER,SLAVE CYL | 1 | 1602- | ABCDEF | OD=10 | ||
| 7 | 8-98020 477-0 | SCREW BLEEDER,SLAVE CYL | 1 | 1602- | ABCDEF | M8X10 | ||
| 1 | 8-97946 624-2 | CYLINDER SLAVE,CLU | 1 | 1602- | EF | (C) | ||
| 1 | 8-97945 177-0 | CYLINDER SLAVE,CLU | 1 | 1602- | A CD | (A) | ||
| 1 | 8-97946 625-1 | CYLINDER SLAVE,CLU | 1 | 1602- | B | 4X4(TFS***) (B) | ||
| 5 | 8-97942 801-0 | SPRING ASM PISTON,SLAVE CYL | 1 | 1602- | ABCDEF | |||
| 3 | 8-97945 722-0 | ROD PUSH,SLAVE CYL | 1 | 1602- | ABCD |
