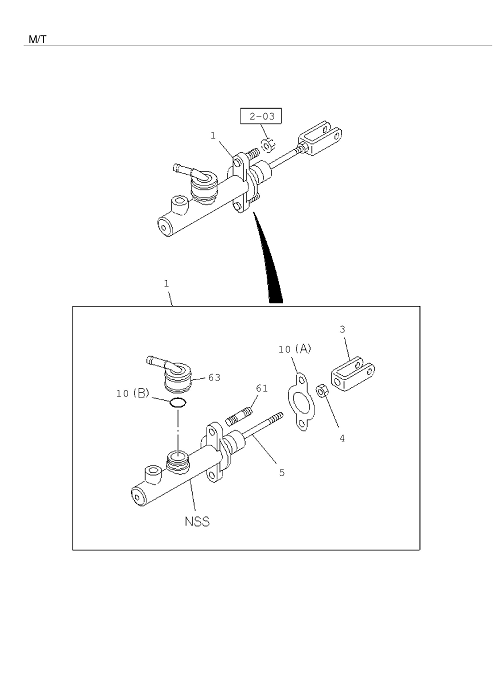

2-08 | CLUTCH MASTER CYLINDER
DMAX
D-MAX 2016
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 10 | 8-97947 775-0 | GASKET CLU M/CYL | 1 | 1602- | ABCDEF | (B) | ||
| 3 | 8-97945 449-0 | JOINT JAW,CLU M/CYL | 1 | 1602- | ABCDEF | |||
| 4 | 0-91111 508-0 | NUT JAW JOINT | 1 | 1602- | ABCDEF | M8 | ||
| 63 | 8-97947 776-0 | ADAPTER | 1 | 1602- | ABCDEF | |||
| 1 | 8-97946 626-1 | CYLINDER ASM CLUTCH MASTER | 1 | 1602- | ABCDEF | |||
| 10 | 8-97184 654-0 | GASKET CLU M/CYL | 1 | 1602- | ABCDEF | (A) | ||
| 61 | 8-97945 450-0 | BOLT STUD | 2 | 1602- | ABCDEF |
