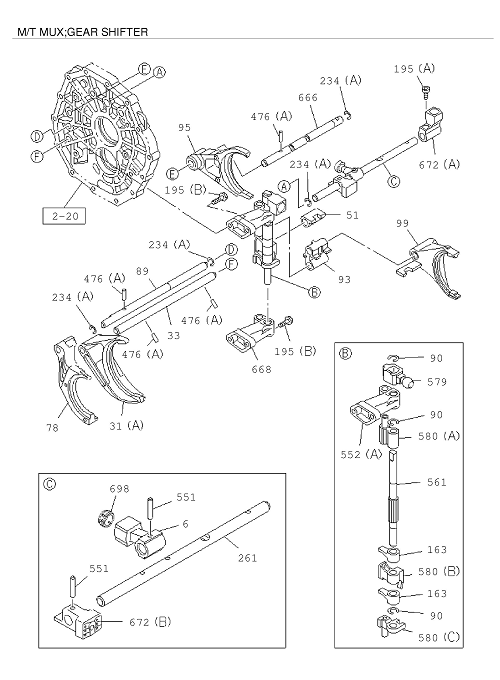

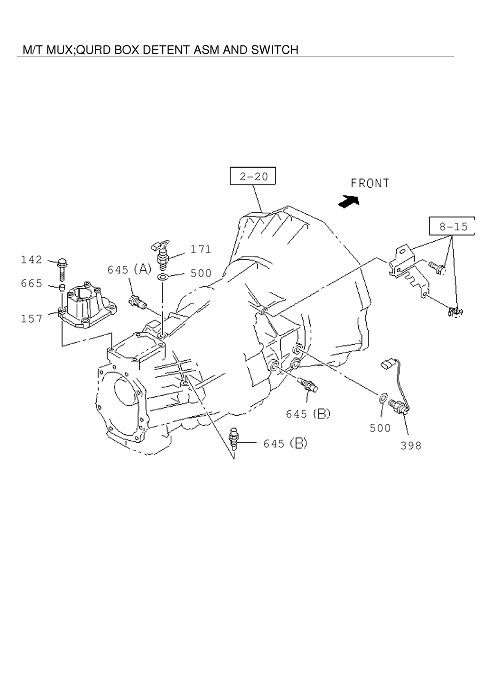

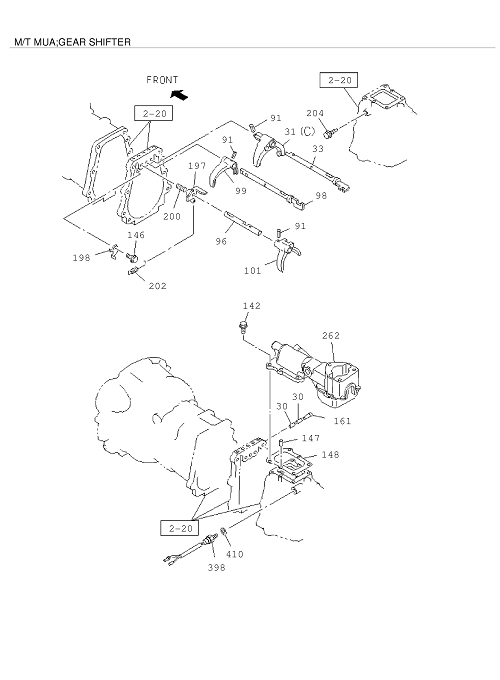

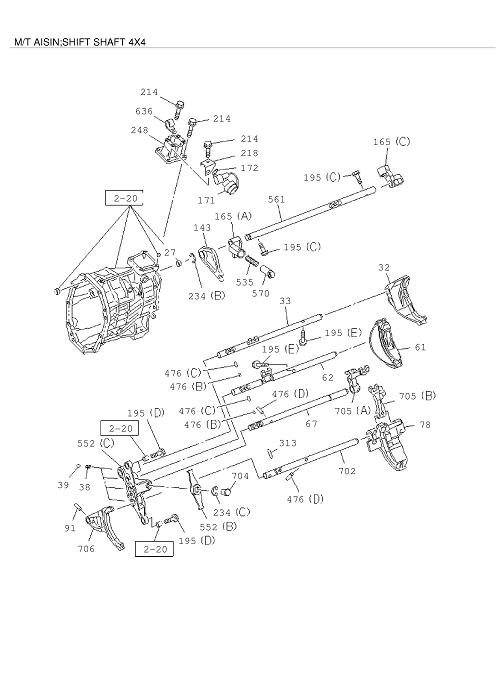

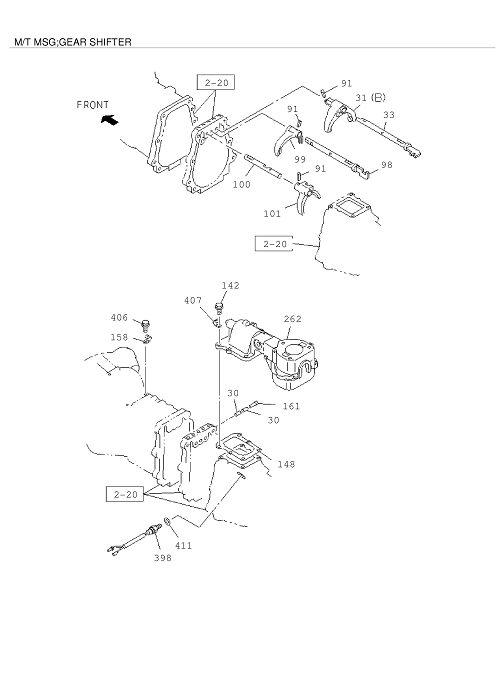

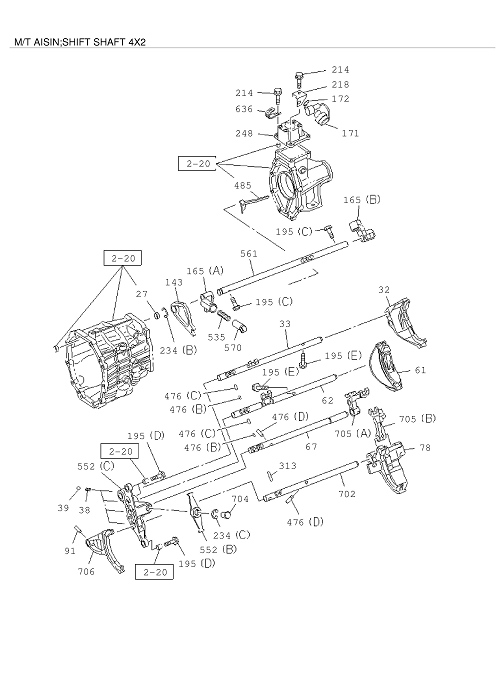

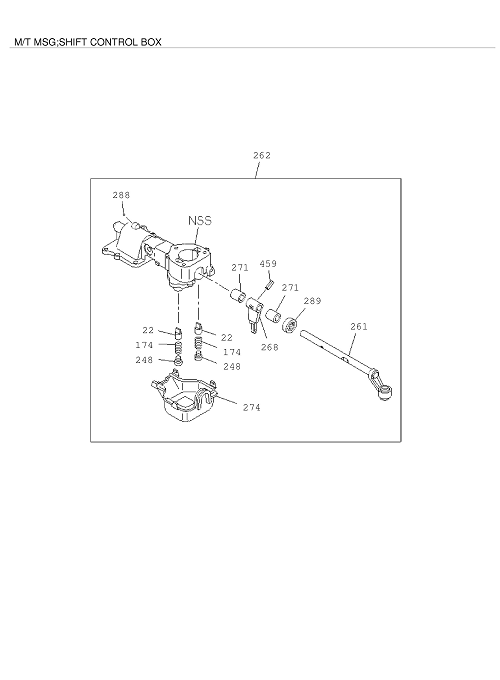

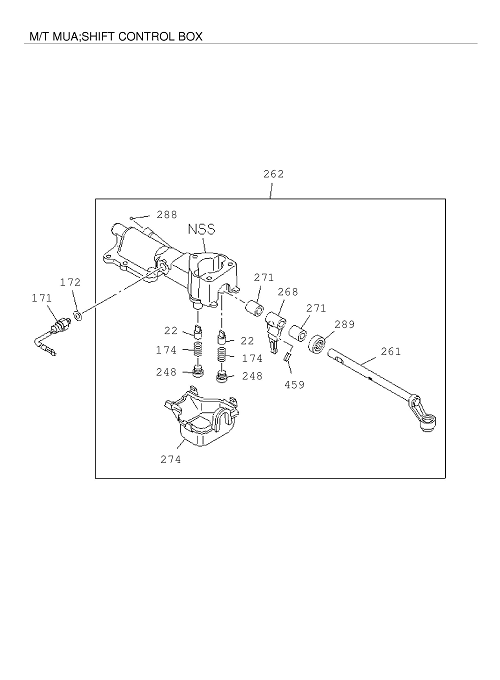

2-30 | GEAR SHIFTER AND QUADRANT BOX
DMAX
D-MAX 2016
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 262 | 8-98219 762-0 | BOX ASM SHIFT CONT | 1 | 1602- | A | |||
| 95 | 8-97362 436-1 | ARM SHIFT,5TH | 1 | 1602- | E | |||
| 668 | 8-97362 465-1 | BRACKET SHIFT ROD | 1 | 1602- | E | 4105 | ||
| 33 | 8-97362 441-0 | ROD SHIFT,LOW & 2ND | 1 | 1602- | E | |||
| 33 | 8-97213 047-0 | ROD SHIFT,LOW & 2ND | 1 | 1602- | A | |||
| 248 | 8-98210 983-0 | RETAINER CONT BOX | 2 | 1602- | ABCD | |||
| 142 | 0-28650 835-0 | BOLT QUAD BOX | 4 | 1602- | E | 01.060 M8X3 5 FLANGE | ||
| 261 | 8-97257 825-0 | ROD GEAR CONT | 1 | 1602- | A | |||
| 195 | 8-98203 146-0 | BOLT | 4 | 1602- | F | (D) | ||
| 98 | 8-97019 060-3 | ROD SHIFT,TOP & 3RD | 1 | 1602- | BCD | |||
| 268 | 8-97184 895-0 | LEVER CONT,INTERNAL | 1 | 1602- | BCD | |||
| 274 | 8-97181 324-1 | COVER SHAFT,QUAD BOX | 1 | 1602- | ABCD | |||
| 31 | 8-97024 503-1 | ARM SHIFT,LOW & 2ND | 1 | 1602- | A | |||
| 172 | 8-98210 376-0 | GASKET NEUTRAL SW | 1 | 1602- | F | |||
| 99 | 8-94435 153-1 | ARM SHIFT,4TH & 3RD | 1 | 1602- | A | |||
| 704 | 8-98203 152-0 | PIVOT | 1 | 1602- | F | |||
| 32 | 8-98203 153-0 | ARM SHIFT,1ST & 2ND | 1 | 1602- | F | |||
| 198 | 8-94448 199-0 | BRACKET REV INHIBITOR | 1 | 1602- | BCD | |||
| 580 | 8-98186 700-0 | BLOCK INTERLOCK | 1 | 1602- | E | (C) | ||
| 147 | 9-08150 612-0 | PIN KNOCK | 2 | 1602- | BCD | 04.510 OD= 6 L=12 | ||
| 234 | 8-98203 175-0 | RING SNAP | 1 | 1602- | F | (C) | ||
| 171 | 8-98180 974-0 | SWITCH NEUTRAL | 1 | 1602- | E | |||
| 398 | 8-98254 591-0 | SWITCH REV LAMP | 1 | 1602- | D | |||
| 214 | 8-98203 146-0 | BOLT CONT BOX,SUB TRANS | 4 | 1602- | F | 4105 | ||
| 195 | 8-98203 167-0 | BOLT | 2 | 1602- | F | (C) | ||
| 67 | 8-98203 158-0 | ROD SHIFT,5TH & 6TH | 1 | 1602- | F | |||
| 411 | 8-98210 376-0 | GASKET REV LAMP SW | 1 | 1602- | F | 4054 | ||
| 96 | 8-94440 079-1 | ROD SHIFT,5TH | 1 | 1602- | BC | EXC. IDENTIFICATION LABEL F > | ||
| 132 | 8-97181 395-0 | SPRING SELECT STOP | 2 | 1602- | ABCD | |||
| 33 | 8-98203 156-0 | ROD SHIFT,LOW & 2ND | 1 | 1602- | F | |||
| 288 | 9-00097 517-0 | PLUG AIR BREATHER | 1 | 1602- | ABCD | |||
| 672 | 8-98095 689-1 | BLOCK SHIFT,T/M CONTROL | 1 | 1602- | E | (B) | ||
| 101 | 8-94448 755-2 | ARM SHIFT,REV & 5TH | 1 | 1602- | BC | EXC. IDENTIFICATION LABEL F > | ||
| 271 | 8-98017 908-0 | BUSHING QUAD BOX | 2 | 1602- | ABCD | ID=14 L=12 | ||
| 202 | 8-97017 500-0 | SPRING REV INHIBITOR,EXT | 1 | 1602- | BCD | |||
| 665 | 9-11229 058-1 | DOWEL | 2 | 1602- | E | OD=11 L= 8 | ||
| 262 | 8-98219 761-0 | BOX ASM SHIFT CONT | 1 | 1602- | BCD | |||
| 33 | 8-97019 061-2 | ROD SHIFT,LOW & 2ND | 1 | 1602- | BCD | |||
| 143 | 8-98203 148-0 | CAM STOPPER,REV INHIBITOR | 1 | 1602- | F | |||
| 22 | 8-97181 326-0 | CAP RETURN SPR,SHIFT BLOCK | 2 | 1602- | ABCD | |||
| 645 | 8-98019 536-0 | DETENT ASM | 2 | 1602- | E | 04.307 (B) | ||
| 165 | 8-98203 160-0 | LEVER SHIFT | 1 | 1602- | F | (A) | ||
| 148 | 8-97083 599-0 | GASKET QUAD BOX | 1 | 1602- | BCD | |||
| 39 | 8-97165 089-0 | BALL DETENT | 4 | 1602- | F | |||
| 698 | 8-98073 812-0 | SEAT SHIFT CONT | 1 | 1602- | E | 4307 | ||
| 645 | 8-97362 469-2 | DETENT ASM | 1 | 1602- | E | (A) | ||
| 98 | 8-97213 045-0 | ROD SHIFT,TOP & 3RD | 1 | 1602- | A | |||
| 195 | 8-98034 764-0 | BOLT | 4 | 1602- | E | (B) M8X3 0 FLANGE | ||
| 580 | 8-98052 462-0 | BLOCK INTERLOCK | 1 | 1602- | E | (B) | ||
| 99 | 8-94421 911-2 | ARM SHIFT,4TH & 3RD | 1 | 1602- | BCD | |||
| 165 | 8-98203 141-0 | LEVER SHIFT | 1 | 1602- | F | 4X4(TFS***) (C) | ||
| 91 | 8-94171 541-0 | PIN SPR,SHIFT ARM | 3 | 1602- | ABCD | 04.303 D=4.2 L=25 | ||
| 391 | 8-98035 674-0 | PLUG SW HOLE | 1 | 1602- | CD | M14X11 | ||
| 672 | 8-97362 467-0 | BLOCK SHIFT,T/M CONTROL | 1 | 1602- | E | (A) | ||
| 261 | 8-97257 909-0 | ROD GEAR CONT | 1 | 1602- | BCD | |||
| 705 | 8-98236 473-0 | HEAD GEAR SHIFT | 1 | 1602- | F | (A) | ||
| 51 | 8-98186 703-0 | BLOCK SHIFT,1ST & 2ND | 1 | 1602- | E | 4302 | ||
| 27 | 8-89048 304-0 | BUSHING SHIFT ROD | 1 | 1602- | F | 4317 | ||
| 234 | 8-94460 357-0 | RING SNAP | 4 | 1602- | E | 04.307 (A) ID=12 | ||
| 398 | 8-98103 750-0 | SWITCH REV LAMP | 1 | 1602- | B | 4X2(TFB***) EXC. CONGO EQUIPMENT(CDF) | ||
| 161 | 8-94239 543-1 | PLUG INTER LK HOLE | 1 | 1602- | ABCD | |||
| 31 | 8-97362 435-0 | ARM SHIFT,LOW & 2ND | 1 | 1602- | E | |||
| 579 | 8-98095 657-0 | BLOCK SHIFT,ROD GUIDE | 1 | 1602- | E | |||
| 142 | 8-97365 376-0 | BOLT QUAD BOX | 4 | 1602- | ABCD | 04 .356 M8X22 FLANGE | ||
| 459 | 8-97184 905-0 | PIN SPR,ROD TO ARM | 1 | 1602- | ABCD | OD= 5 | ||
| 101 | 8-97232 894-0 | ARM SHIFT,REV & 5TH | 1 | 1602- | BC | IDENTIFICATION LABEL FOR KD | ||
| 172 | 8-94462 114-0 | GASKET NEUTRAL SW | 1 | 1602- | BCD | 04.075 ID=14.2 | ||
| 313 | 8-98203 168-0 | ROLLER SHAFT | 1 | 1602- | F | |||
| 30 | 5-33534 002-1 | PIN INTER LK | 2 | 1602- | ABCD | OD= 5.5 L=10 | ||
| 552 | 8-98203 147-0 | BRACKET | 1 | 1602- | F | (C) | ||
| 637 | 8-98203 256-0 | BOLT BRACKET | 1 | 1602- | F | |||
| 673 | 8-97362 853-0 | BEARING SHIFT ARM | 2 | 1602- | E | .474305556 | ||
| 101 | 8-97232 894-0 | ARM SHIFT,REV & 5TH | 1 | 1602- | D | |||
| 197 | 8-94448 753-0 | INHIBITOR REV SHIFT | 1 | 1602- | BCD | |||
| 580 | 8-97362 461-1 | BLOCK INTERLOCK | 1 | 1602- | E | (A) | ||
| 163 | 8-98052 461-0 | LEVER SELECT,INTERNAL | 2 | 1602- | E | |||
| 100 | 8-97232 885-0 | ROD SHIFT,REV & 5TH | 1 | 1602- | A | |||
| 410 | 9-09571 414-0 | GASKET REV SW | 1 | 1602- | BCD | 08.955 ID=14.2 OD=2 0.0 | ||
| 411 | 8-94462 114-0 | GASKET REV LAMP SW | 1 | 1602- | A | 04.075 ID=14.2 | ||
| 476 | 8-94171 541-0 | PIN SHIFT ROD | 4 | 1602- | E | 04.303 (A) D=4.2 L=25 | ||
| 636 | 8-97375 643-0 | BRACKET CLIP | 1 | 1602- | F | 02 . 343 ID=22 L=35 | ||
| 204 | 8-98035 673-0 | STOPPER REV INHIBITOR | 1 | 1602- | BCD | |||
| 157 | 8-98094 798-1 | BOX QUAD,TRANS | 1 | 1602- | E | |||
| 171 | 8-98203 248-0 | SWITCH NEUTRAL | 1 | 1602- | F | |||
| 78 | 8-97362 434-1 | ARM SHIFT,REV | 1 | 1602- | E | |||
| 90 | 8-94460 357-0 | RING SNAP,SHIFT ROD | 3 | 1602- | E | ID=12 | ||
| 96 | 8-97232 886-0 | ROD SHIFT,5TH | 1 | 1602- | BC | IDENTIFICATION LABEL FOR KD | ||
| 551 | 8-94171 541-0 | PIN SPRING | 2 | 1602- | E | D=4.2 L=25 | ||
| 218 | 8-98203 245-0 | BRACKET HARNESS CLIP,QUAD BOX | 1 | 1602- | F | |||
| 158 | 8-97367 984-1 | CLIP HARNESS | 2 | 1602- | A | 03.671 ID=12 VINYL CHLORIDE | ||
| 61 | 8-98203 150-0 | ARM SHIFT,3RD & 4TH | 1 | 1602- | F | |||
| 195 | 8-97250 975-0 | BOLT | 1 | 1602- | E | (A) M8X8.5 TAPER | ||
| 31 | 8-94421 912-2 | ARM SHIFT,LOW & 2ND | 1 | 1602- | BCD | |||
| 706 | 8-98203 161-0 | FORK GEAR SHIFT | 1 | 1602- | F | |||
| 200 | 8-94448 807-0 | SPRING REV INHIBITOR,COMP | 1 | 1602- | BCD | |||
| 234 | 8-98203 176-0 | RING SNAP | 1 | 1602- | F | (B) | ||
| 485 | 8-98203 178-0 | TROUGH OIL | 1 | 1602- | F | 4X2(TFB***) | ||
| 289 | 8-98017 744-0 | SEAL OIL,CONT SHAFT,QUAD BOX | 1 | 1602- | ABCD | |||
| 248 | 8-98203 143-0 | RETAINER CONT BOX | 1 | 1602- | F | |||
| 500 | 9-09571 414-0 | GASKET SW | 2 | 1602- | E | 08.955 ID=14.2 OD=2 0.0 | ||
| 146 | 0-28650 820-0 | BOLT REV INHIBITOR | 1 | 1602- | BC | IDENTIFICATION LABEL FOR KD< 01.531 M8X2 0 FLANGE | ||
| 476 | 8-97164 925-0 | PIN SHIFT ROD | 2 | 1602- | F | 04 .303 (D) | ||
| 570 | 8-98203 166-0 | PIN SHIFT LEVER | 1 | 1602- | F | |||
| 702 | 8-98203 159-0 | ROD REVERSE | 1 | 1602- | F | |||
| 561 | 8-98095 659-1 | ROD SHIFT | 1 | 1602- | E | |||
| 398 | 8-98180 973-0 | SWITCH REV LAMP | 1 | 1602- | E | |||
| 398 | 8-98208 758-0 | SWITCH REV LAMP | 1 | 1602- | F | |||
| 99 | 8-97362 439-2 | ARM SHIFT,4TH & 3RD | 1 | 1602- | E | 4303 | ||
| 91 | 8-97164 994-0 | PIN SPR,SHIFT ARM | 1 | 1602- | F | |||
| 666 | 8-97362 442-2 | ROD GEAR SHIFT,3RD,4TH & 4TH | 1 | 1602- | E | |||
| 146 | 0-28050 820-0 | BOLT REV INHIBITOR | 1 | 1602- | BC | EXC. IDENTIFICATION LABEL F > 04 . 338 M8X2 0 FLANGE | ||
| 93 | 8-98106 035-0 | BLOCK SHIFT,REV & 5TH | 1 | 1602- | E | |||
| 268 | 8-97184 894-0 | LEVER CONT,INTERNAL | 1 | 1602- | A | |||
| 406 | 0-28050 816-0 | BOLT HARNESS CLIP | 1 | 1602- | A | 02 . 343 M8X16 FLANGE | ||
| 89 | 8-98106 032-0 | ROD SHIFT,REV | 1 | 1602- | E | |||
| 195 | 8-97164 962-0 | BOLT | 2 | 1602- | F | (E) | ||
| 165 | 8-98203 142-0 | LEVER SHIFT | 1 | 1602- | F | 4X2(TFB***) (B) | ||
| 561 | 8-98203 163-0 | ROD SHIFT | 1 | 1602- | F | 4X2 (TFB***) | ||
| 222 | 8-98203 246-0 | BRACKET CLIP | 1 | 1602- | F | |||
| 78 | 8-98203 149-0 | ARM SHIFT,REV | 1 | 1602- | F | |||
| 398 | 8-98103 750-0 | SWITCH REV LAMP | 1 | 1602- | B | 4X4(TFS***) | ||
| 476 | 8-98203 173-0 | PIN SHIFT ROD | 2 | 1602- | F | (C) | ||
| 101 | 8-94455 851-3 | ARM SHIFT,REV & 5TH | 1 | 1602- | A | |||
| 6 | 8-98095 658-1 | LEVER RELAY | 1 | 1602- | E | |||
| 62 | 8-98203 157-0 | ROD SHIFT,3RD & 4TH | 1 | 1602- | F | |||
| 407 | 8-97367 984-1 | CLIP SWITCH HARNESS | 1 | 1602- | A | 03.671 ID=12 VINYL CHLORIDE | ||
| 535 | 8-98203 170-0 | SPRING LEVER | 1 | 1602- | F | |||
| 38 | 8-98203 171-0 | SPRING DETENT | 4 | 1602- | F | |||
| 148 | 8-97184 922-0 | GASKET QUAD BOX | 1 | 1602- | A | |||
| 146 | 0-28650 820-0 | BOLT REV INHIBITOR | 1 | 1602- | D | 01.531 M8X2 0 FLANGE | ||
| 552 | 8-98203 151-0 | BRACKET | 1 | 1602- | F | (B) | ||
| 476 | 8-98203 172-0 | PIN SHIFT ROD | 2 | 1602- | F | (B) | ||
| 552 | 8-97362 465-1 | BRACKET | 1 | 1602- | E | (A) | ||
| 96 | 8-97232 886-0 | ROD SHIFT,5TH | 1 | 1602- | D | |||
| 261 | 8-97362 444-0 | ROD GEAR CONT | 1 | 1602- | E | |||
| 398 | 8-98254 591-0 | SWITCH REV LAMP | 1 | 1602- | B | 4X2(TFB***) CONGO EQUIPMENT(CDF) | ||
| 561 | 8-98203 162-0 | ROD SHIFT | 1 | 1602- | F | 4X4 (TFS***) | ||
| 171 | 8-98103 743-0 | SWITCH NEUTRAL | 1 | 1602- | B | |||
| 705 | 8-98203 155-0 | HEAD GEAR SHIFT | 1 | 1602- | F | (B) | ||
| 398 | 8-98103 750-0 | SWITCH REV LAMP | 1 | 1602- | A C |
