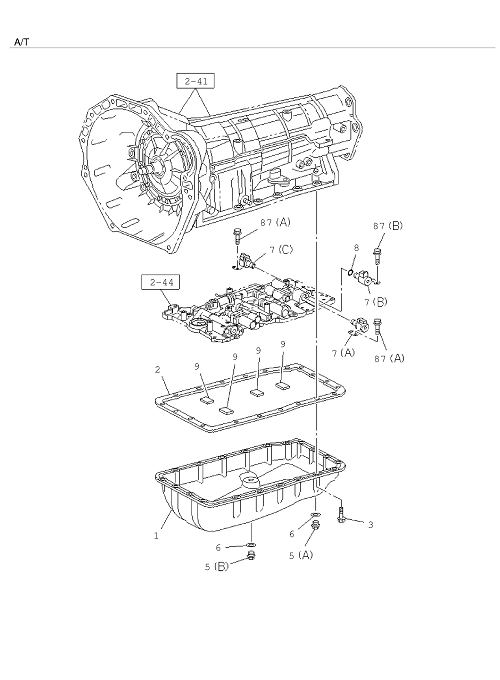

2-42 | AUTO TRANS OIL PAN AND OIL CONTROL
DMAX
D-MAX 2016
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 87 | 8-94405 335-0 | BOLT SOLENOID | 3 | 1602- | G | 04 . 197 (A) M5X12 | ||
| 7 | 8-98189 501-0 | SOLENOID DOWN SHIFT,A/T | 1 | 1602- | G | (A) | ||
| 2 | 8-98189 738-0 | GASKET OIL PAN,A/T | 1 | 1602- | G | |||
| 1 | 8-98197 897-0 | PAN ASM OIL,A/T | 1 | 1602- | G | 4JK1-TCY ENG(RDX) | ||
| 5 | 8-97367 573-0 | PLUG OIL PAN | 1 | 1602- | G | (A) M10X9 | ||
| 6 | 5-34132 002-0 | GASKET OIL PAN TO PLUG | 2 | 1602- | G | ID=12 | ||
| 7 | 8-98189 502-0 | SOLENOID DOWN SHIFT,A/T | 1 | 1602- | G | (B) | ||
| 1 | 8-98209 424-0 | PAN ASM OIL,A/T | 1 | 1602- | G | 4JK1-TCX ENG(LR0),4JJ1-TCX | ||
| 3 | 8-98189 751-0 | BOLT OIL PAN TO CASE | 20 | 1602- | G | M6X15 | ||
| 5 | 8-98189 752-0 | PLUG OIL PAN | 1 | 1602- | G | (B) M10X9 | ||
| 7 | 8-98189 503-0 | SOLENOID DOWN SHIFT,A/T | 1 | 1602- | G | (C) | ||
| 9 | 5-34138 004-0 | MAGNET OIL PAN | 4 | 1602- | G | |||
| 8 | 8-94480 101-0 | GASKET DOWN SHIFT SOLENOID,A/T | 1 | 1602- | G | ID=6.1 | ||
| 87 | 8-94479 927-0 | BOLT SOLENOID | 1 | 1602- | G | (B) M6X12 |
