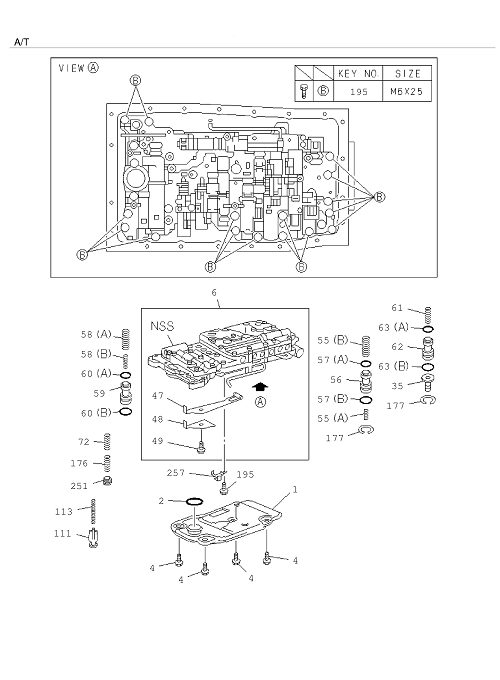

2-44 | AUTO TRANS CONTROL VALVE LOWER BODY
DMAX
D-MAX 2016
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 49 | 8-98189 500-0 | BOLT DETENT SPR PLATE,A/T | 1 | 1602- | G | M6X14 | ||
| 176 | 8-98189 482-0 | SPRING ACCUM INNER | 1 | 1602- | G | |||
| 58 | 8-98189 479-0 | SPRING DIRECT CLU (C-2 ACCUM),A | 1 | 1602- | G | (B) | ||
| 57 | 8-97184 889-0 | GASKET 2ND SPD PISTON,A/T | 1 | 1602- | G | 04.167 (A) ID=24 | ||
| 63 | 8-98189 736-0 | GASKET FWD CLU,A/T | 1 | 1602- | G | (B) ID=29 | ||
| 113 | 8-94479 930-0 | SPRING CHECK BALL | 1 | 1602- | G | |||
| 177 | 8-97025 821-0 | RING SNAP | 2 | 1602- | G | ID=19 | ||
| 55 | 8-98189 481-0 | SPRING ACCUMLATOR PISTON | 1 | 1602- | G | (B) | ||
| 72 | 8-98189 483-0 | SPRING ACCUMLATOR PISTON | 1 | 1602- | G | |||
| 4 | 8-94479 927-0 | BOLT OIL STRAINER,A/T | 4 | 1602- | G | 04 .265 M6X12 | ||
| 62 | 8-98189 733-0 | PISTON FWD CLU,A/T | 1 | 1602- | G | |||
| 47 | 8-98189 498-0 | SPRING DETENT,A/T | 1 | 1602- | G | |||
| 59 | 8-98189 734-0 | PISTON DIRECT CLU,A/T | 1 | 1602- | G | |||
| 2 | 8-98189 732-0 | GASKET OIL STRAINER,A/T | 1 | 1602- | G | |||
| 195 | 8-94473 624-0 | BOLT CLAMP | 16 | 1602- | G | M6X25 | ||
| 6 | 8-98189 497-0 | BODY ASM VLV LWR,A/T | 1 | 1602- | G | |||
| 111 | 8-94479 931-0 | BODY CHECK BALL | 1 | 1602- | G | |||
| 56 | 8-98189 735-0 | PISTON ACCUMLATOR | 1 | 1602- | G | |||
| 63 | 8-97184 885-0 | GASKET FWD CLU,A/T | 1 | 1602- | G | 04 .241 (A) ID=20 | ||
| 1 | 8-98189 731-0 | STRAINER ASM OIL,A/T | 1 | 1602- | G | |||
| 61 | 8-98189 478-0 | SPRING FWD CLU,(C-1 ACUUM),A/T | 1 | 1602- | G | |||
| 55 | 8-98189 480-0 | SPRING ACCUMLATOR PISTON | 1 | 1602- | G | (A) | ||
| 57 | 8-98189 737-0 | GASKET 2ND SPD PISTON,A/T | 1 | 1602- | G | (B) ID=34 | ||
| 257 | 8-98189 740-0 | CLAMP HARNESS | 1 | 1602- | G | |||
| 35 | 8-98189 477-0 | SPRING LWR VLV BODY | 1 | 1602- | G | |||
| 251 | 8-98189 739-0 | VALVE ACCUMULATOR | 1 | 1602- | G | |||
| 60 | 8-98189 737-0 | GASKET DIRECT CLU PISTON,A/T | 1 | 1602- | G | 04 .241 (B) ID=34 | ||
| 60 | 8-97184 886-0 | GASKET DIRECT CLU PISTON,A/T | 1 | 1602- | G | 04 .241 (A) ID=27 | ||
| 58 | 8-97184 330-0 | SPRING DIRECT CLU (C-2 ACCUM),A | 1 | 1602- | G | (A) | ||
| 48 | 8-98189 499-0 | PLATE DETENT SPR,A/T | 1 | 1602- | G |
