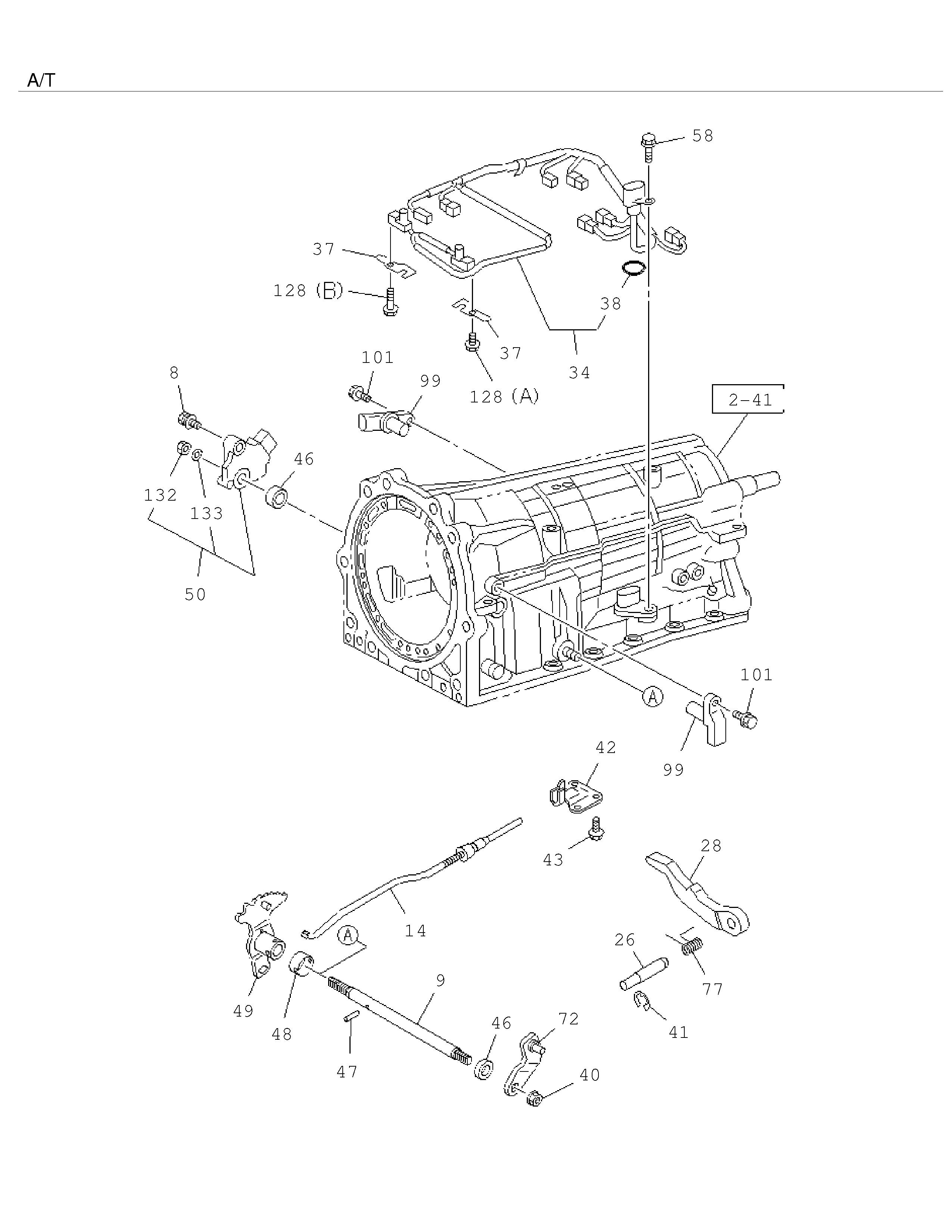

2-49 | AUTO TRANS INHIBITOR SWITCH
DMAX
D-MAX 2016
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 28 | 8-98189 507-0 | PAWL PARKING,A/T | 1 | 1602- | G | |||
| 37 | 8-98189 741-0 | CLAMP SOLENOID,A/T | 2 | 1602- | G | |||
| 48 | 8-97362 483-0 | COVER SLEEVE | 1 | 1602- | G | |||
| 42 | 8-98189 509-0 | BRACKET PARKING LOCK | 1 | 1602- | G | |||
| 26 | 8-98189 505-0 | SHAFT PARKING PAWL,A/T | 1 | 1602- | G | |||
| 128 | 8-94473 630-0 | BOLT CLAMP | 4 | 1602- | G | 04 .265 (A) M6X36 | ||
| 14 | 8-98189 508-0 | ROD ASM PARKING,A/T | 1 | 1602- | G | |||
| 40 | 0-91180 108-0 | NUT LEVER TO SHAFT | 1 | 1602- | G | 01.062 M8 FLANGE | ||
| 132 | 8-97354 883-0 | NUT SWITCH | 1 | 1602- | G | M16 | ||
| 43 | 8-94479 978-0 | BOLT BRKT | 3 | 1602- | G | M6X14 | ||
| 72 | 8-98077 401-0 | LEVER SELECT CONT | 1 | 1602- | G | |||
| 77 | 8-98189 506-0 | SPRING TORSION,PARKING BRK LK,A | 1 | 1602- | G | |||
| 34 | 8-98189 470-0 | SOLENOID ASM A/T | 1 | 1602- | G | |||
| 41 | 5-34488 002-0 | RETAINER SPR,SHAFT | 1 | 1602- | G | |||
| 128 | 8-94479 927-0 | BOLT CLAMP | 1 | 1602- | G | 04 .265 (B) M6X12 | ||
| 133 | 8-97354 889-0 | WASHER SWITCH | 1 | 1602- | G | ID=16 | ||
| 8 | 8-97130 929-0 | BOLT NEUTRAL START SW,A/T | 1 | 1602- | G | M8X30 | ||
| 38 | 8-98189 471-0 | GASKET SOLENOID INNER | 1 | 1602- | G | ID=22 | ||
| 101 | 8-94479 978-0 | BOLT SPD SENSOR | 2 | 1602- | G | 04.290 M6X14 | ||
| 50 | 8-98189 469-0 | SWITCH NEUTRAL,A/T | 1 | 1602- | G | |||
| 47 | 8-94257 081-0 | PIN ROLL SHAFT | 1 | 1602- | G | 04.052 D=4 | ||
| 58 | 8-94479 712-0 | BOLT SOLENOID TO A/T | 1 | 1602- | G | 04.050 M6X16 | ||
| 99 | 8-98189 474-0 | SENSOR SPD | 2 | 1602- | G | |||
| 9 | 8-98189 472-0 | SHAFT MANUAL,A/T | 1 | 1602- | G | |||
| 49 | 8-98189 504-0 | LEVER ASM CAM | 1 | 1602- | G | |||
| 46 | 8-94479 740-0 | SEAL OIL | 2 | 1602- | G | 04.027 OD=22 |
