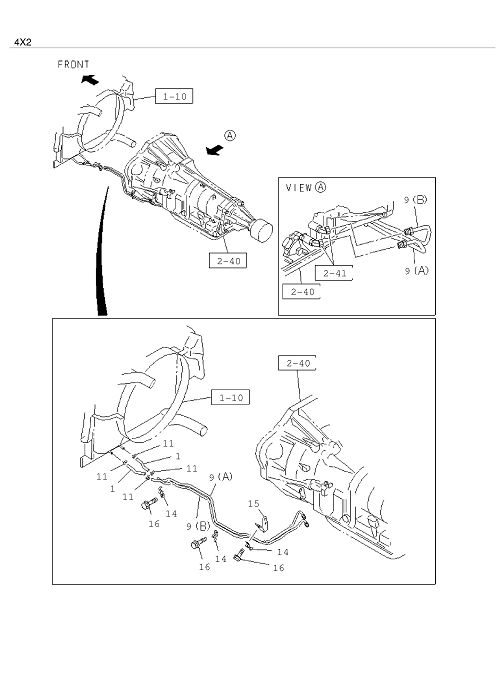

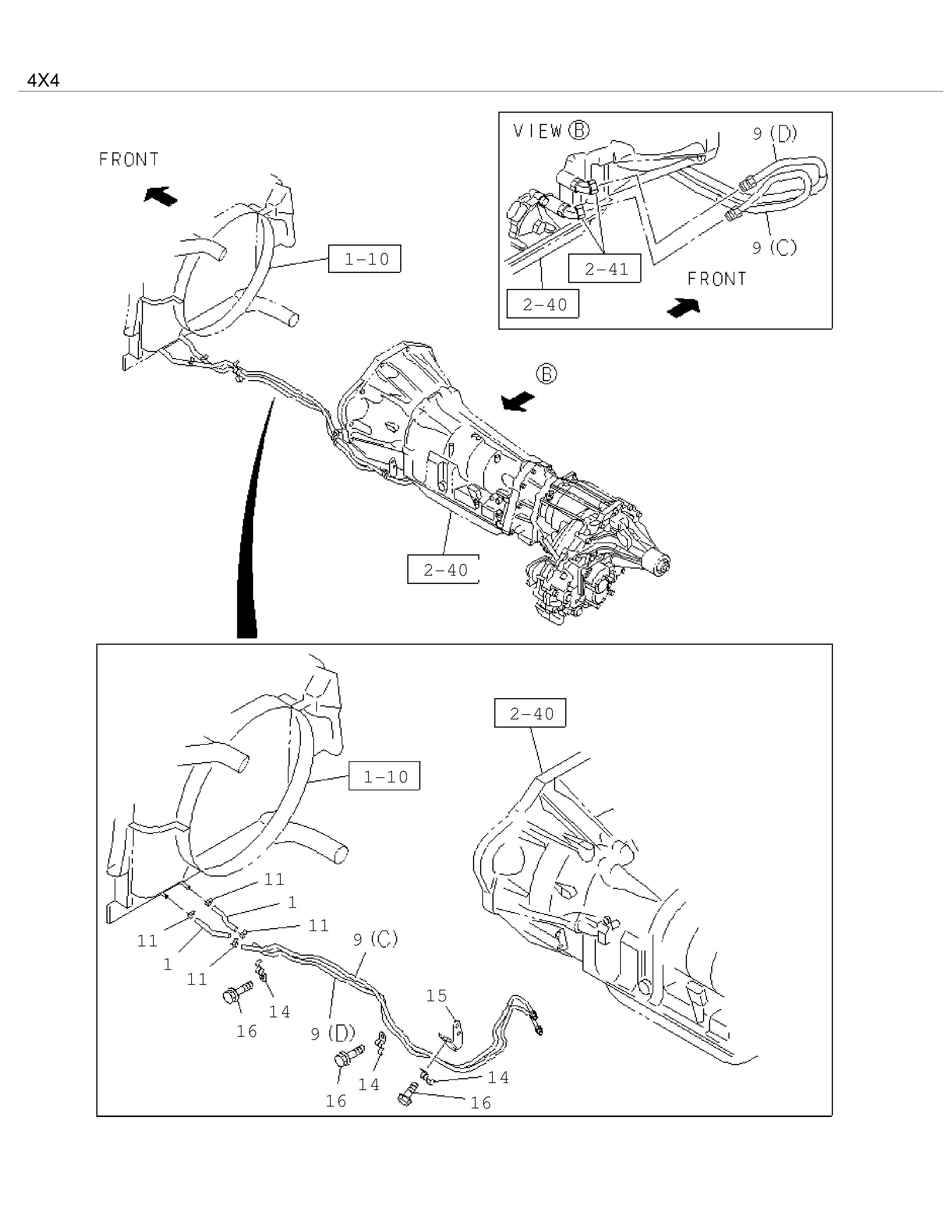

2-53 | TRANSMISSION OIL COOLER SYSTEM
DMAX
D-MAX 2016
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 9 | 8-98221 532-2 | PIPE ATF,INL,A/T | 1 | 1602- | G | 4X4 (TFS***) 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) (D) RETURN | ||
| 9 | 8-98100 272-2 | PIPE ATF,INL,A/T | 1 | 1602- | G | 4X2 (TFB***) 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) (A) INLET | ||
| 9 | 8-98289 240-1 | PIPE ATF,INL,A/T | 1 | 1602- | G | 4X4 (TFS***) 4JK1-TCY ENG(RDX) (C) INLET | ||
| 9 | 8-98221 531-2 | PIPE ATF,INL,A/T | 1 | 1602- | G | 4X4 (TFS***) 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) (C) INLET | ||
| 9 | 8-98289 242-1 | PIPE ATF,INL,A/T | 1 | 1602- | G | 4X2 (TFB***) 4JK1-TCY ENG(RDX) (B) RETURN | ||
| 14 | 8-98232 374-0 | CLIP PIPE TO ENG SIDE | 1 | 1602- | G | 4X4(TFS***) 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) (B) | ||
| 16 | 0-28050 816-0 | BOLT CLIP,ENG SIDE | 3 | 1602- | G | 02.343 M8X16 FLANGE | ||
| 9 | 8-98289 243-1 | PIPE ATF,INL,A/T | 1 | 1602- | G | 4X4 (TFS***) 4JK1-TCY ENG(RDX) (D) RETURN | ||
| 11 | 8-98008 165-0 | CLIP PIPE | 4 | 1602- | G | |||
| 14 | 8-98008 163-0 | CLIP PIPE TO ENG SIDE | 3 | 1602- | G | 4X2 (TFB***) (A) | ||
| 9 | 8-98100 274-2 | PIPE ATF,INL,A/T | 1 | 1602- | G | 4X2 (TFB***) 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) (B) RETURN | ||
| 9 | 8-98289 239-1 | PIPE ATF,INL,A/T | 1 | 1602- | G | 4X2 (TFB***) 4JK1-TCY ENG(RDX) (A) INLET | ||
| 14 | 8-98008 163-0 | CLIP PIPE TO ENG SIDE | 3 | 1602- | G | 4X4 (TFS***) 4JK1-TCY ENG(RDX) (A) | ||
| 1 | 0-02259 300-0 | HOSE ATF | 2 | 1602- | G | L=180 SERVICED BY L=3000 | ||
| 14 | 8-98008 163-0 | CLIP PIPE TO ENG SIDE | 2 | 1602- | G | 4X4 (TFS***) 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) (A) | ||
| 15 | 8-98100 277-0 | BRACKET ATF PIPE | 1 | 1602- | G |
