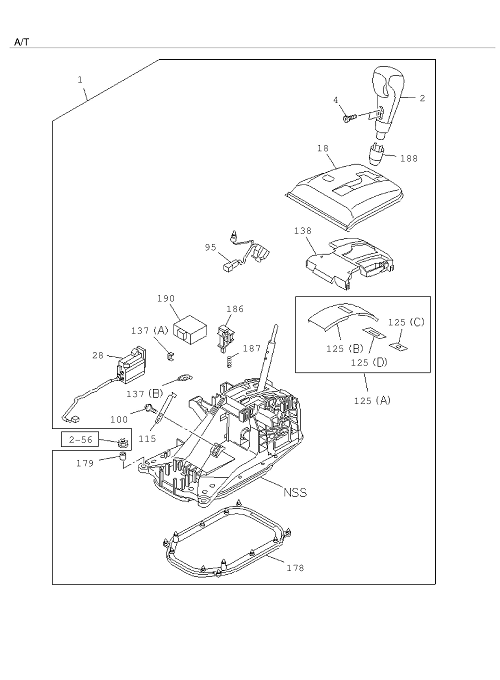

2-55 | AUTO TRANS SHIFT CONTROL LEVER
DMAX
D-MAX 2016
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 2 | 8-97466 149-0 | KNOB ASM AUTO CONT LEVER | 1 | 1602- | G | SILVER | ||
| 190 | 8-98163 217-0 | CONTROLLER INTERLOCK | 1 | 1602- | G | |||
| 18 | 8-97421 015-1 | COVER INDICATOR,UPR | 1 | 1602- | G | BLACK | ||
| 1 | 8-97466 313-5 | LEVER SHIFT,A/T | 1 | 1602- | G | SILVER | ||
| 115 | 8-98163 220-0 | PLATE SPR,LEVER | 1 | 1602- | G | |||
| 187 | 8-98163 182-0 | SPRING RETURN,SHIFT | 1 | 1602- | G | |||
| 138 | 8-98173 049-1 | BOX LAMP | 1 | 1602- | G | |||
| 125 | 8-98163 186-0 | COVER SHIFT LEVER | 1 | 1602- | G | (C) | ||
| 137 | 8-98163 222-0 | CUSHION | 1 | 1602- | G | (A) | ||
| 95 | 8-98163 211-0 | LAMP INDICATOR | 1 | 1602- | G | |||
| 186 | 8-97421 016-0 | BUTTON SHIFT LOCK | 1 | 1602- | G | BLACK | ||
| 100 | 8-98163 221-0 | SCREW | 1 | 1602- | G | |||
| 137 | 8-98163 223-0 | CUSHION | 1 | 1602- | G | (B) | ||
| 125 | 8-98163 185-0 | COVER SHIFT LEVER | 1 | 1602- | G | (A) | ||
| 4 | 8-98163 219-0 | SCREW KNOB TO LEVER | 2 | 1602- | G | |||
| 125 | 8-98163 187-0 | COVER SHIFT LEVER | 1 | 1602- | G | (B) | ||
| 178 | 8-98163 225-0 | SHEET SHIFT LEVER | 1 | 1602- | G | |||
| 188 | 8-98163 209-0 | COVER KNOB | 1 | 1602- | G |
