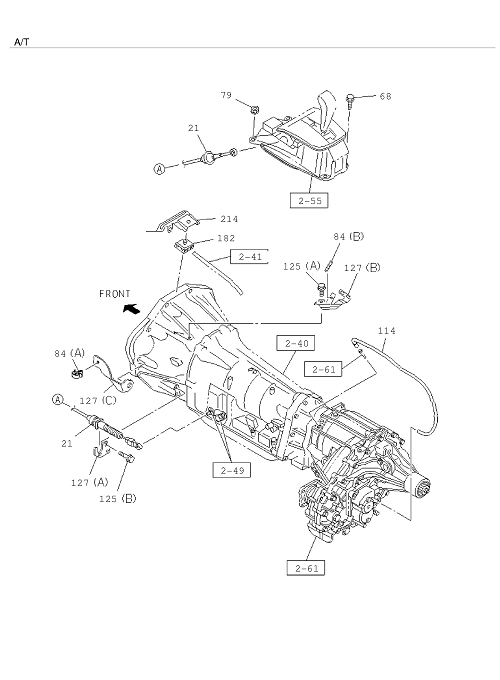

2-56 | AUTO TRANS CONTROL LINK
DMAX
D-MAX 2016
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 84 | 8-97369 561-0 | CLIP A/T CONT CABLE | 1 | 1602- | G | 03 .682 (B) ID=7 L= 7.5 | ||
| 127 | 8-98098 411-1 | BRACKET A/T CONT CABLE | 1 | 1602- | G | (B) | ||
| 127 | 8-98098 410-1 | BRACKET A/T CONT CABLE | 1 | 1602- | G | (C) | ||
| 84 | 8-94450 392-0 | CLIP A/T CONT CABLE | 1 | 1602- | G | 02.559 (A) ID=10 | ||
| 127 | 8-98098 409-0 | BRACKET A/T CONT CABLE | 1 | 1602- | G | (A) | ||
| 79 | 8-98055 704-0 | NUT CONT CABLE | 2 | 1602- | G | 08.915 M6 FLANGE | ||
| 125 | 0-28050 810-0 | BOLT BRKT | 1 | 1602- | G | 03 .407 (A) M8X10 FLANGE | ||
| 21 | 8-98072 710-1 | CABLE A/T | 1 | 1602- | G | |||
| 68 | 0-28650 620-0 | BOLT A/T CONT CABLE | 2 | 1602- | G | 03.162 M6X20 FLANGE | ||
| 125 | 0-28050 816-0 | BOLT BRKT | 2 | 1602- | G | 02 .343 (B) M8X16 FLANGE | ||

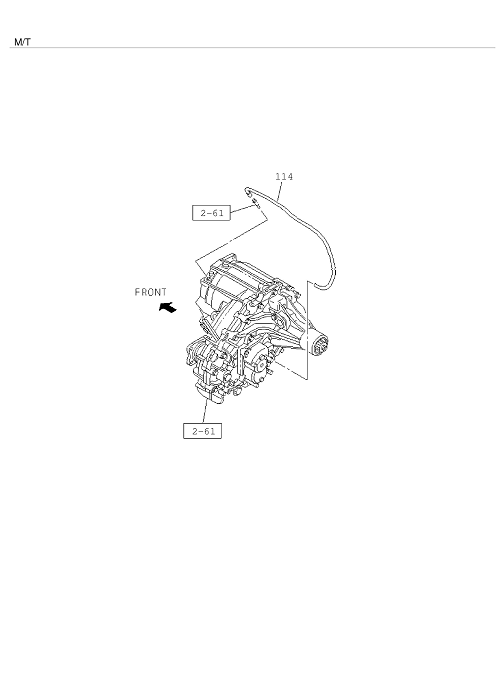

| 114 | 8-98183 634-0 | HOSE BREATHER | 1 | 1602- | G | 4X4 (TFS***) L=52 7 |
