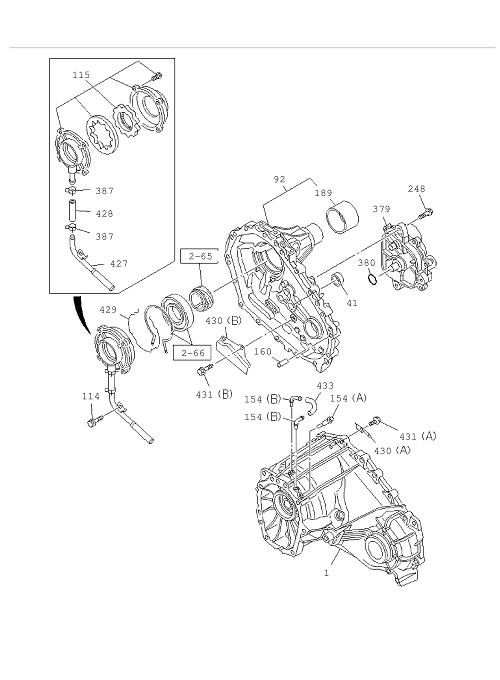

2-61 | TRANSFER CASE AND GEAR SHIFTER
DMAX
D-MAX 2016
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 431 | 0-28650 616-0 | BOLT BAFFLE PLATE | 1 | 1602- | DEF | 02.343 (A) M6X16 FLANGE | ||
| 160 | 8-97135 423-0 | PIN KNOCK,SHIFT CASE | 2 | 1602- | DEF | 04.510 OD=10 L=20 | ||
| 430 | 8-98063 360-0 | PLATE BAFFLE | 1 | 1602- | DEF | (B) | ||
| 431 | 0-28650 820-0 | BOLT BAFFLE PLATE | 2 | 1602- | DEF | 01.531 (B) M8X2 0 FLANGE | ||
| 1 | 8-98177 505-0 | CASE TRANSFER | 1 | 1602- | DEF | |||
| 380 | 8-97318 475-0 | GASKET ACTUATOR | 1 | 1602- | DEF | ID=29.7 OD=3 6.7 | ||
| 115 | 8-98029 157-0 | PUMP ASM OIL,TRANSFER | 1 | 1602- | DEF | |||
| 430 | 8-97239 130-0 | PLATE BAFFLE | 1 | 1602- | DEF | (A) | ||
| 387 | 8-97329 628-0 | CLAMP HOSE | 2 | 1602- | DEF | 01.097 ID=16 | ||
| 41 | 8-97238 998-0 | SEAL OIL,SHIFT ROD | 1 | 1602- | DEF | |||
| 429 | 8-97240 666-0 | RING SNAP,OIL PUMP | 1 | 1602- | DEF | |||
| 92 | 8-98118 921-0 | COVER RR,TRANSFER | 1 | 1602- | DEF | |||
| 379 | 8-98196 415-0 | ACTUATOR TRANSFER,2-4 SHIFT | 1 | 1602- | DEF | |||
| 248 | 0-28650 830-0 | BOLT | 3 | 1602- | DEF | 03.403 M8X3 0 FLANGE | ||
| 154 | 8-97358 319-0 | PIPE BREATHER | 1 | 1602- | DEF | (A) | ||
| 114 | 0-28650 820-0 | BOLT OIL PUMP,TRANSFER | 1 | 1602- | DEF | 01.531 M8X2 0 FLANGE | ||
| 154 | 8-97358 318-0 | PIPE BREATHER | 2 | 1602- | DEF | (B) | ||
| 427 | 8-98063 358-0 | SCREEN OIL PUMP | 1 | 1602- | DEF | |||
| 189 | 8-98173 748-0 | COVER DUST,OIL SEAL | 1 | 1602- | DEF | |||
| 428 | 8-98064 220-0 | HOSE OIL PUMP | 1 | 1602- | DEF | L=50 | ||
| 433 | 8-97236 080-0 | HOSE AIR,TRANSFER | 1 | 1602- | DEF |
