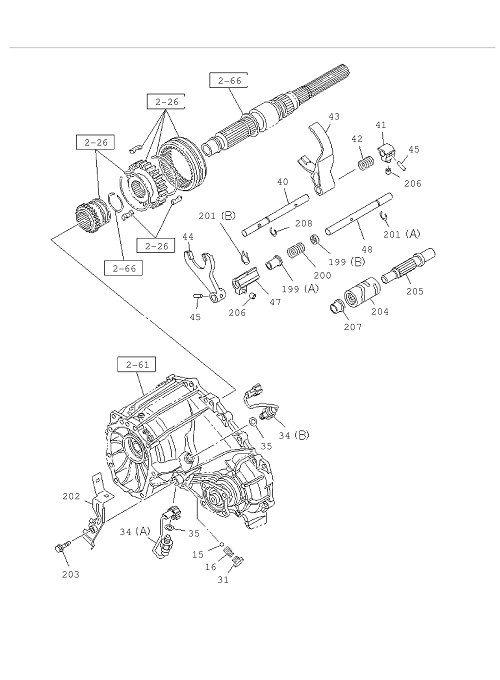

2-62 | TRANSFER SIDE CASE AND SHIFT LEVER
DMAX
D-MAX 2016
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 202 | 8-98118 922-1 | BRACKET SWITCH | 1 | 1602- | DEF | |||
| 208 | 8-94460 357-0 | RING SNAP,SHIFT | 1 | 1602- | DEF | 04.307 ID=12 | ||
| 41 | 8-97234 233-1 | BLOCK SHIFT,4X2-4X4,TRANSFER | 1 | 1602- | DEF | |||
| 200 | 8-97239 011-0 | SPRING SHIFT HIGH-LOW | 1 | 1602- | DEF | |||
| 45 | 8-94171 541-0 | PIN SPR,SHIFT ARM TO ROD | 2 | 1602- | DEF | D=4.2 L=25 | ||
| 199 | 8-97234 663-1 | COLLAR TRANSFER CONTROL | 1 | 1602- | DEF | (B) | ||
| 44 | 8-98331 855-0 | ARM SHIFT,HIGH-LOW,TRANSFER | 1 | 1602- | DEF | |||
| 43 | 8-97234 231-0 | ARM SHIFT,4X2-4X4,TRANSFER | 1 | 1602- | DEF | |||
| 205 | 8-98063 364-1 | SHAFT SHIFT DRUM | 1 | 1602- | DEF | |||
| 207 | 8-98158 124-0 | BUSH CONTROL SHAFT | 1 | 1602- | DEF | |||
| 16 | 8-97145 374-0 | SPRING DETENT,SHIFT ROD,TRANSFE | 2 | 1602- | DEF | L=2 3.4 | ||
| 40 | 8-97234 229-0 | ROD SHIFT,4X2-4X4,TRANSFER | 1 | 1602- | DEF | |||
| 206 | 8-97234 499-0 | ROLLER GUIDE,SHIFT | 2 | 1602- | DEF | |||
| 48 | 8-97234 230-0 | ROD SHIFT,HIGH-LOW,TRANSFER | 1 | 1602- | DEF | |||
| 199 | 8-97234 662-1 | COLLAR TRANSFER CONTROL | 1 | 1602- | DEF | (A) | ||
| 42 | 8-97239 010-1 | SPRING GEAR LOCK RELEASE,TRANSF | 1 | 1602- | DEF | |||
| 31 | 0-92002 412-0 | PLUG DETENT BALL,TRANSFER | 2 | 1602- | DEF | M12X9 | ||
| 15 | 8-94435 335-0 | BALL DETENT,SHIFT ROD,TRANSFER | 2 | 1602- | DEF | |||
| 34 | 8-98181 233-0 | SWITCH TRANSFER INDICATOR | 1 | 1602- | DEF | (A) PUSH OFF | ||
| 34 | 8-98181 234-0 | SWITCH TRANSFER INDICATOR | 1 | 1602- | DEF | (B) PUSH ON | ||
| 201 | 8-97305 011-1 | RING SNAP,SHIFT | 1 | 1602- | DEF | (B) ID=23 | ||
| 35 | 9-09571 414-0 | GASKET INDICATOR SWITCH,TRANSFE | 2 | 1602- | DEF | 08.955 ID=14.2 OD=2 0.0 | ||
| 201 | 8-94460 357-0 | RING SNAP,SHIFT | 1 | 1602- | DEF | 04.307 (A) ID=12 | ||
| 47 | 8-98161 034-0 | BLOCK SHIFT,LOW-HIGH,TRANSFER | 1 | 1602- | DEF | |||
| 204 | 8-98158 123-0 | DRUM SHIFT | 1 | 1602- | DEF | |||
| 203 | 0-28650 825-0 | BOLT BRACKET,SWITCH | 1 | 1602- | DEF | 06.216 M8X2 5 FLANGE |
