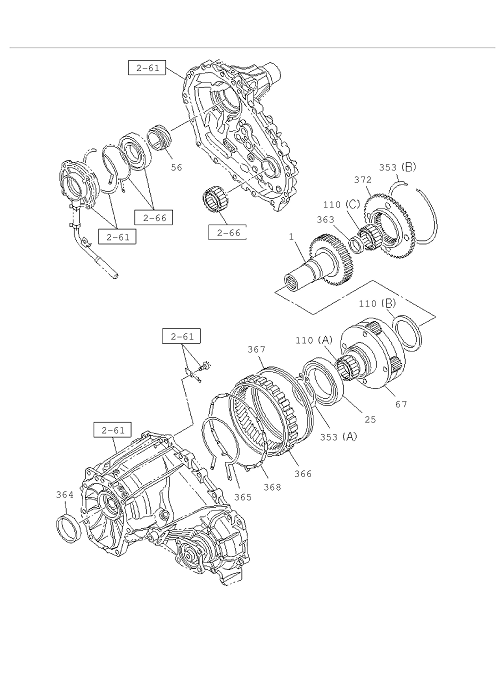

2-65 | MANUAL TRANSFER GEAR INPUT AND IDLE
DMAX
D-MAX 2016
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 372 | 8-97358 244-0 | TEETH DOG,PLANETARY | 1 | 1602- | DEF | 01.462 Z=56 | ||
| 67 | 8-98158 116-0 | CARRIER TRANSFER | 1 | 1602- | DEF | |||
| 364 | 8-97238 999-0 | SEAL OIL,COVER,INPUT | 1 | 1602- | DEF | 04 . 510 NOK | ||
| 353 | 8-97305 406-0 | RING SNAP,CARRIER | 1 | 1602- | DEF | (B) ID=13 7 | ||
| 110 | 8-97234 739-0 | BEARING NEEDLE | 1 | 1602- | DEF | (A) | ||
| 1 | 8-98118 924-1 | SHAFT GEAR,INPUT | 1 | 1602- | DEF | A/T 5 SPEED-AISIN(MA1) | ||
| 110 | 8-97234 741-0 | BEARING NEEDLE | 1 | 1602- | DEF | (B) | ||
| 1 | 8-97373 467-0 | SHAFT GEAR,INPUT | 1 | 1602- | DEF | M/T MUA 5 SPEED 5H(MWQ),M/T MU ED 5S(MZJ) | ||
| 367 | 8-97247 459-0 | RING RETAINING,SPIRAL TYPE | 1 | 1602- | DEF | ID=162 OD=176 | ||
| 353 | 8-97305 403-0 | RING SNAP,CARRIER | 1 | 1602- | DEF | (A) ID=65.5 | ||
| 363 | 8-98156 632-0 | CAP SEAL,INPUT SHAFT | 1 | 1602- | EF | M/T AISIN 6 SPEED(RNU) | ||
| 365 | 8-97305 010-1 | RING RETAINING,OUTER INPUT | 1 | 1602- | DEF | ID=97 | ||
| 363 | 8-97238 725-0 | CAP SEAL,INPUT SHAFT | 1 | 1602- | DEF | A/T 5 SPEED-AISIN(MA1),M/T MUA D 5H(MWQ),M/T MUX 5 SPEED 5S(M | ||
| 368 | 8-97320 914-0 | RING DAMPER,TRANSFER | 1 | 1602- | DEF | ID=16 8.4 OD=178 | ||
| 366 | 8-97231 831-2 | GEAR INTE RNAL,HIGH-LOW | 1 | 1602- | DEF | Z=27 | ||
| 56 | 8-97238 581-0 | GEAR SPD DRIVE,TRANSFER | 1 | 1602- | DEF | Z= 6 | ||
| 1 | 8-98156 637-1 | SHAFT GEAR,INPUT | 1 | 1602- | EF | M/T AISIN 6 SPEED(RNU) | ||
| 110 | 8-97234 743-0 | BEARING NEEDLE | 1 | 1602- | DEF | (C) | ||
| 25 | 8-97234 735-0 | BEARING BALL,INPUT SHAFT | 1 | 1602- | DEF | NSK |
