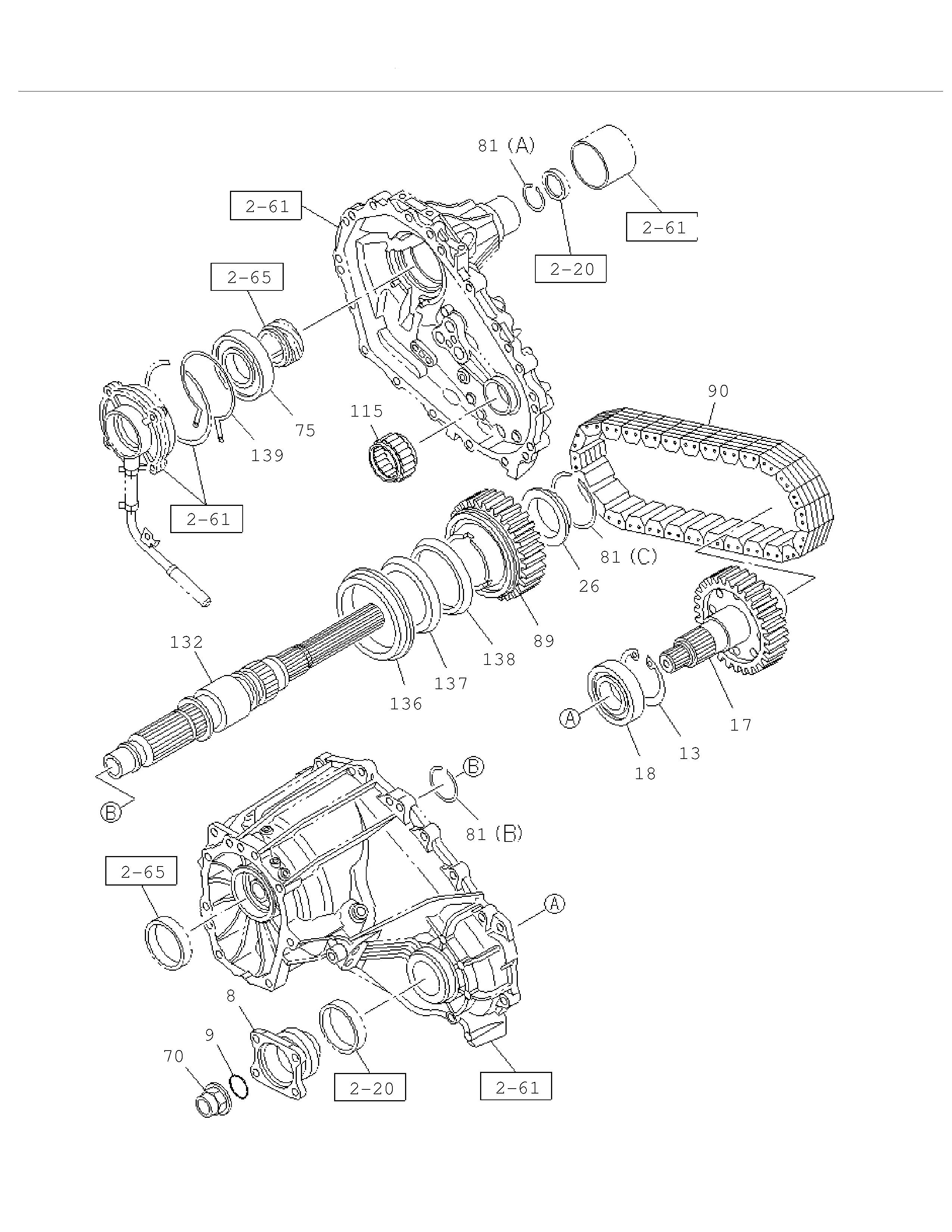

2-66 | MANUAL TRANSFER GEAR OUTPUT
DMAX
D-MAX 2016
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 13 | 8-97305 402-0 | RING SNAP,OUTPUT,FRT | 1 | 1602- | DEF | ID=67 | ||
| 18 | 8-94422 172-1 | BEARING BALL,OUTPUT,FRT | 1 | 1602- | DEF | NSK | ||
| 132 | 8-98013 925-1 | SHAFT MAIN,TRANSFER | 1 | 1602- | DEF | M/T MUA 5 SPEED 5H(MWQ),M/T ED 5S(MZJ),M/T AISIN 6 SPEED Z=34-36-26-27 | ||
| 81 | 8-97305 407-0 | RING SNAP | 1 | 1602- | DEF | (C) T=2.15 RED | ||
| 17 | 8-97231 853-0 | SHAFT OUTPUT | 1 | 1602- | DEF | |||
| 137 | 8-94363 055-1 | RING OUTSIDE,2-4 | 1 | 1602- | DEF | 04 .383 OD=90.0 | ||
| 26 | 8-97239 774-0 | WASHER THRUST | 1 | 1602- | DEF | |||
| 89 | 8-98013 525-0 | SPROCKET DRIVE | 1 | 1602- | DEF | Z=48 | ||
| 132 | 8-98316 370-0 | SHAFT MAIN,TRANSFER | 1 | 1602- | DEF | A/T 5 SPEED-AISIN(MA1) Z=34-36-26-27 | ||
| 75 | 8-97234 737-0 | BEARING BALL,RR OUTPUT | 1 | 1602- | DEF | |||
| 90 | 8-98275 645-0 | CHAIN DRIVE | 1 | 1602- | DEF | |||
| 81 | 8-97305 408-0 | RING SNAP | 1 | 1602- | DEF | (C) T=2.10 NON COLOR | ||
| 70 | 8-97358 603-0 | NUT RR OUTPUT SHAFT,TRANSFER | 1 | 1602- | DEF | M3 6 FLANGE | ||
| 81 | 8-97305 409-0 | RING SNAP | 1 | 1602- | DEF | (C) T=2.05 BLUE | ||
| 81 | 8-97305 404-1 | RING SNAP | 1 | 1602- | DEF | (A) T=1.9 | ||
| 136 | 8-94363 054-1 | BLOCK RING 2-4 | 1 | 1602- | DEF | 04 .383 Z=48 | ||
| 8 | 8-97319 825-2 | FLANGE OUTPUT | 1 | 1602- | DEF | |||
| 138 | 8-94363 056-0 | RING INSIDE,2-4 | 1 | 1602- | DEF | 04 .383 OD=95.8 | ||
| 139 | 8-97305 012-0 | RING RETAINING,RR OUTPUT | 1 | 1602- | DEF | ID=76 | ||
| 81 | 8-97305 405-0 | RING SNAP | 1 | 1602- | DEF | (B) T=1.4 | ||
| 81 | 8-97305 410-0 | RING SNAP | 1 | 1602- | DEF | (C) T=2.00 WHITE | ||
| 9 | 8-94483 035-0 | GASKET SHAFT | 1 | 1602- | DEF | 04.552 ID=2 9.7 OD=3 6 . 1 | ||
| 115 | 8-97234 747-0 | BEARING NEEDLE | 1 | 1602- | DEF |
