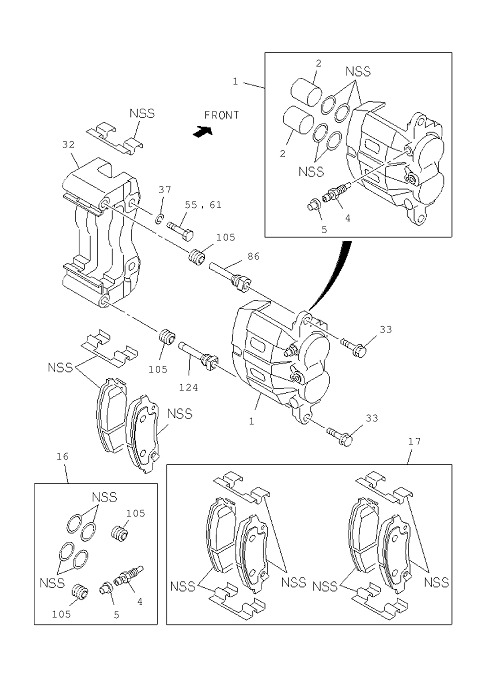

3-02 | FRONT DISC BRAKE CALIPER
DMAX
D-MAX 2016
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 33 | 8-98078 192-0 | BOLT SUPPORT BRKT TO DISC BRK | 4 | 1602- | ABCDEF | |||
| 4 | 8-98050 476-0 | SCREW BLEEDER,DISC BRK,FRT | 2 | 1602- | ABCDEF | |||
| 17 | 8-97947 571-0 | PAD KIT CALIPER,DISC BRK,FRT | 1 | 1602- | ABC | HIGH RIDE SUSPENSION(7Y W/GREASE | ||
| 1 | 8-98077 997-0 | CALIPER FRT DISC BRK | 1 | 1602- | ABCDEF | |||
| 17 | 8-97947 571-0 | PAD KIT CALIPER,DISC BRK,FRT | 1 | 1602- | DEF | W/GREASE | ||
| 61 | 8-98037 731-0 | BOLT SUPPORT BRKT TO KNUCKLE | 2 | 1602- | ABCDEF | 4681 | ||
| 16 | 8-98079 105-0 | REPAIR KIT CALIPER,DISC BRK,FRT | 1 | 1602- | ABCDEF | W/GREASE | ||
| 17 | 8-97947 466-0 | PAD KIT CALIPER,DISC BRK,FRT | 1 | 1602- | ABC | EXC. HIGH RIDE SUSPENSI W/GREASE | ||
| 5 | 8-98050 479-0 | CAP BLEEDER,DISC BRK,FRT | 2 | 1602- | ABCDEF | |||
| 32 | 8-97947 221-0 | SUPPORT FRT DISC BRK | 2 | 1602- | ABCDEF | |||
| 37 | 0-91510 814-0 | WASHER LK | 4 | 1602- | ABCDEF | 06.174 ID=14 . 2 | ||
| 55 | 8-98037 731-0 | BOLT SUPPORT BRKT TO DISC BRK | 2 | 1602- | ABCDEF | |||
| 86 | 8-98078 175-0 | PIN GUIDE | 2 | 1602- | ABCDEF | |||
| 105 | 8-98078 193-0 | BOOT CALIPER | 4 | 1602- | ABCDEF | |||
| 124 | 8-98078 176-0 | PIN ASM W/BUSH | 2 | 1602- | ABCDEF | |||
| 1 | 8-98077 996-0 | CALIPER FRT DISC BRK | 1 | 1602- | ABCDEF | |||
| 2 | 8-98078 000-0 | PISTON CALIPER,DISC BRK,FRT | 4 | 1602- | ABCDEF |
