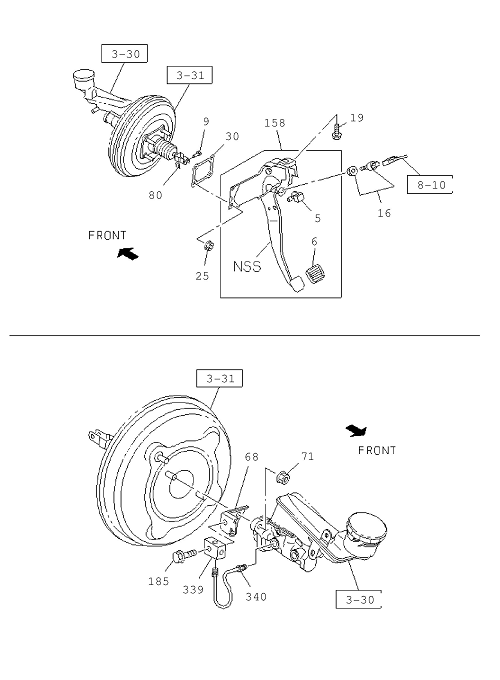

3-10 | BRAKE PEDAL AND CONTROL
DMAX
D-MAX 2016
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 16 | 8-98140 486-0 | SWITCH STOP LAMP | 1 | 1602- | BCDEF | 4JK1-TCX ENG(LR0),4JK1-TCY EN A/T 5 SPEED-AISIN(MA1) EXC. AUTO CRUISE CONT<K3 0> | ||
| 339 | 8-98163 269-0 | CONNECTOR OIL PIPE | 1 | 1602- | BCDEF | EXC. 4 WHEEL ANTI LOCK BRAKE< | ||
| 6 | 8-97263 035-0 | COVER BRK PEDAL | 1 | 1602- | ABCDEF | A/T 5 SPEED-AISIN(MA1) | ||
| 68 | 8-98163 234-0 | BRACKET SERVO TO DASH PANEL | 1 | 1602- | BCDEF | EXC. 4 WHEEL ANTI LOCK BRAKE< | ||
| 5 | 1-73996 231-1 | STOPPER BRK PEDAL | 1 | 1602- | ABCDEF | |||
| 158 | 8-98061 818-1 | PEDAL ASM BRK | 1 | 1602- | ABCDEF | A/T 5 SPEED-AISIN(MA1) | ||
| 340 | 8-97947 756-0 | PIPE BRK M/CYL | 1 | 1602- | BCDEF | EXC. 4 WHEEL ANTI LOCK BRAKE< | ||
| 80 | 8-98007 161-0 | PIN SNAP,BRK PEDAL | 1 | 1602- | ABCDEF | .578472222 | ||
| 6 | 8-97318 799-0 | COVER BRK PEDAL | 1 | 1602- | ABCDEF | M/T MUA 5 SPEED 5H(MWQ),M/T M ED 5S(MZJ),M/T MSG 5 SPEED(M7 ISIN 6 SPEED(RNU),M/T MUA 5 S RSP),M/T MUA 5 SPEED 5S(RSQ) | ||
| 158 | 8-98061 817-1 | PEDAL ASM BRK | 1 | 1602- | ABCDEF | M/T MUA 5 SPEED 5H(MWQ),M/T M ED 5S(MZJ),M/T MSG 5 SPEED(M7 ISIN 6 SPEED(RNU),M/T MUA 5 S RSP),M/T MUA 5 SPEED 5S(RSQ) | ||
| 16 | 8-98140 487-0 | SWITCH STOP LAMP | 1 | 1602- | BCDEF | 4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) EXC. AUTO CRUISE CONT<K3 0> | ||
| 16 | 8-98140 487-0 | SWITCH STOP LAMP | 1 | 1602- | BC EF | 4JK1-TCY ENG(RDX) M/T AISIN 6 SPEED(RNU) EXC. AUTO CRUISE CONT<K3 0> | ||
| 9 | 8-97311 602-0 | PIN JAW JOINT | 1 | 1602- | ABCDEF | |||
| 16 | 8-98140 486-0 | SWITCH STOP LAMP | 1 | 1602- | ABCDEF | 4JA1-T ENG(LP0),4JJ1-TCX ENG( EXC. AUTO CRUISE CONT<K3 0> | ||
| 71 | 8-98031 675-0 | NUT BRK M/CYL | 2 | 1602- | ABCDEF | |||
| 19 | 8-97947 104-1 | BOLT BRKT | 1 | 1602- | ABCDEF | M8X22.5 W/PL WASHER | ||
| 30 | 8-97943 457-0 | GASKET M/VAC TO BODY | 1 | 1602- | ABCDEF | |||
| 25 | 8-97581 233-0 | NUT FLANGE,MTG BRKT TO BODY | 4 | 1602- | ABCDEF | M8 FLANGE | ||
| 16 | 8-98140 487-0 | SWITCH STOP LAMP | 1 | 1602- | ABCDEF | AUTO CRUISE CONT<K3 0 > | ||
| 185 | 8-97947 755-0 | BOLT BRKT | 1 | 1602- | BCDEF | EXC. 4 WHEEL ANTI LOCK BRAKE< M8X3 5 FLANGE |
