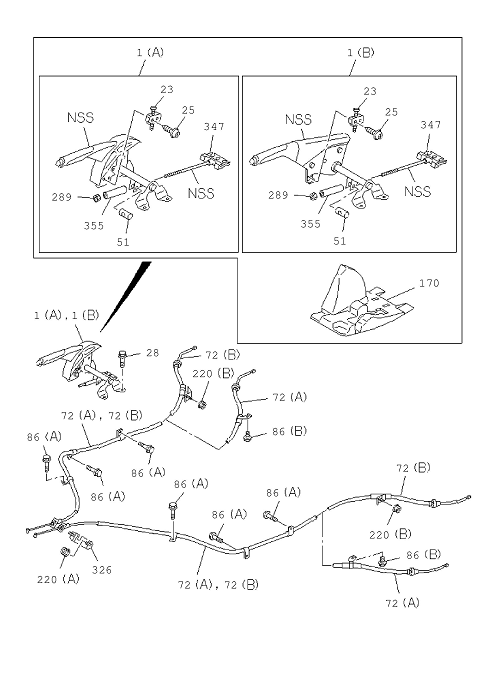

3-11 | PARKING BRAKE CONTROL
DMAX
D-MAX 2016
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 72 | 8-98067 046-1 | CABLE PARKING BRK | 1 | 1602- | R | BC | EXC. AUSTRALIA EQUIPMENT(B NG EQUIPMENT(B14),SINGAPOR (2G0),HIGH RIDE SUSPENSION (B) | |
| 86 | 0-28650 620-0 | BOLT | 6 | 1602- | ABCDEF | 03.162 (A) M6X2 0 FLANGE | ||
| 72 | 8-98067 048-1 | CABLE PARKING BRK | 1 | 1602- | R | DEF | EXC. REAR SPRING HEAVY DUT (A) | |
| 347 | 8-97947 495-0 | EQUALIZER HAND BRK | 1 | 1602- | ABCDEF | |||
| 72 | 8-98067 048-1 | CABLE PARKING BRK | 1 | 1602- | R | ABC | HIGH RIDE SUSPENSION(7YC) EXC. REAR SPRING HEAVY DUT (A) | |
| 72 | 8-98102 140-1 | CABLE PARKING BRK | 1 | 1602- | R | A | 4JJ1-TCX ENG(LS0) EXC. HIGH RIDE SUSPENSION( (B) | |
| 1 | 8-98061 827-0 | STEM ASM PARKING BRK | 1 | 1602- | A D | (A) | ||
| 289 | 8-98017 654-0 | NUT PARKING BRK | 1 | 1602- | ABCDEF | 4785 | ||
| 72 | 8-98067 049-1 | CABLE PARKING BRK | 1 | 1602- | L | ABC | HIGH RIDE SUSPENSION(7YC) EXC. REAR SPRING HEAVY DUT (A) | |
| 86 | 0-28050 812-0 | BOLT | 2 | 1602- | DEF | 02 .343 (B) M8X12 FLANGE | ||
| 72 | 8-98102 141-1 | CABLE PARKING BRK | 1 | 1602- | L | A | 4JJ1-TCX ENG(LS0) EXC. HIGH RIDE SUSPENSION( (B) | |
| 1 | 8-98160 175-1 | STEM ASM PARKING BRK | 1 | 1602- | BC EF | FRONT SEAT SPLIT BENCH<AM6 (B) | ||
| 72 | 8-98102 149-1 | CABLE PARKING BRK | 1 | 1602- | L | ABC | REAR SPRING HEAVY DUTY(G5 0 HIGH RIDE SUSPENSION(7YC) (A) | |
| 72 | 8-98102 148-1 | CABLE PARKING BRK | 1 | 1602- | R | ABC | REAR SPRING HEAVY DUTY(G5 0 HIGH RIDE SUSPENSION(7YC) (A) | |
| 326 | 8-98134 214-1 | RETAINER PARK CABLE | 1 | 1602- | ABCDEF | |||
| 355 | 8-97947 497-0 | SPACER HAND BRK LEVER | 1 | 1602- | ABCDEF | |||
| 25 | 8-97103 556-0 | SCREW SW,PARKING BRK | 1 | 1602- | ABCDEF | |||
| 72 | 8-98102 141-1 | CABLE PARKING BRK | 1 | 1602- | L | BC | AUSTRALIA EQUIPMENT(B13),H UIPMENT(B14),SINGAPORE EQU EXC. HIGH RIDE SUSPENSION( (B) | |
| 220 | 0-91180 108-0 | NUT CLIP,PARKING CONT CABLE | 2 | 1602- | ABCDEF | 01 . 062 (A) M8 FLANGE | ||
| 72 | 8-98102 149-1 | CABLE PARKING BRK | 1 | 1602- | L | DEF | REAR SPRING HEAVY DUTY(G5 0 (A) | |
| 72 | 8-98067 049-1 | CABLE PARKING BRK | 1 | 1602- | L | DEF | EXC. REAR SPRING HEAVY DUT (A) | |
| 170 | 8-97948 802-0 | COVER PARKING BRK LEVER | 1 | 1602- | BC EF | FRONT SEAT SPLIT BENCH<AM6 | ||
| 51 | 8-97947 496-0 | PIN JOINT,RELAY LEVER | 1 | 1602- | ABCDEF | |||
| 86 | 0-28050 812-0 | BOLT | 2 | 1602- | ABC | HIGH RIDE SUSPENSION(7YC) 02 .343 (B) M8X12 FLANGE | ||
| 72 | 8-98102 140-1 | CABLE PARKING BRK | 1 | 1602- | R | BC | AUSTRALIA EQUIPMENT(B13),H UIPMENT(B14),SINGAPORE EQU EXC. HIGH RIDE SUSPENSION( (B) | |
| 72 | 8-98102 148-1 | CABLE PARKING BRK | 1 | 1602- | R | DEF | REAR SPRING HEAVY DUTY(G5 0 (A) | |
| 28 | 0-28650 820-0 | BOLT HAND BRK LEVER | 4 | 1602- | ABCDEF | 01.531 M8X20 FLANGE | ||
| 220 | 0-91180 106-0 | NUT CLIP,PARKING CONT CABLE | 2 | 1602- | ABC | EXC. HIGH RIDE SUSPENSION( 01.062 (B) M6 FLANGE | ||
| 1 | 8-98061 827-0 | STEM ASM PARKING BRK | 1 | 1602- | BC EF | FRONT SEAT BUCKET POWER AS RONT SEAT BUCKET MANUAL HE R9 >,FRONT SEAT BUCKET STAN (A) | ||
| 72 | 8-98067 047-1 | CABLE PARKING BRK | 1 | 1602- | L | BC | EXC. AUSTRALIA EQUIPMENT(B NG EQUIPMENT(B14),SINGAPOR (2G0),HIGH RIDE SUSPENSION (B) | |
| 23 | 8-97947 494-0 | SWITCH PARKING BRK | 1 | 1602- | ABCDEF |
