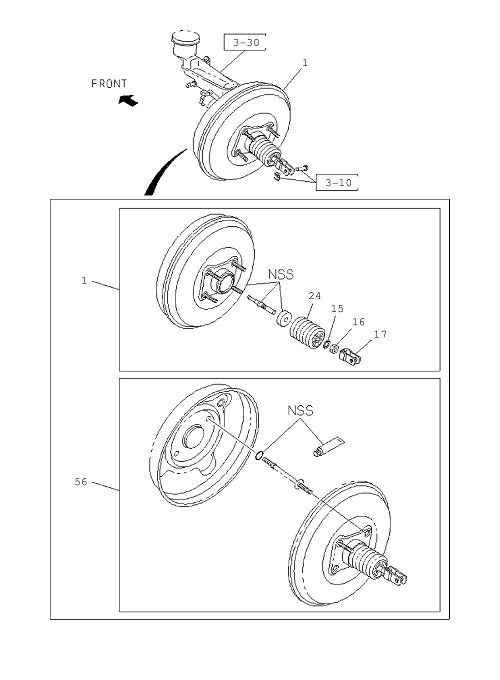

3-31 | BRAKE MASTER VAC AND BRAKE BOOSTER
DMAX
D-MAX 2016
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 17 | 8-98048 039-0 | CLEVIS YOKE,M/VAC | 1 | 1602- | ABCDEF | |||
| 1 | 8-98163 232-1 | MASTER VAC ASM BRK | 1 | 1602- | A | |||
| 56 | 8-98185 211-0 | GASKET KIT M/CYL TO SERVO UNIT | 1 | 1602- | ABCDEF | W/GREASE | ||
| 15 | 8-98048 040-0 | RETAINER GUARD,M/VAC | 1 | 1602- | ABCDEF | |||
| 16 | 8-98048 038-0 | NUT VLV ROD,M/VAC | 1 | 1602- | ABCDEF | |||
| 24 | 8-98185 212-0 | GUARD VLV BODY,M/VAC | 1 | 1602- | ABCDEF | |||
| 1 | 8-98163 232-1 | MASTER VAC ASM BRK | 1 | 1602- | BCDEF | 4 WHEEL ANTI LOCK BRAKE<JE | ||
| 1 | 8-98163 231-1 | MASTER VAC ASM BRK | 1 | 1602- | BCDEF | EXC. 4 WHEEL ANTI LOCK BRA |
