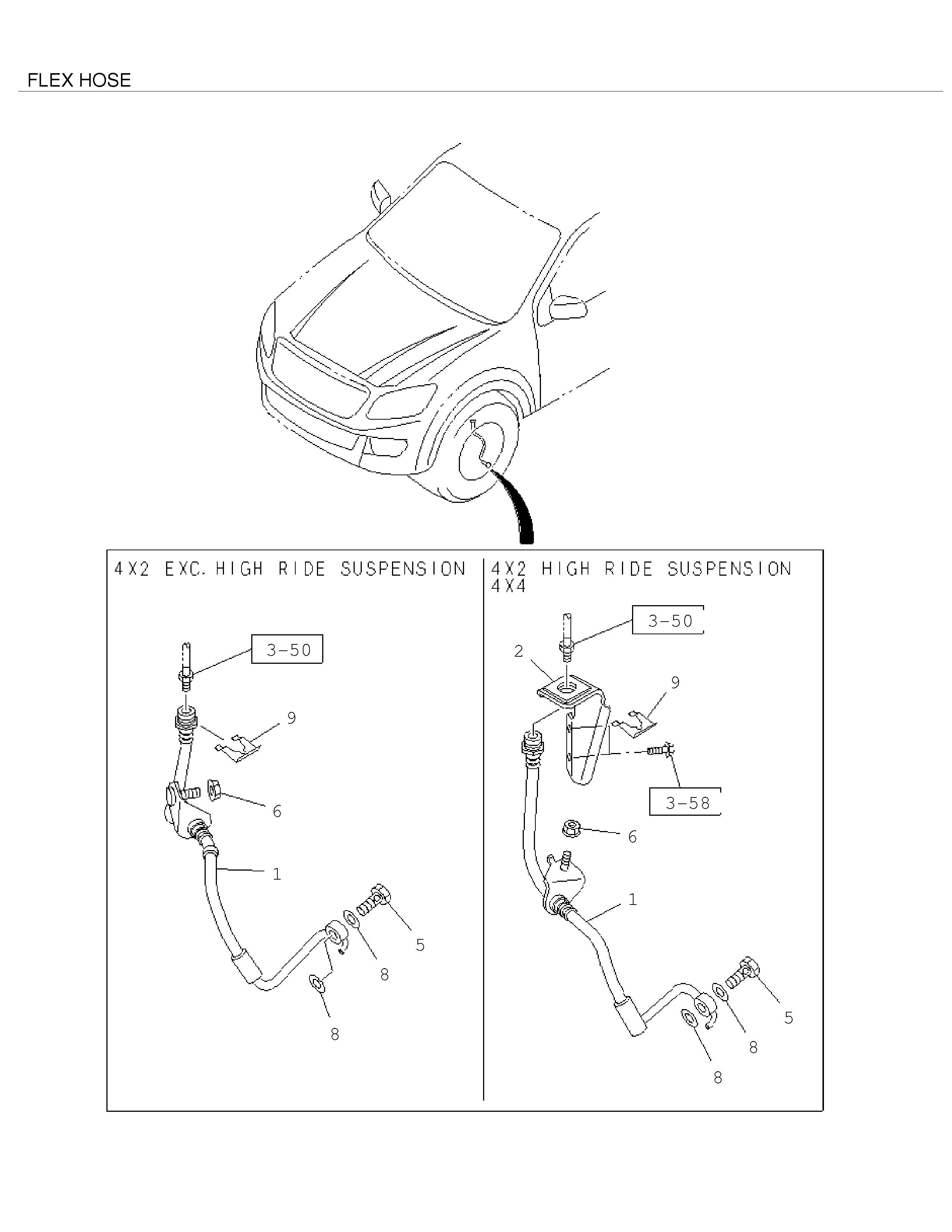

3-52 | BRAKE PIPING OIL, FRONT
DMAX
D-MAX 2016
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 2 | 8-97947 148-1 | BRACKET FLEX HOSE,FRT BRK | 1 | 1602- | BC | EMISSION SYSTEM R15-04<K75> CIFICATION<NT1>,EURO2 SPECI T2 >,EURO4 SPECIFICATION<NT4 HIGH RIDE SUSPENSION(7YC) | ||
| 2 | 8-97947 148-1 | BRACKET FLEX HOSE,FRT BRK | 1 | 1602- | DEF | EMISSION SYSTEM R15-04<K75> CIFICATION<NT2 >,EURO4 SPECI T4> | ||
| 8 | 9-09571 410-0 | GASKET FLEX HOSE,FRT BRK | 4 | 1602- | ABCDEF | 08.955 ID=10.2 OD=16.0 | ||
| 2 | 8-97947 149-1 | BRACKET FLEX HOSE,FRT BRK | 1 | 1602- | ABC | HIGH RIDE SUSPENSION(7YC) | ||
| 1 | 8-98067 244-1 | HOSE FLEX,FRT BRK | 1 | 1602- | ABC | EXC. HIGH RIDE SUSPENSION(7 L=413 | ||
| 9 | 8-97360 054-0 | CLIP FLEX HOSE,FRT BRK | 2 | 1602- | ABCDEF | |||
| 1 | 8-98067 247-4 | HOSE FLEX,FRT BRK | 1 | 1602- | DEF | L=3 91 | ||
| 1 | 8-98067 246-4 | HOSE FLEX,FRT BRK | 1 | 1602- | DEF | L=3 91 | ||
| 1 | 8-98067 247-4 | HOSE FLEX,FRT BRK | 1 | 1602- | ABC | HIGH RIDE SUSPENSION(7YC) L=3 91 | ||
| 86 | 0-28650 820-0 | BOLT BRK PIPE | 1 | 1602- | ABCDEF | 01.531 M8X2 0 FLANGE | ||
| 2 | 8-97947 149-1 | BRACKET FLEX HOSE,FRT BRK | 1 | 1602- | DEF | |||
| 1 | 8-98067 246-4 | HOSE FLEX,FRT BRK | 1 | 1602- | ABC | HIGH RIDE SUSPENSION(7YC) L=3 91 | ||
| 1 | 8-98067 248-1 | HOSE FLEX,FRT BRK | 1 | 1602- | ABC | EXC. HIGH RIDE SUSPENSION(7 L=413 | ||
| 5 | 8-98014 005-0 | BOLT EYE,FLEX HOSE,FRT BRK | 2 | 1602- | ABCDEF | M10X22 | ||
| 6 | 0-91180 108-0 | NUT FLEX HOSE,FRT BRK | 2 | 1602- | ABCDEF | 01.062 M8 FLANGE | ||
| 2 | 8-97947 148-1 | BRACKET FLEX HOSE,FRT BRK | 1 | 1602- | A | HIGH RIDE SUSPENSION(7YC) |
