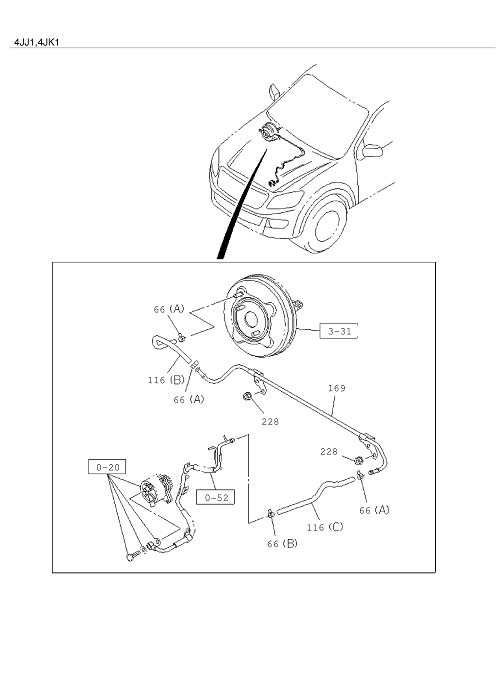

3-60 | BRAKE PIPING VACUUM
DMAX
D-MAX 2016
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 228 | 0-91180 106-0 | NUT PIPE | 2 | 1602- | BC | 4JK1-TCX ENG(LR0),4JJ1-TCX JK1-TCY ENG(RDX) 01.062 M6 FLANGE | ||
| 228 | 0-91180 106-0 | NUT PIPE | 2 | 1602- | A DEF | 01.062 M6 FLANGE | ||
| 66 | 8-98036 539-0 | CLIP VAC HOSE,M/VAC | 4 | 1602- | ABCDEF | ID=16 | ||
| 169 | 8-98100 266-1 | PIPE VAC,BOOSTER SIDE | 1 | 1602- | BC | 4JK1-TCX ENG(LR0),4JJ1-TCX JK1-TCY ENG(RDX) | ||
| 116 | 8-98100 737-1 | HOSE VAC,M/VAC | 1 | 1602- | A DEF | (A) | ||
| 116 | 8-98100 736-0 | HOSE VAC,M/VAC | 1 | 1602- | A DEF | (B) | ||
| 22 | 8-97362 925-0 | CLIP HOSE,VAC TANK | 1 | 1602- | BC | 4JA1-T ENG(LP0) (B) | ||
| 116 | 8-98100 737-1 | HOSE VAC,M/VAC | 1 | 1602- | BC | 4JK1-TCX ENG(LR0),4JJ1-TCX JK1-TCY ENG(RDX) (A) | ||
| 116 | 8-98100 736-0 | HOSE VAC,M/VAC | 1 | 1602- | BC | 4JK1-TCX ENG(LR0),4JJ1-TCX JK1-TCY ENG(RDX) (B) | ||
| 169 | 8-98100 266-1 | PIPE VAC,BOOSTER SIDE | 1 | 1602- | A DEF | |||
| 22 | 8-97089 536-0 | CLIP HOSE,VAC TANK | 1 | 1602- | BC | 4JA1-T ENG(LP0) 03.162 (A) | ||
| 199 | 8-98100 739-2 | HOSE VAC,VAC TANK TO VAC PUMP | 1 | 1602- | BC | 4JA1-T ENG(LP0) | ||
| 116 | 8-98100 738-0 | HOSE VAC,M/VAC | 1 | 1602- | BC | 4JA1-T ENG(LP0) (C) |
