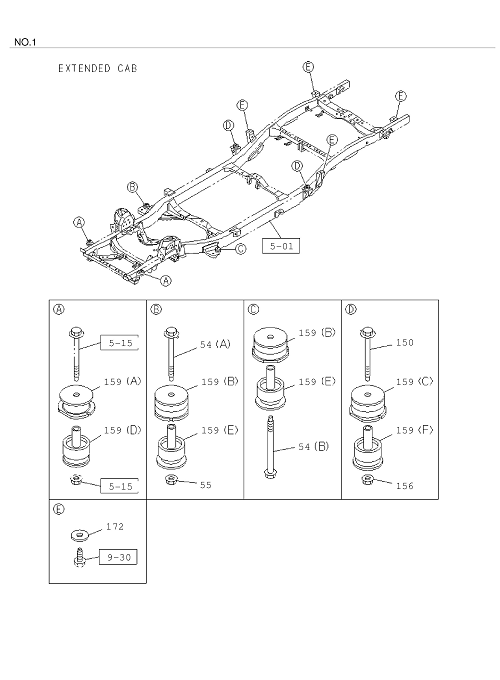

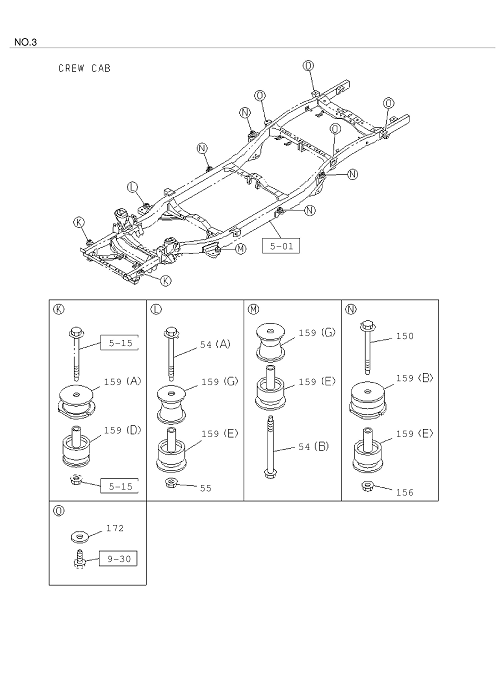

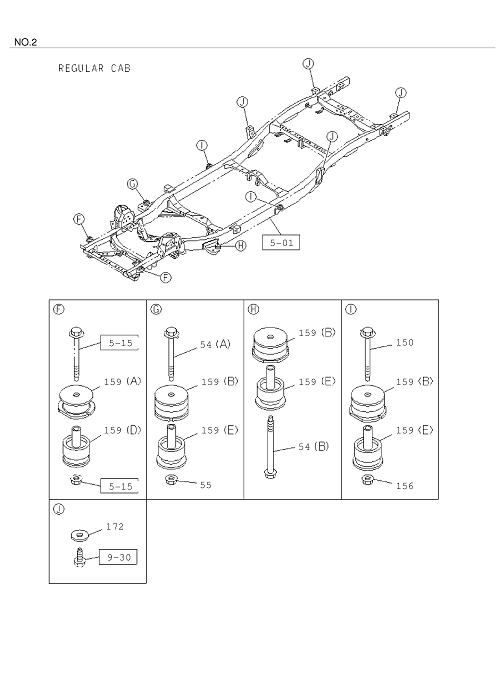

5-10 | CAB MOUNTING FRAME SIDE
DMAX
D-MAX 2016
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 54 | 8-98102 202-3 | BOLT RUBBER | 1 | 1602- | ABCDEF | (A) M10X130 FLANGE | ||
| 172 | 8-98098 458-0 | WASHER BODY MTG RUBBER | 8 | 1602- | B E | REAR BODY DBL WALL CTR PULL(E63) 03 . 023 ID=13 OD=40 T=6 | ||
| 159 | 8-97367 285-0 | RUBBER CUSHION,CAB MTG | 2 | 1602- | ABCDEF | (A) | ||
| 159 | 8-98075 385-1 | RUBBER CUSHION,CAB MTG | 2 | 1602- | ABCDEF | (E) | ||
| 55 | 0-91280 210-0 | NUT RUBBER | 1 | 1602- | ABCDEF | 06 .672 M10 FLANGE | ||
| 159 | 8-98075 385-1 | RUBBER CUSHION,CAB MTG | 2 | 1602- | BC EF | (E) | ||
| 156 | 0-91280 210-0 | NUT CAB MTG RR | 2 | 1602- | ABCDEF | 06 .672 M10 FLANGE | ||
| 156 | 0-91280 210-0 | NUT CAB MTG RR | 2 | 1602- | C F | 06 .672 M10 FLANGE | ||
| 172 | 8-98098 458-0 | WASHER BODY MTG RUBBER | 4 | 1602- | C F | REAR BODY DBL WALL CTR PULL(E63) 03 . 023 ID=13 OD=40 T=6 | ||
| 150 | 8-98102 202-3 | BOLT CAB MTG RR | 2 | 1602- | C F | 09 . 008 M10X130 FLANGE | ||
| 159 | 8-98075 386-1 | RUBBER CUSHION,CAB MTG | 2 | 1602- | A D | (F) | ||
| 159 | 8-98174 970-0 | RUBBER CUSHION,CAB MTG | 2 | 1602- | ABCDEF | (B) | ||
| 159 | 8-98051 326-0 | RUBBER CUSHION,CAB MTG | 2 | 1602- | ABCDEF | (D) | ||
| 54 | 8-98169 670-0 | BOLT RUBBER | 1 | 1602- | ABCDEF | (B) M10X141 FLANGE | ||
| 159 | 8-98174 971-0 | RUBBER CUSHION,CAB MTG | 2 | 1602- | A D | (C) | ||
| 159 | 8-98075 385-1 | RUBBER CUSHION,CAB MTG | 2 | 1602- | C F | (E) | ||
| 159 | 8-98174 970-0 | RUBBER CUSHION,CAB MTG | 2 | 1602- | BC EF | (B) | ||
| 150 | 8-98102 202-3 | BOLT CAB MTG RR | 2 | 1602- | ABCDEF | 09 . 008 M10X130 FLANGE | ||
| 159 | 8-98075 381-0 | RUBBER CUSHION,CAB MTG | 2 | 1602- | C F | (G) | ||
| 172 | 8-98098 458-0 | WASHER BODY MTG RUBBER | 6 | 1602- | A D | REAR BODY DBL WALL CTR PULL(E63) 03 . 023 ID=13 OD=4 0 T=6 |
