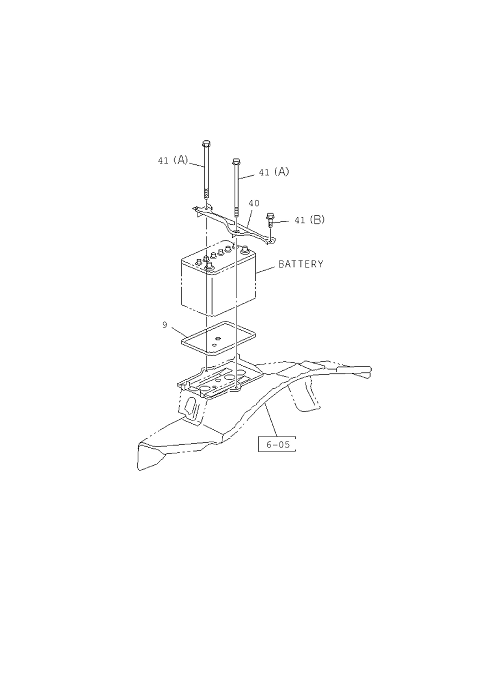

5-20 | BATTERY CARRIER
DMAX
D-MAX 2016
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 40 | 8-98141 872-0 | CLAMP BATTERY | 1 | 1602- | ABCDEF | |||
| 9 | 8-97328 060-0 | SEAT BATTERY | 1 | 1602- | ABCDEF | EXC. BATTERY 95D31L(TQ8) | ||
| 9 | 8-97318 865-1 | SEAT BATTERY | 1 | 1602- | ABCDEF | BATTERY 9 5D31L(TQ8) | ||
| 41 | 0-28650 820-0 | BOLT CLAMP,BATTERY | 1 | 1602- | ABCDEF | 01.531 (B) M8X2 0 FLANGE | ||
| 41 | 8-97378 041-0 | BOLT CLAMP,BATTERY | 2 | 1602- | ABCDEF | (A) M8X222 FLANGE |
