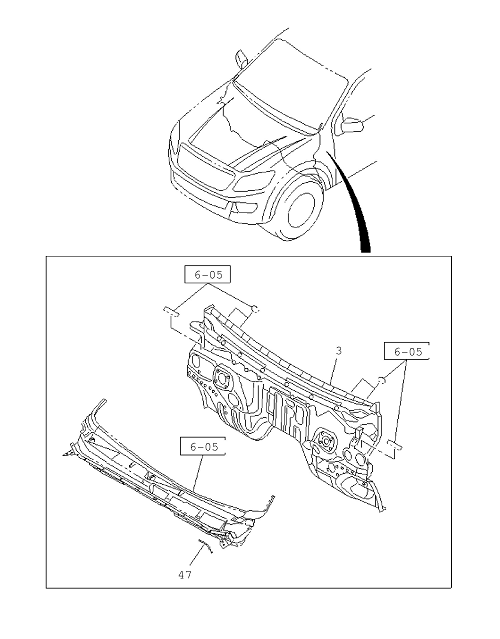

6-14 | DASH PANEL AND FENDER SKIRT
DMAX
D-MAX 2016
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 3 | 8-98103 213-3 | PANEL SUB,DASH LWR | 1 | 1602- | D | 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) | ||
| 3 | 8-98103 213-3 | PANEL SUB,DASH LWR | 1 | 1602- | A | 4JJ1-TCX ENG(LS0) | ||
| 3 | 8-98206 216-3 | PANEL SUB,DASH LWR | 1 | 1602- | BC | 4JA1-T ENG(LP0) CONGO EQUIPMENT(CDF) | ||
| 47 | 8-98151 273-0 | TAPE DASH PANEL | 1 | 1602- | BC EF | 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0),4 JK1-TCY ENG(RDX) | ||
| 3 | 8-98124 738-3 | PANEL SUB,DASH LWR | 1 | 1602- | BC EF | 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0),4 JK1-TCY ENG(RDX) CONGO EQUIPMENT(CDF) | ||
| 47 | 8-98151 273-0 | TAPE DASH PANEL | 1 | 1602- | D | 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) | ||
| 47 | 8-98151 273-0 | TAPE DASH PANEL | 2 | 1602- | BC | 4JA1-T ENG(LP0) | ||
| 47 | 8-98151 273-0 | TAPE DASH PANEL | 1 | 1602- | A | 4JJ1-TCX ENG(LS0) | ||
| 3 | 8-98103 213-3 | PANEL SUB,DASH LWR | 1 | 1602- | BC EF | 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0),4 JK1-TCY ENG(RDX) EXC. CONGO EQUIPMENT(CDF) | ||
| 3 | 8-98103 215-3 | PANEL SUB,DASH LWR | 1 | 1602- | BC | 4JA1-T ENG(LP0) EXC. CONGO EQUIPMENT(CDF) |
