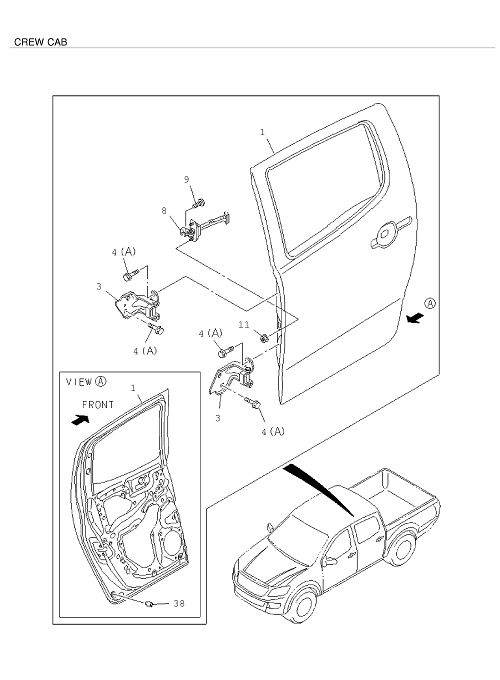

6-50 | REAR DOOR AND HINGE
DMAX
D-MAX 2016
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 8 | 8-98103 031-3 | ARM CHECK,RR DOOR | 2 | 1602- | C F | |||
| 1 | 8-98108 218-5 | DOOR ASM REAR | 1 | 1602- | C F | AUSTRALIA EQUIPMENT(B13),HONG KONG EQ UIPMENT(B14),CONGO EQUIPMENT(CDF),SIN GAPORE EQUIPMENT(2G0) | ||
| 3 | 8-98105 283-3 | HINGE RR DOOR | 2 | 1602- | A D | LWR RH & UPR LH | ||
| 1 | 8-98108 260-8 | DOOR ASM REAR | 1 | 1602- | A D | |||
| 1 | 8-98108 261-8 | DOOR ASM REAR | 1 | 1602- | A D | |||
| 1 | 8-98161 044-3 | DOOR ASM REAR | 1 | 1602- | C F | EXC. AUSTRALIA EQUIPMENT(B13),HONG KO NG EQUIPMENT(B14),CONGO EQUIPMENT(CDF ),SINGAPORE EQUIPMENT(2G0) | ||
| 4 | 8-98029 440-0 | BOLT HINGE | 4 | 1602- | A D | 16 . 320 (B) M8X23 FLANGE | ||
| 38 | 8-98202 864-0 | PROTECTOR RR DOOR | 2 | 1602- | C F | 16165 | ||
| 1 | 8-98108 219-5 | DOOR ASM REAR | 1 | 1602- | C F | AUSTRALIA EQUIPMENT(B13),HONG KONG EQ UIPMENT(B14),CONGO EQUIPMENT(CDF),SIN GAPORE EQUIPMENT(2G0) | ||
| 11 | 8-98049 362-0 | NUT | 4 | 1602- | A CD F | M6 FLANGE | ||
| 3 | 8-98105 281-1 | HINGE RR DOOR | 2 | 1602- | C F | LWR RH & UPR LH | ||
| 4 | 8-98005 842-0 | BOLT HINGE | 16 | 1602- | A D | 09.171 (A) M8X23 FLANGE | ||
| 4 | 8-98005 842-0 | BOLT HINGE | 8 | 1602- | C F | 09.171 (A) M8X23 FLANGE | ||
| 9 | 8-98166 694-0 | BOLT CHECK ARM | 2 | 1602- | A CD F | 16 . 320 M8X23 | ||
| 3 | 8-98105 280-1 | HINGE RR DOOR | 2 | 1602- | C F | UPR RH & LWR LH | ||
| 1 | 8-98161 045-3 | DOOR ASM REAR | 1 | 1602- | C F | EXC. AUSTRALIA EQUIPMENT(B13),HONG KO NG EQUIPMENT(B14),CONGO EQUIPMENT(CDF ),SINGAPORE EQUIPMENT(2G0) | ||
| 8 | 8-98103 032-4 | ARM CHECK,RR DOOR | 2 | 1602- | A D | |||
| 3 | 8-98105 282-3 | HINGE RR DOOR | 2 | 1602- | A D | UPR RH & LWR LH |
