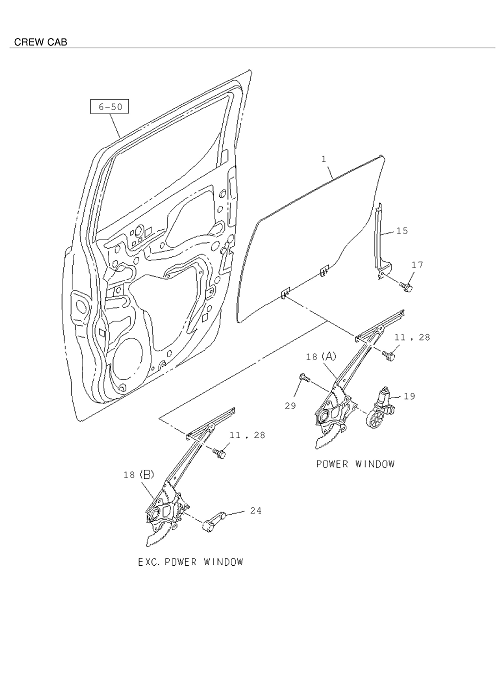

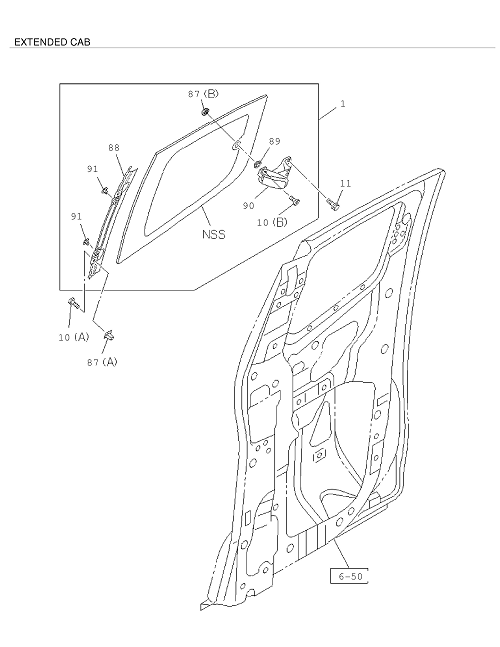

6-51 | REAR DOOR GLASS AND REGULATOR
DMAX
D-MAX 2016
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 28 | 8-98188 381-0 | BOLT WINDOW REG | 6 | 1602- | C F | 16.270 M6X10 FLANGE | ||
| 88 | 8-98140 724-1 | HINGE WINDOW GLASS | 1 | 1602- | R | A D | ||
| 1 | 8-97421 859-5 | GLASS RR DOOR | 1 | 1602- | L | A D | BLACK | |
| 11 | 8-98062 136-0 | BOLT GLASS | 6 | 1602- | A D | 16.263 M6X19 W/WASHER | ||
| 87 | 8-94279 043-0 | NUT WINDOW | 4 | 1602- | A D | 16.802 (A) D=7.8X7.8 L=18 NATURAL | ||
| 19 | 8-98167 091-1 | MOTOR POWER WINDOW REG,RR DOOR | 1 | 1602- | R | C F | DRIVER POWER WINDOW W/A WN<ABZ >,DRIVER POWER WI OR DOWN<A31>,DRIVER POW UTO<A3 2 > | |
| 17 | 8-98048 996-0 | BOLT RR GUIDE RAIL | 2 | 1602- | C F | M6X8 FLANGE | ||
| 18 | 8-98093 557-1 | REGULATOR WINDOW,RR DOOR | 1 | 1602- | R | C F | EXC. DRIVER POWER WINDO UP/DOWN<ABZ>,DRIVER POW TO DOOR DOWN<A31>,DRIVE WO/AUTO<A32 > (B) | |
| 18 | 8-98167 090-0 | REGULATOR WINDOW,RR DOOR | 1 | 1602- | L | C F | DRIVER POWER WINDOW W/A WN<ABZ >,DRIVER POWER WI OR DOWN<A31>,DRIVER POW UTO<A3 2 > (A) | |
| 15 | 8-98100 798-2 | RAIL RR GUIDE,RR DOOR | 1 | 1602- | R | C F | ||
| 15 | 8-98100 799-2 | RAIL RR GUIDE,RR DOOR | 1 | 1602- | L | C F | ||
| 24 | 8-97416 724-0 | HANDLE WINDOW REG,RR DOOR | 2 | 1602- | C F | EXC. DRIVER POWER WINDO UP/DOWN<ABZ>,DRIVER POW TO DOOR DOWN<A31>,DRIVE WO/AUTO<A32 > BLACK | ||
| 10 | 9-03810 510-0 | SCREW GLASS | 2 | 1602- | A D | 11.010 (B) M5X10 | ||
| 18 | 8-98167 089-0 | REGULATOR WINDOW,RR DOOR | 1 | 1602- | R | C F | DRIVER POWER WINDOW W/A WN<ABZ >,DRIVER POWER WI OR DOWN<A31>,DRIVER POW UTO<A3 2 > (A) | |
| 19 | 8-98167 092-1 | MOTOR POWER WINDOW REG,RR DOOR | 1 | 1602- | L | C F | DRIVER POWER WINDOW W/A WN<ABZ >,DRIVER POWER WI OR DOWN<A31>,DRIVER POW UTO<A3 2 > | |
| 29 | 8-98195 236-0 | SCREW WINDOW REG | 6 | 1602- | C F | DRIVER POWER WINDOW W/A WN<ABZ >,DRIVER POWER WI OR DOWN<A31>,DRIVER POW UTO<A3 2 > | ||
| 87 | 8-97305 953-1 | NUT WINDOW | 2 | 1602- | A D | 16.152 (B) | ||
| 1 | 8-98073 846-0 | GLASS RR DOOR | 1 | 1602- | L | C F | ||
| 1 | 8-97421 858-5 | GLASS RR DOOR | 1 | 1602- | R | A D | BLACK | |
| 1 | 8-98073 845-0 | GLASS RR DOOR | 1 | 1602- | R | C F | ||
| 18 | 8-98093 558-1 | REGULATOR WINDOW,RR DOOR | 1 | 1602- | L | C F | EXC. DRIVER POWER WINDO UP/DOWN<ABZ>,DRIVER POW TO DOOR DOWN<A31>,DRIVE WO/AUTO<A32 > (B) | |
| 91 | 8-98194 207-0 | CLIP RR WINDOW | 4 | 1602- | A D | |||
| 11 | 8-98188 381-0 | BOLT GLASS | 4 | 1602- | C F | 16.270 M6X10 FLANGE | ||
| 10 | 8-94243 069-0 | SCREW GLASS | 4 | 1602- | A D | 07.833 (A) M5X16 | ||
| 88 | 8-98140 725-1 | HINGE WINDOW GLASS | 1 | 1602- | L | A D | ||
| 89 | 8-94480 192-0 | GROMMET RR | 2 | 1602- | A D | 16152 | ||
| 90 | 8-97423 318-2 | FASTENER RR WINDOW | 2 | 1602- | A D | BLACK |
