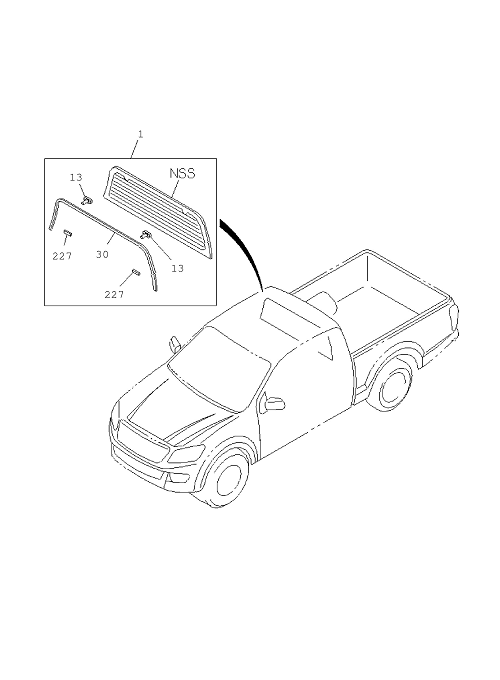

6-82 | BACK GLASS AND WEATHERSTRIP
DMAX
D-MAX 2016
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 13 | 8-98140 691-1 | SUPPORT BACKLIGHT GLASS | 2 | 1602- | ABCDEF | |||
| 1 | 8-98073 092-3 | GLASS BACKLIGHT | 1 | 1602- | A | |||
| 1 | 8-98073 093-3 | GLASS BACKLIGHT | 1 | 1602- | B E | |||
| 1 | 8-98073 093-3 | GLASS BACKLIGHT | 1 | 1602- | CD F | EXC. REAR DEFOGGER< C4 9> | ||
| 1 | 8-98073 092-3 | GLASS BACKLIGHT | 1 | 1602- | CD F | REAR DEFOGGER<C4 9> | ||
| 30 | 8-98140 693-0 | SEAL BACKLIGHT GLASS | 1 | 1602- | ABCDEF | |||
| 227 | 8-98285 699-0 | RETAINER RR WINDOW | 2 | 1602- | ABCDEF | (B) 20X8 | ||
| 227 | 8-98187 720-0 | RETAINER RR WINDOW | 2 | 1602- | ABCDEF | (A) 30X8 |
