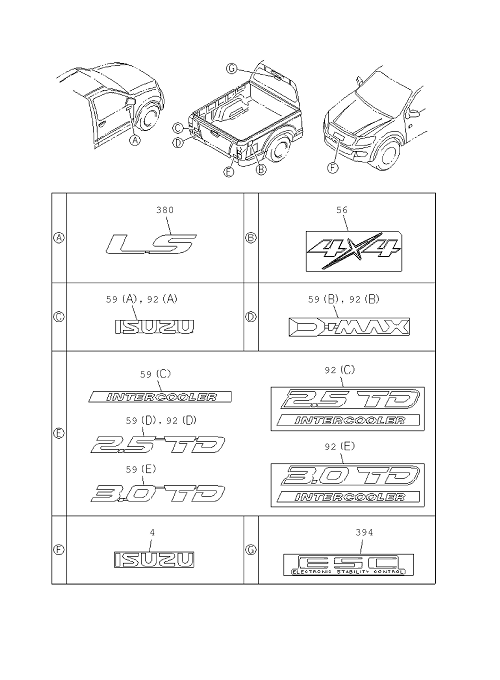

7-01 | EMBLEM AND NAME PLATE
DMAX
D-MAX 2016
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 380 | 8-98129 894-0 | PLATE SIDE | 2 | 1602- | CD F | INTERIOR CUSTOM(RBD) | ||
| 59 | 8-98129 903-0 | DECAL TAIL GATE | 1 | 1602- | CD F | 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0),4 JK1-TCY ENG(RDX) INTERIOR CUSTOM(RBD) REAR BODY DBL WALL CTR PULL(E63) (C) | ||
| 92 | 8-98129 869-0 | DECAL RR END | 1 | 1602- | BC | 4JA1-T ENG(LP0) REAR BODY DBL WALL CTR PULL(E63) (C) | ||
| 59 | 8-98134 872-0 | DECAL TAIL GATE | 1 | 1602- | CD F | 4JJ1-TCX ENG(LS0) INTERIOR CUSTOM(RBD) REAR BODY DBL WALL CTR PULL(E63) (E) | ||
| 92 | 8-98129 863-0 | DECAL RR END | 1 | 1602- | B E | REAR BODY DBL WALL CTR PULL(E63) (B) | ||
| 231 | 8-98298 641-0 | EMBLEM ENG | 1 | 1602- | D | 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. ENG SIGHT SHIELD<8LQ> | ||
| 56 | 8-97465 880-0 | DECAL BODY SIDE | 2 | 1602- | DEF | REAR BODY DBL WALL CTR PULL(E63) DECAL 4X4<YJ3> RED & SILVER & GRAY | ||
| 394 | 8-98129 857-2 | DECAL RR BODY | 1 | 1602- | D | ELECTRONIC TRACTION CONTROL<NW9> EXC. AUSTRALIA EQUIPMENT(B13) | ||
| 92 | 8-98129 871-0 | DECAL RR END | 1 | 1602- | AB E | 4JJ1-TCX ENG(LS0) REAR BODY DBL WALL CTR PULL(E63) (E) | ||
| 59 | 8-98129 896-0 | DECAL TAIL GATE | 1 | 1602- | A CD F | REAR BODY DBL WALL CTR PULL(E63) (A) | ||
| 59 | 8-98134 871-0 | DECAL TAIL GATE | 1 | 1602- | CD F | 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) INTERIOR CUSTOM(RBD) REAR BODY DBL WALL CTR PULL(E63) (D) | ||
| 394 | 8-98129 857-2 | DECAL RR BODY | 1 | 1602- | C F | ELECTRONIC TRACTION CONTROL<NW9> EXC. AUSTRALIA EQUIPMENT(B13),HONG KO NG EQUIPMENT(B14),SINGAPORE EQUIPMENT (2G0) | ||
| 92 | 8-98129 870-0 | DECAL RR END | 1 | 1602- | BCDEF | 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) INTERIOR BASIC(RBA) REAR BODY DBL WALL CTR PULL(E63) (D) | ||
| 92 | 8-98129 871-0 | DECAL RR END | 1 | 1602- | CD F | 4JJ1-TCX ENG(LS0) INTERIOR BASIC(RBA) REAR BODY DBL WALL CTR PULL(E63) (E) | ||
| 231 | 8-98298 641-0 | EMBLEM ENG | 1 | 1602- | BC EF | 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) PROVISIONAL PACKAGE SPEC(BCC) EXC. ENG SIGHT SHIELD<8LQ> | ||
| 92 | 8-98129 861-0 | DECAL RR END | 1 | 1602- | B E | REAR BODY DBL WALL CTR PULL(E63) (A) | ||
| 59 | 8-98134 860-0 | DECAL TAIL GATE | 1 | 1602- | A CD F | REAR BODY DBL WALL CTR PULL(E63) (B) | ||
| 4 | 8-98164 912-0 | EMBLEM RAD GRILLE | 1 | 1602- | ABCDEF |
