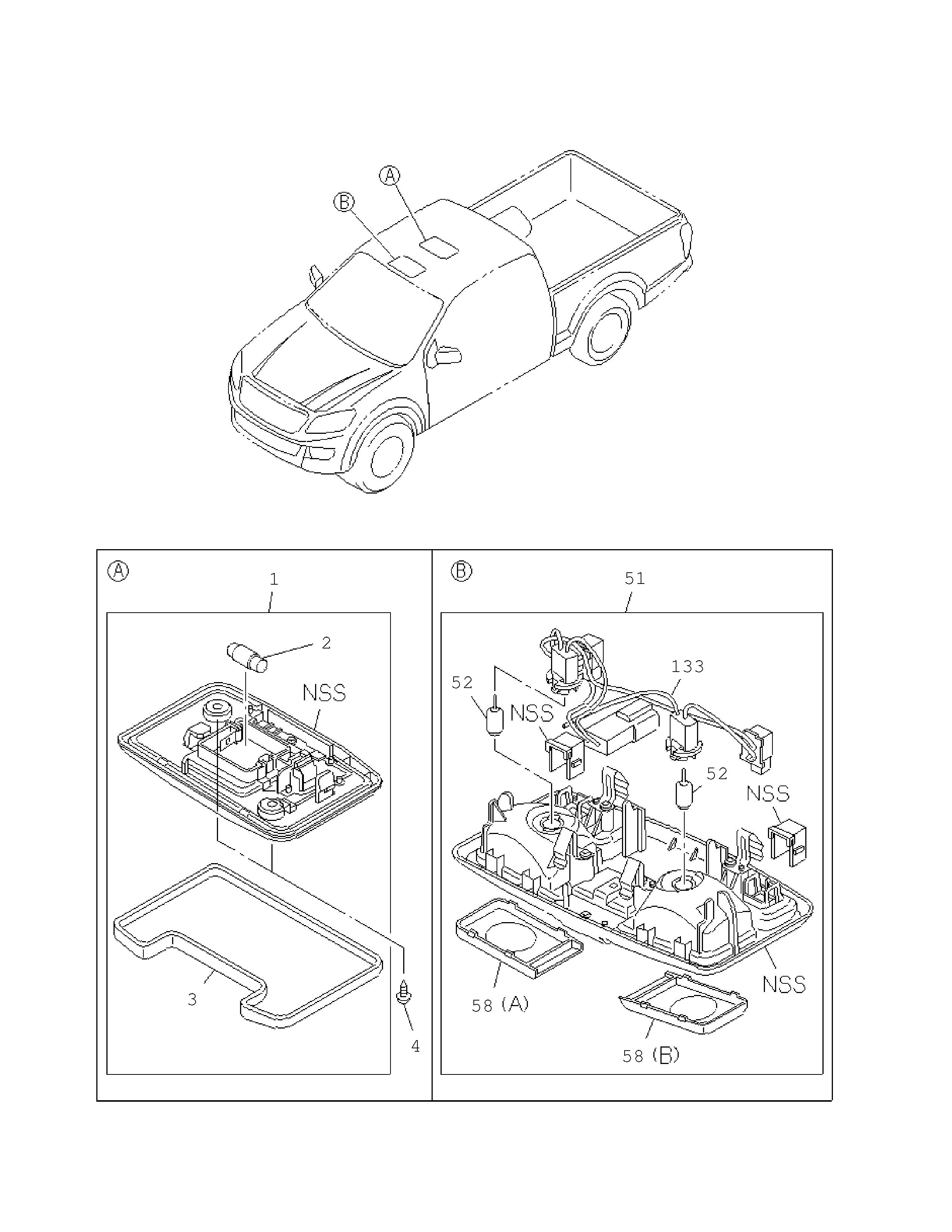

8-05 | INTERIOR LAMP
DMAX
D-MAX 2016
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 133 | 8-97176 526-0 | SOCKET ASM SPOT LAMP | 1 | 1602- | A CD F | MAP LAMP<C74 > | ||
| 2 | 8-97128 771-0 | BULB ROOM LAMP | 1 | 1602- | ABCDEF | 12V 10W | ||
| 4 | 0-71040 512-0 | SCREW ROOM LAMP | 2 | 1602- | ABCDEF | M5X12 TAPPING | ||
| 58 | 8-97333 440-0 | LENS SPOT LAMP | 1 | 1602- | A CD F | MAP LAMP<C74 > (A) | ||
| 58 | 8-97333 441-0 | LENS SPOT LAMP | 1 | 1602- | A CD F | MAP LAMP<C74 > (B) | ||
| 51 | 8-97465 462-0 | LAMP ASM SPOT | 1 | 1602- | A CD F | MAP LAMP<C74 > GRAY | ||
| 1 | 8-97419 992-0 | LAMP ASM ROOM | 1 | 1602- | ABCDEF | GRAY | ||
| 52 | 8-94124 595-0 | BULB SPOT LAMP | 2 | 1602- | A CD F | MAP LAMP<C74 > 12V 5W | ||
| 3 | 8-97333 429-0 | LENS ROOM LAMP | 1 | 1602- | ABCDEF |
