8-28 | CHASSIS ELECTRICAL
DMAX
D-MAX 2016

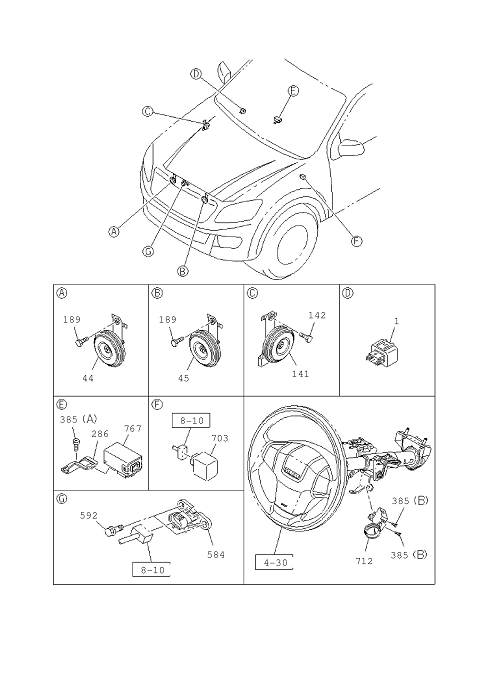

| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 286 | 8-98102 502-2 | BRACKET | 1 | 1602- | CD F | PASSIVE ENTRY AND START SYSTEM (B) | ||
| 703 | 8-98269 669-0 | TIMER DEFOGGER | 1 | 1602- | A CD F | REAR DEFOGGER<C49> EXC. PASSIVE ENTRY AND START S P3>,REMOTE CONT DOOR LOCK<AP5> | ||
| 385 | 8-98167 449-0 | BOLT CONT UNIT | 1 | 1602- | ABCDEF | PASSIVE ENTRY AND START SYSTEM EMOTE CONT DOOR LOCK<AP5> 08.083 (A) M5X16 TAPPING | ||
| 286 | 8-98102 503-0 | BRACKET | 1 | 1602- | ABCDEF | PASSIVE ENTRY AND START SYSTEM EMOTE CONT DOOR LOCK<AP5> (A) | ||
| 385 | 0-36230 412-0 | BOLT CONT UNIT | 2 | 1602- | ABCDEF | 4JK1-TCX ENG(LR0),4JJ1-TCX ENG JK1-TCY ENG(RDX) IMMOBILIZER SYSTEM< 7KC> EXC. PASSIVE ENTRY AND START S P3 >,REMOTE CONT DOOR LOCK<AP5 > 02.510 (B) M4X12 W/LK&PL WASHER | ||
| 142 | 8-98164 836-0 | BOLT HORN,ANTI THEFT | 1 | 1602- | CD F | REMOTE CONT DOOR LOCK W/ANTI T Y> 02 . 559 M6X14 W/PL WASHER | ||
| 385 | 0-36230 412-0 | BOLT CONT UNIT | 2 | 1602- | ABCDEF | REMOTE CONT DOOR LOCK<AP5 > IMMOBILIZER SYSTEM< 7KC> 02 . 510 (B) M4X12 W/LK&PL WASHER | ||
| 592 | 0-28650 616-0 | BOLT SENSOR | 2 | 1602- | ABCDEF | 4JK1-TCX ENG(LR0),4JJ1-TCX ENG JK1-TCY ENG(RDX) 02 .343 M6X16 FLANGE | ||
| 712 | 8-98255 847-0 | CONTROL UNIT ANTI THEFT | 1 | 1602- | ABCDEF | 4JK1-TCX ENG(LR0),4JJ1-TCX ENG JK1-TCY ENG(RDX) IMMOBILIZER SYSTEM< 7KC> EXC. PASSIVE ENTRY AND START SY P3> | ||
| 734 | 8-98192 897-0 | ALARM MULTI | 1 | 1602- | CD F | PASSIVE ENTRY AND START SYSTEM | ||
| 385 | 8-98167 449-0 | BOLT CONT UNIT | 2 | 1602- | CD F | PASSIVE ENTRY AND START SYSTEM 08.083 (A) M5X16 TAPPING | ||
| 767 | 8-98076 338-1 | RECEIVER ASM KEYLESS ENTRY | 1 | 1602- | ABCDEF | REMOTE CONT DOOR LOCK<AP5> | ||
| 189 | 8-98164 836-0 | BOLT HORN | 1 | 1602- | BCDEF | DUAL TONE HORN<U0 5> 02 . 559 M6X14 W/PL WASHER | ||
| 1 | 8-98270 253-0 | UNIT FLASHER | 1 | 1602- | ABCDEF | |||
| 767 | 8-98306 421-0 | RECEIVER ASM KEYLESS ENTRY | 1 | 1602- | CD F | PASSIVE ENTRY AND START SYSTEM | ||
| 584 | 8-98020 514-0 | SENSOR PRESSURE | 1 | 1602- | ABCDEF | 4JK1-TCX ENG(LR0),4JJ1-TCX ENG JK1-TCY ENG(RDX) 03.331 | ||
| 44 | 8-98084 022-1 | HORN HIGH NOTE | 1 | 1602- | BCDEF | DUAL TONE HORN<U0 5> | ||
| 189 | 8-98164 836-0 | BOLT HORN | 1 | 1602- | ABCDEF | 02 . 559 M6X14 W/PL WASHER | ||
| 189 | 8-98164 836-0 | BOLT HORN | 1 | 1602- | A | 02 . 559 M6X14 W/PL WASHER | ||
| 45 | 8-98084 023-0 | HORN LOW NOTE | 1 | 1602- | ABCDEF | |||
| 141 | 8-98164 588-0 | HORN ANTI THEFT | 1 | 1602- | CD F | REMOTE CONT DOOR LOCK W/ANTI T Y> | ||
| 44 | 8-98084 022-1 | HORN HIGH NOTE | 1 | 1602- | A | |||
| 676 | 8-98322 540-0 | CONTROL UNIT KEYLESS ENTRY | 1 | 1602- | CD F | PASSIVE ENTRY AND START SYSTEM |
