8-80 | WINDSHIELD WIPER AND WASHER
DMAX
D-MAX 2016
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|

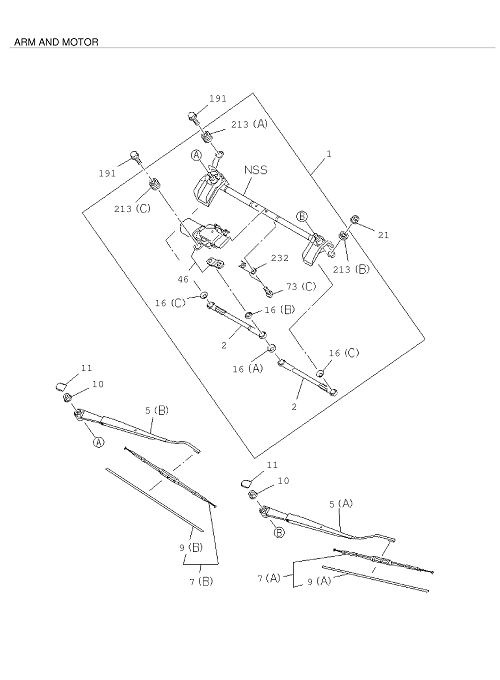

| 1 | 8-98057 449-1 | LINK ASM FRT WIPER | 1 | 1602- | ABCDEF | |||
| 213 | 8-98193 850-0 | RUBBER MTG | 1 | 1602- | ABCDEF | (C) | ||
| 11 | 8-98101 104-0 | COVER WIPER ARM | 2 | 1602- | ABCDEF | |||
| 73 | 8-98193 851-0 | BOLT | 2 | 1602- | ABCDEF | (C) M6X32 | ||
| 5 | 8-98193 813-0 | ARM WIPER | 1 | 1602- | ABCDEF | (A) | ||
| 16 | 8-98193 846-0 | SEAL BALL JOINT | 1 | 1602- | ABCDEF | (B) | ||
| 37 | 8-98193 853-0 | TUBE ASM WASHER TANK | 1 | 1602- | ABCDEF | (A) L=130 | ||
| 191 | 8-98048 997-0 | BOLT WIPER LINK | 2 | 1602- | ABCDEF | M6X33 W/PL WASHER | ||
| 37 | 8-98193 855-0 | TUBE ASM WASHER TANK | 1 | 1602- | ABCDEF | (C) L=200 | ||
| 10 | 8-98049 367-0 | NUT WIPER ARM TO WIPER PIVOT | 2 | 1602- | ABCDEF | M10 FLANGE | ||
| 213 | 8-98193 849-0 | RUBBER MTG | 1 | 1602- | ABCDEF | (B) | ||
| 232 | 8-98196 564-0 | PLATE FIXING | 1 | 1602- | ABCDEF | |||
| 30 | 8-97314 350-0 | MOTOR ASM FRT WASHER TANK | 1 | 1602- | ABCDEF | |||
| 2 | 8-98193 802-0 | LINK FRT WIPER | 1 | 1602- | ABCDEF | |||
| 36 | 8-98193 807-1 | HOSE WASHER | 1 | 1602- | ABCDEF | (A) L=110 | ||
| 16 | 8-98193 847-0 | SEAL BALL JOINT | 2 | 1602- | ABCDEF | (C) | ||
| 5 | 8-98193 629-0 | ARM WIPER | 1 | 1602- | ABCDEF | (B) | ||
| 34 | 8-98194 286-0 | CAP WASHER TANK | 1 | 1602- | ABCDEF | |||
| 16 | 8-98193 845-0 | SEAL BALL JOINT | 1 | 1602- | ABCDEF | (A) | ||
| 36 | 8-98193 808-1 | HOSE WASHER | 1 | 1602- | ABCDEF | (B) L=630 | ||
| 7 | 8-98193 815-0 | BLADE WIPER | 1 | 1602- | ABCDEF | (A) L=450 | ||
| 40 | 8-97855 163-0 | JOINT WASHER HOSE | 1 | 1602- | ABCDEF | (B) 3WAY W/CLIP | ||

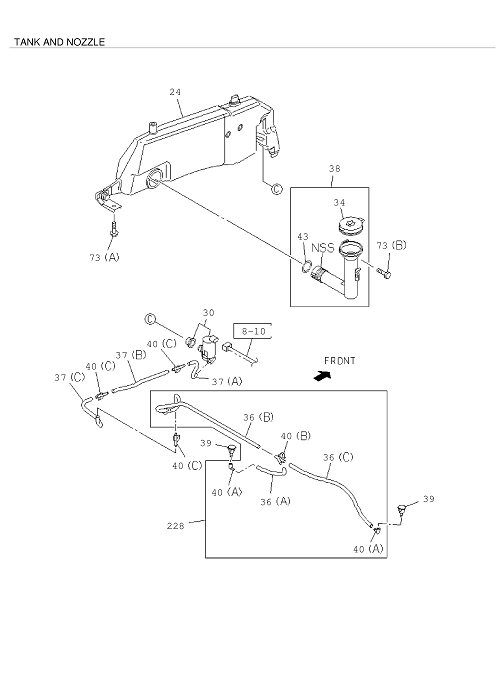

| 24 | 8-98057 455-0 | TANK ASM WASHER | 1 | 1602- | ABCDEF | |||
| 43 | 8-98194 287-0 | RUBBER GASKET,TANK | 1 | 1602- | ABCDEF | |||
| 2 | 8-98193 801-0 | LINK FRT WIPER | 1 | 1602- | ABCDEF | |||
| 40 | 8-98193 811-0 | JOINT WASHER HOSE | 3 | 1602- | ABCDEF | (C) | ||
| 9 | 8-98193 819-0 | RUBBER FRT WIPER BLADE | 1 | 1602- | ABCDEF | (A) L=450 | ||
| 46 | 8-98142 507-0 | MOTOR ASM FRT WINDSHIELD WIPER | 1 | 1602- | ABCDEF | |||
| 36 | 8-98193 809-1 | HOSE WASHER | 1 | 1602- | ABCDEF | (C) L=380 | ||
| 9 | 8-97349 901-0 | RUBBER FRT WIPER BLADE | 1 | 1602- | ABCDEF | (B) L=550 | ||
| 7 | 8-97349 900-0 | BLADE WIPER | 1 | 1602- | ABCDEF | (B) L=550 | ||
| 228 | 8-98057 506-1 | HOSE ASM WASHER | 1 | 1602- | ABCDEF | |||
| 21 | 8-98049 368-0 | NUT WIPER LINK PIVOT | 1 | 1602- | ABCDEF | 16.065 M6 W/DISHED WASHER | ||
| 39 | 8-98067 859-3 | NOZZLE WINDSHIELD WASHER | 2 | 1602- | ABCDEF | |||
| 73 | 8-98062 140-0 | BOLT | 1 | 1602- | ABCDEF | 02.762 (B) M6X18 TAPPING W/LK&PL WA | ||
| 73 | 8-98049 357-0 | BOLT | 1 | 1602- | ABCDEF | 03.895 (A) M6X16 FLANGE | ||
| 38 | 8-98057 456-0 | HOSE JOINT,TANK | 1 | 1602- | ABCDEF | |||
| 213 | 8-98193 848-0 | RUBBER MTG | 1 | 1602- | ABCDEF | (A) | ||
| 37 | 8-98193 854-0 | TUBE ASM WASHER TANK | 1 | 1602- | ABCDEF | (B) L=190 | ||
| 40 | 8-98193 805-0 | JOINT WASHER HOSE | 2 | 1602- | ABCDEF | (A) |
