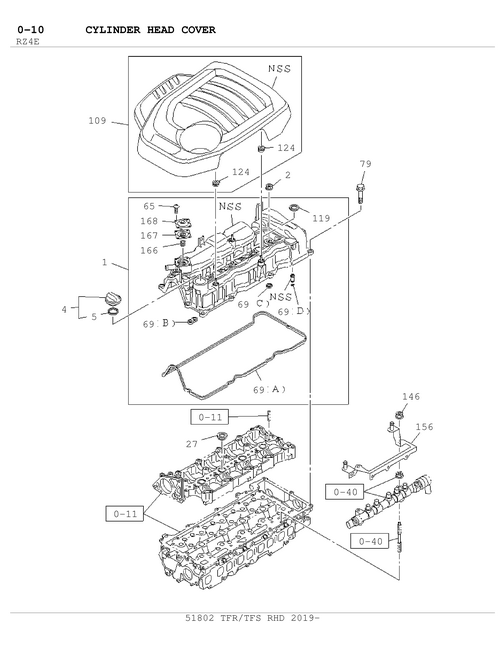

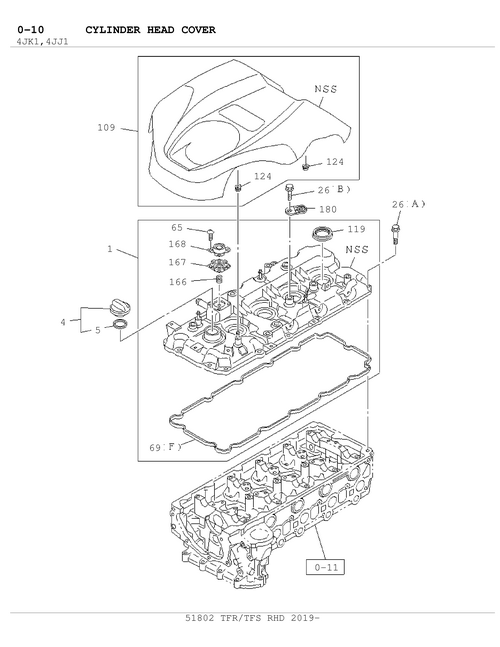

0-10 | CYLINDER HEAD COVER
DMAX
D-MAX 2019
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 119 | I8-98228 371-0 | COVER; SEAL,NOZZLE | 4 | 1810- | DE | |||
| 4 | I8-98026 084-0 | CAP; OIL FILLER | 1 | 1810- | AB DE | |||
| 65 | I8-98209 387-0 | SCREW; ADAPTER | 4 | 1809-1809 | AB D | M4X10 | ||
| 35 | I0-28050 812-0 | BOLT; NOISE SHIELD COVER | 2 | 1809- | C | 02.343 M8X12 FLANGE | ||
| 2 | I0-91180 106-0 | NUT; COVER,HD | 1 | 1809- | AB | |||
| 180 | I8-98244 154-0 | DAMPENER; CYL HEAD | 1 | 1810- | D | EMISSION SYSTEM R15-04(K75 IFICATION(NT2),EURO3 SPECI ),EURO4 SPECIFICATION(NT4) | ||
| 26 | I8-98228 370-0 | BOLT; CYL HD COVER | 15 | 1809-1809 | D | (A) M6X25.7 FLANGE | ||
| 26 | I0-28050 820-0 | BOLT; CYL HD COVER | 1 | 1810- | D | EMISSION SYSTEM R15-04 (K75 IFICATION(NT2),EURO3 SPECI ),EURO4 SPECIFICATION(NT4) 04 .338 (B) M8X2 0 FLANGE | ||
| 180 | I8-98244 154-0 | DAMPENER; CYL HEAD | 1 | 1809-1809 | D | EMISSION SYSTEM R15-04(K75 IFICATION(NT2),EURO3 SPECI ),EURO4 SPECIFICATION(NT4) | ||
| 69 | I8-98228 369-0 | GASKET; HD TO COVER | 1 | 1810- | DE | (F) ALSO INCLUDED IN GASKET SE D) | ||
| 26 | I0-28050 820-0 | BOLT; CYL HD COVER | 1 | 1809-1809 | D | EMISSION SYSTEM R15-04(K75 IFICATION(NT2),EURO3 SPECI ),EURO4 SPECIFICATION(NT4) 04.338 (B) M8X2 0 FLANGE | ||
| 79 | I8-98228 370-0 | BOLT; COVER | 12 | 1809- | AB | 08 . 900 M6X2 5.7 FLANGE | ||
| 26 | I0-28050 820-0 | BOLT; CYL HD COVER | 1 | 1810- | E | 04.338 (B) M8X2 0 FLANGE | ||
| 168 | I8-98234 092-0 | COVER; VENTILATOR | 1 | 1810- | AB DE | |||
| 166 | I8-97088 445-0 | SPRING; VENTILATOR | 1 | 1810- | AB DE | .29375 | ||
| 69 | I8-98228 369-0 | GASKET; HD TO COVER | 1 | 1809-1809 | D | (F) ALSO INCLUDED IN GASKET SE D) | ||
| 119 | I8-98228 371-0 | COVER; SEAL,NOZZLE | 4 | 1809-1809 | D | |||
| 1 | I8-98344 846-0 | COVER; CYL HD | 1 | 1809-1809 | D | |||
| 1 | I8-98344 846-0 | COVER; CYL HD | 1 | 1810- | DE | |||
| 65 | I8-98209 387-0 | SCREW; ADAPTER | 4 | 1810- | AB DE | M4X10 | ||
| 166 | I8-97088 445-0 | SPRING; VENTILATOR | 1 | 1809-1809 | AB D | .29375 | ||
| 5 | I8-97918 298-0 | GASKET; OIL FILLER | 1 | 1810- | AB DE | ID=32 OD=4 0 | ||
| 167 | I8-98226 101-1 | DIAPHRAGM; VENTILATOR | 1 | 1810- | AB DE | |||
| 4 | I8-98026 084-0 | CAP; OIL FILLER | 1 | 1809-1809 | AB D | |||
| 168 | I8-98234 092-0 | COVER; VENTILATOR | 1 | 1809-1809 | AB D | |||
| 180 | I8-98244 154-0 | DAMPENER; CYL HEAD | 1 | 1810- | E | |||
| 26 | I8-98228 370-0 | BOLT; CYL HD COVER | 15 | 1810- | DE | (A) M6X25.7 FLANGE | ||
| 167 | I8-98226 101-1 | DIAPHRAGM; VENTILATOR | 1 | 1809-1809 | AB D | |||
| 146 | I0-91180 108-0 | NUT; BRKT | 2 | 1809- | A | 01.062 M8 FLANGE |
