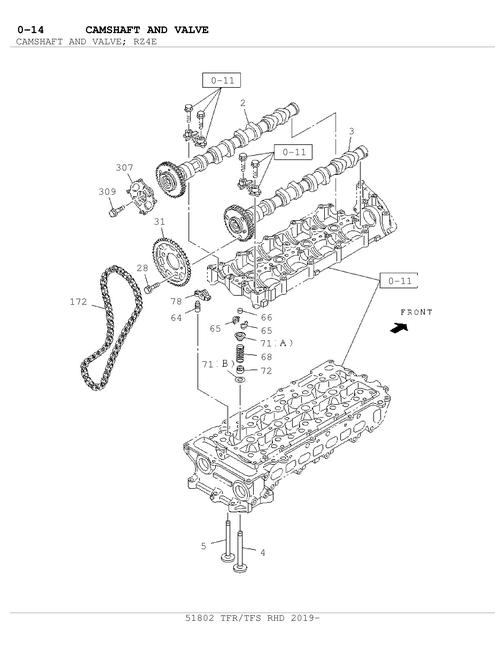

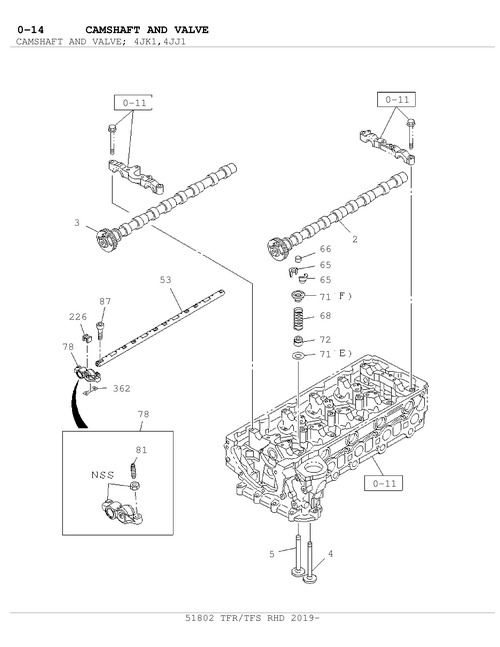

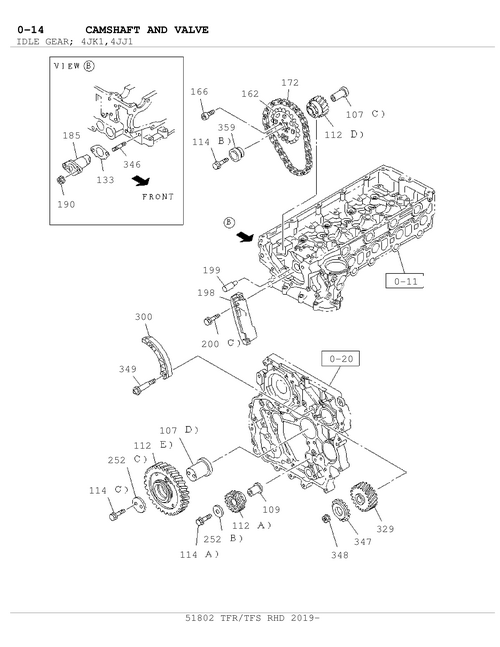

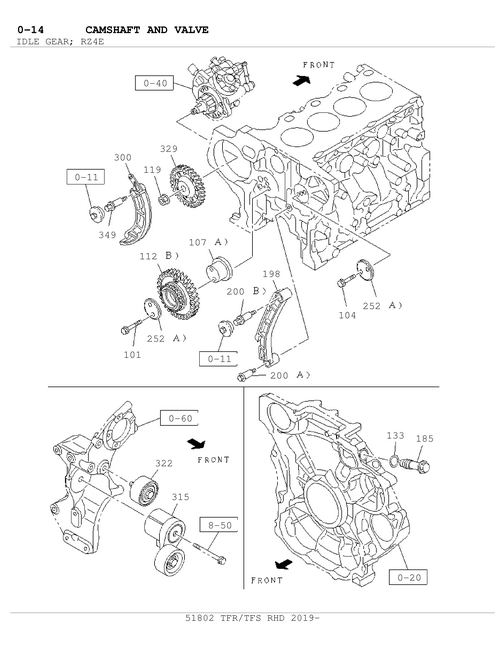

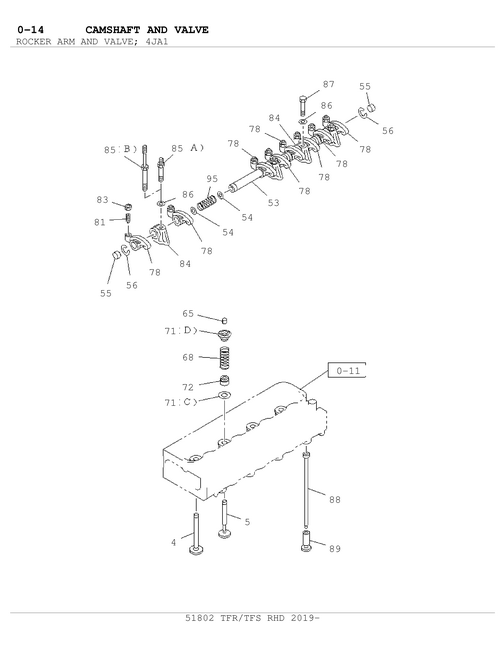

0-14 | CAMSHAFT AND VALVE
DMAX
D-MAX 2019
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 348 | I8-97312 423-2 | NUT; SPROCKET | 1 | 1809-1809 | D | M14 FLANGE | ||
| 172 | I8-98119 279-1 | CHAIN; TIMING,CM/SHF | 1 | 1809-1809 | D | |||
| 81 | I8-98029 893-0 | SCREW; ADJ,ROCKER ARM | 16 | 1809-1809 | D | M8 L=22 | ||
| 53 | I8-98244 914-0 | SHAFT; ROCKER ARM | 2 | 1810- | DE | |||
| 133 | I8-97312 336-0 | GASKET; CHAIN TENSIONER | 1 | 1809-1809 | D | ALSO INCLUDED IN GASKET SET( D) | ||
| 166 | I0-58330 616-0 | BOLT; SPROCKET TO LAYSHAFT | 6 | 1810- | DE | M6X16 HEX SOCKET | ||
| 198 | I8-98173 188-0 | GUIDE; TIMING CHAIN | 1 | 1810- | DE | |||
| 112 | I8-98233 470-1 | GEAR; IDLE | 1 | 1810- | DE | (E) Z=80 | ||
| 112 | I8-98233 470-1 | GEAR; IDLE | 1 | 1809-1809 | D | (E) Z=80 | ||
| 65 | I8-94239 501-0 | COLLAR; SPLIT | 32 | 1809-1809 | D | |||
| 114 | I8-98176 233-0 | BOLT; IDLE GEAR | 1 | 1809-1809 | D | 05.506 (B) M12X75 FLANGE | ||
| 114 | I0-28061 060-0 | BOLT; IDLE GEAR | 2 | 1810- | DE | (C) M10X60 FLANGE | ||
| 66 | I8-98147 945-0 | CAP; VLV STEM END | 16 | 1809-1809 | D | |||
| 172 | I8-98119 279-1 | CHAIN; TIMING,CM/SHF | 1 | 1810- | DE | |||
| 252 | I8-97312 316-1 | FLANGE; IDLE SHAFT | 1 | 1809-1809 | D | (C) | ||
| 71 | I8-97311 668-0 | SEAT; SPR | 16 | 1809-1809 | D | (F) UPPER OD=2 9.5 | ||
| 83 | I0-91111 508-0 | NUT; ADJ SCREW,LK | 8 | 1809- | C | 00.777 M8 | ||
| 112 | I8-98021 052-1 | GEAR; IDLE | 1 | 1810- | DE | (A) Z=34 | ||
| 114 | I8-98176 233-0 | BOLT; IDLE GEAR | 1 | 1810- | DE | 05.506 (B) M12X75 FLANGE | ||
| 78 | I8-98204 885-1 | ARM; ROCKER | 16 | 1810- | DE | |||
| 5 | I8-97309 677-1 | VALVE; EXH | 8 | 1810- | DE | |||
| 166 | I0-58330 616-0 | BOLT; SPROCKET TO LAYSHAFT | 6 | 1809-1809 | D | M6X16 HEX SOCKET | ||
| 359 | I8-97947 983-0 | SLEEVE; GEAR | 1 | 1810- | DE | |||
| 226 | I8-98204 889-0 | SPRING; CMPR,ROCKER ARM | 8 | 1809-1809 | D | |||
| 44 | I0-28050 816-0 | BOLT | 2 | 1809- | C | 02.343 (A) M8X16 FLANGE | ||
| 114 | I0-28161 260-0 | BOLT; IDLE GEAR | 1 | 1809-1809 | D | (A) M12X60 FLANGE | ||
| 68 | I8-97311 669-0 | SPRING; VLV | 16 | 1809-1809 | D | H=4 9 NATURAL | ||
| 81 | I8-98029 893-0 | SCREW; ADJ,ROCKER ARM | 16 | 1810- | DE | M8 L=22 | ||
| 104 | I0-28151 020-0 | BOLT; SHAFT IDLE | 2 | 1809- | AB | 03.417 M10X2 0 FLANGE | ||
| 348 | I8-97312 423-2 | NUT; SPROCKET | 1 | 1810- | DE | M14 FLANGE | ||
| 300 | I8-98119 278-1 | LEVER; TENSION,TIMING CHAIN | 1 | 1810- | DE | |||
| 162 | I8-97312 331-1 | SPROCKET; IDLE | 1 | 1809-1809 | D | |||
| 107 | I8-97312 315-2 | SHAFT; IDLE GEAR | 1 | 1810- | DE | (D) | ||
| 349 | I8-97312 328-0 | PIVOT; CHAIN LEVER | 1 | 1809-1809 | D | |||
| 359 | I8-97947 983-0 | SLEEVE; GEAR | 1 | 1809-1809 | D | |||
| 200 | I1-09070 120-1 | BOLT; CHAIN GUIDE,LWR | 2 | 1809-1809 | D | 01.064 (C) M8X20 FLANGE | ||
| 362 | I8-98233 620-0 | PLATE | 6 | 1810- | DE | |||
| 347 | I8-98246 954-0 | SPROCKET; I/PUMP | 1 | 1809-1809 | D | |||
| 199 | I8-97356 061-1 | JET; OIL,TIMING CHAIN | 1 | 1810- | DE | |||
| 107 | I8-97312 315-2 | SHAFT; IDLE GEAR | 1 | 1809-1809 | D | (D) | ||
| 107 | I8-98245 905-0 | SHAFT; IDLE GEAR | 1 | 1809-1809 | D | (C) | ||
| 347 | I8-98246 954-0 | SPROCKET; I/PUMP | 1 | 1810- | DE | |||
| 72 | I8-97328 647-0 | SEAL; VLV GUIDE | 16 | 1809-1809 | D | ALSO INCLUDED IN GASKET SET( D) | ||
| 362 | I8-98233 620-0 | PLATE | 6 | 1809-1809 | D | |||
| 226 | I8-98204 889-0 | SPRING; CMPR,ROCKER ARM | 8 | 1810- | DE | |||
| 53 | I8-98244 914-0 | SHAFT; ROCKER ARM | 2 | 1809-1809 | D | |||
| 66 | I8-98147 945-0 | CAP; VLV STEM END | 16 | 1810- | DE | |||
| 78 | I8-98204 885-1 | ARM; ROCKER | 16 | 1809-1809 | D | |||
| 65 | I8-94239 501-0 | COLLAR; SPLIT | 32 | 1810- | DE | |||
| 87 | I8-98224 626-0 | BOLT; ROCKER SHAFT | 14 | 1810- | DE | 00.738 M6X25 HEX SOCKET | ||
| 252 | I8-97312 316-1 | FLANGE; IDLE SHAFT | 1 | 1810- | DE | (C) | ||
| 300 | I8-98119 278-1 | LEVER; TENSION,TIMING CHAIN | 1 | 1809-1809 | D | |||
| 68 | I8-97311 669-0 | SPRING; VLV | 16 | 1810- | DE | H=4 9 NATURAL | ||
| 190 | I0-91180 206-0 | NUT; CHAIN TENSIONER | 2 | 1810- | DE | 01.540 M6 FLANGE | ||
| 119 | I0-91180 114-0 | NUT; PULLEY | 1 | 1809- | B | 07.529 M14 FLANGE | ||
| 112 | I8-98231 907-0 | GEAR; IDLE | 1 | 1809-1809 | D | (D) Z=35 | ||
| 329 | I8-97312 298-3 | GEAR; INJ PUMP | 1 | 1809-1809 | D | Z=44 | ||
| 162 | I8-97312 331-1 | SPROCKET; IDLE | 1 | 1810- | DE | |||
| 346 | I0-41010 618-0 | STUD; CHAIN | 2 | 1809-1809 | D | 01.062 M6X18 L=27 | ||
| 4 | I8-97309 675-1 | VALVE; INL | 8 | 1809-1809 | D | |||
| 185 | I8-98258 885-0 | TENSIONER; CHAIN | 1 | 1810- | DE | |||
| 349 | I8-97312 328-0 | PIVOT; CHAIN LEVER | 1 | 1810- | DE | |||
| 133 | I8-97312 336-0 | GASKET; CHAIN TENSIONER | 1 | 1810- | DE | ALSO INCLUDED IN GASKET SET( D) | ||
| 71 | I8-97311 668-0 | SEAT; SPR | 16 | 1810- | DE | (F) UPPER OD=2 9.5 | ||
| 109 | I8-97312 319-1 | SHAFT; IDLE GEAR | 1 | 1810- | DE | |||
| 107 | I8-98245 905-0 | SHAFT; IDLE GEAR | 1 | 1810- | DE | (C) | ||
| 112 | I8-98231 907-0 | GEAR; IDLE | 1 | 1810- | DE | (D) Z=35 | ||
| 72 | I8-97328 647-0 | SEAL; VLV GUIDE | 16 | 1810- | DE | ALSO INCLUDED IN GASKET SET( D) | ||
| 87 | I8-98224 626-0 | BOLT; ROCKER SHAFT | 14 | 1809-1809 | D | 00.738 M6X2 5 HEX SOCKET | ||
| 252 | I8-97312 323-1 | FLANGE; IDLE SHAFT | 1 | 1810- | DE | (B) | ||
| 114 | I0-28161 260-0 | BOLT; IDLE GEAR | 1 | 1810- | DE | (A) M12X60 FLANGE | ||
| 4 | I8-97309 675-1 | VALVE; INL | 8 | 1810- | DE | |||
| 5 | I8-97309 677-1 | VALVE; EXH | 8 | 1809-1809 | D | |||
| 28 | I0-28050 820-0 | BOLT; CAM PULLEY | 3 | 1809- | AB | 04.338 M8X2 0 FLANGE | ||
| 112 | I8-98021 052-1 | GEAR; IDLE | 1 | 1809-1809 | D | (A) Z=34 | ||
| 198 | I8-98173 188-0 | GUIDE; TIMING CHAIN | 1 | 1809-1809 | D | |||
| 109 | I8-97312 319-1 | SHAFT; IDLE GEAR | 1 | 1809-1809 | D | |||
| 200 | I1-09070 120-1 | BOLT; CHAIN GUIDE,LWR | 2 | 1810- | DE | 01.064 (C) M8X20 FLANGE | ||
| 252 | I8-97312 323-1 | FLANGE; IDLE SHAFT | 1 | 1809-1809 | D | (B) | ||
| 346 | I0-41010 618-0 | STUD; CHAIN | 2 | 1810- | DE | 01.062 M6X18 L=27 | ||
| 329 | I8-97312 298-3 | GEAR; INJ PUMP | 1 | 1810- | DE | Z=44 | ||
| 185 | I8-98258 885-0 | TENSIONER; CHAIN | 1 | 1809-1809 | D | |||
| 71 | I8-97144 584-0 | SEAT; SPR | 16 | 1809-1809 | D | (E) LOWER OD=31 | ||
| 71 | I8-97144 584-0 | SEAT; SPR | 16 | 1810- | DE | (E) LOWER OD=31 | ||
| 190 | I0-91180 206-0 | NUT; CHAIN TENSIONER | 2 | 1809-1809 | D | 01.540 M6 FLANGE | ||
| 199 | I8-97356 061-1 | JET; OIL,TIMING CHAIN | 1 | 1809-1809 | D | |||
| 114 | I0-28061 060-0 | BOLT; IDLE GEAR | 2 | 1809-1809 | D | (C) M10X60 FLANGE |
