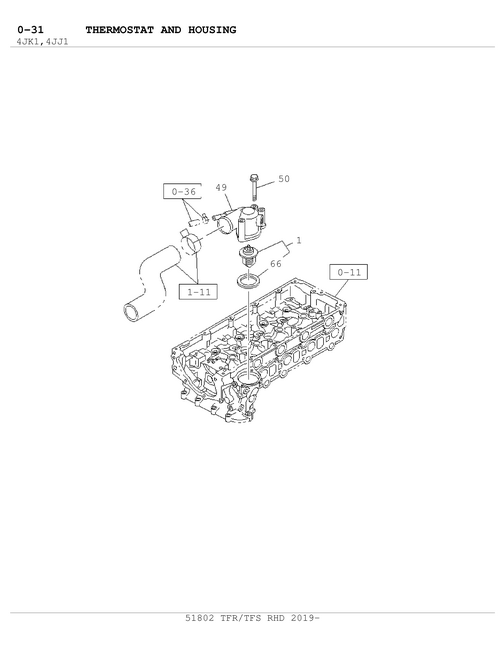

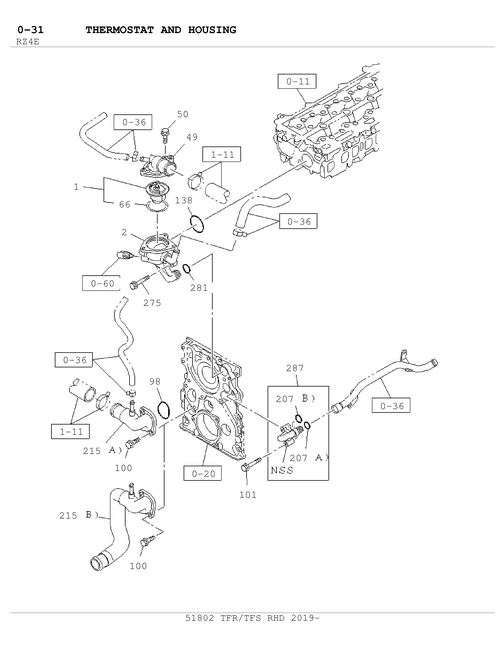

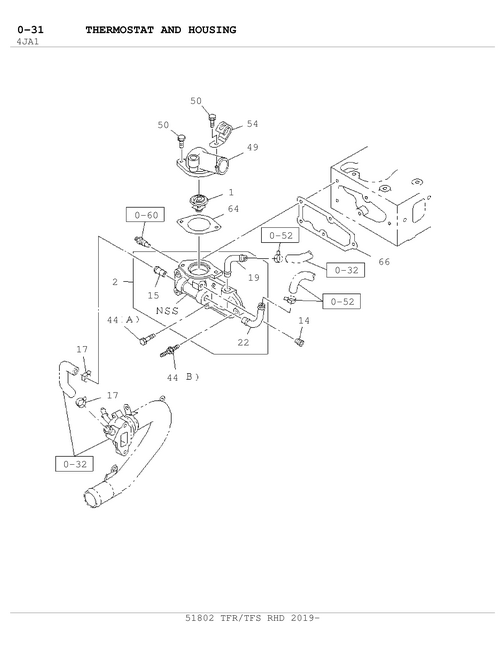

0-31 | THERMOSTAT AND HOUSING
DMAX
D-MAX 2019
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 50 | I0-28050 880-0 | BOLT; OUTLET PIPE | 2 | 1810- | DE | M8X8 0 FLANGE | ||
| 49 | I8-97355 456-7 | PIPE; WATER OUTLET | 1 | 1809-1809 | D | |||
| 49 | I8-97355 456-7 | PIPE; WATER OUTLET | 1 | 1810- | DE | |||
| 66 | I8-98114 587-0 | GASKET; THERMOSTAT HSG | 1 | 1809-1809 | AB D | |||
| 50 | I0-28050 880-0 | BOLT; OUTLET PIPE | 2 | 1809-1809 | D | M8X8 0 FLANGE | ||
| 66 | I8-98114 587-0 | GASKET; THERMOSTAT HSG | 1 | 1810- | AB DE | |||
| 1 | I8-98017 027-2 | THERMOSTAT8-97361-770-0 | 1 | 1810- | DE | 85 CELSIUS | ||
| 1 | I8-98017 027-2 | THERMOSTAT8-97361-770-0 | 1 | 1809-1809 | D | 85 CELSIUS |
