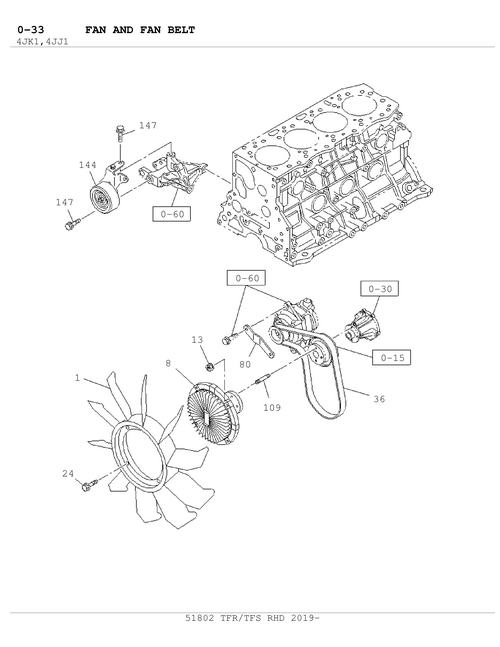

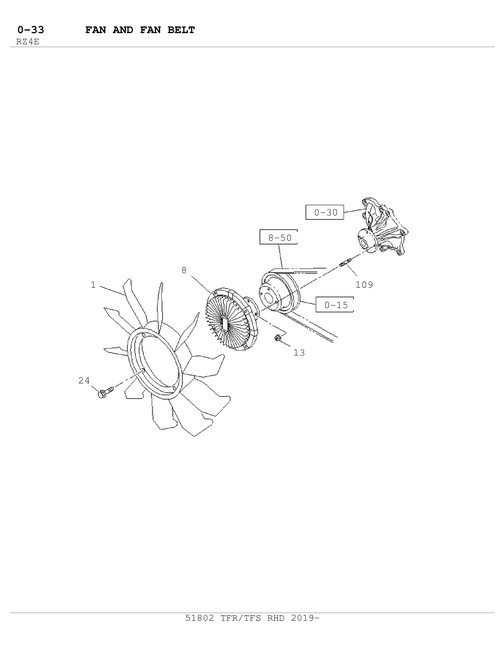

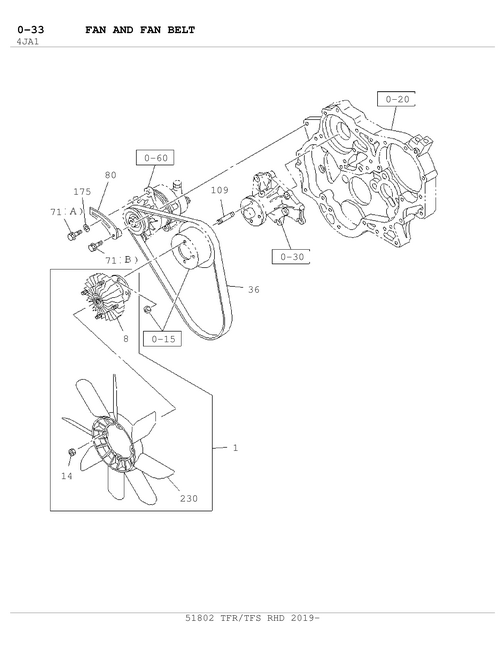

0-33 | FAN AND FAN BELT
DMAX
D-MAX 2019

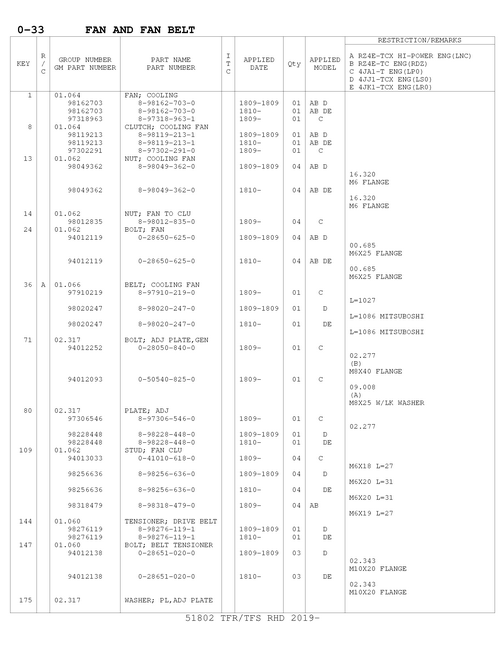

| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 80 | I8-98228 448-0 | PLATE; ADJ | 1 | 1809-1809 | D | |||
| 144 | I8-98276 119-1 | TENSIONER; DRIVE BELT | 1 | 1810- | DE | |||
| 13 | I8-98049 362-0 | NUT; COOLING FAN | 4 | 1810- | AB DE | |||
| 80 | I8-98228 448-0 | PLATE; ADJ | 1 | 1810- | DE | |||
| 24 | I0-28650 625-0 | BOLT; FAN | 4 | 1809-1809 | AB D | |||
| 36 | I8-98020 247-A | BELT; COOLING FAN | 1 | 1810- | DE | (IADG) | ||
| 109 | I0-41010 618-0 | STUD; FAN CLU | 4 | 1809- | C | |||
| 1 | I8-98162 703-0 | FAN; COOLING | 1 | 1810- | AB DE | |||
| 147 | I0-28651 020-0 | BOLT; BELT TENSIONER | 3 | 1809-1809 | D | |||
| 8 | I8-98119 213-1 | CLUTCH; COOLING FAN | 1 | 1810- | AB DE | |||
| 24 | I0-28650 625-0 | BOLT; FAN | 4 | 1810- | AB DE | |||
| 109 | I8-98256 636-0 | STUD; FAN CLU | 4 | 1809-1809 | D | |||
| 109 | I8-98256 636-0 | STUD; FAN CLU | 4 | 1810- | DE | |||
| 144 | I8-98276 119-1 | TENSIONER; DRIVE BELT | 1 | 1809-1809 | D | |||

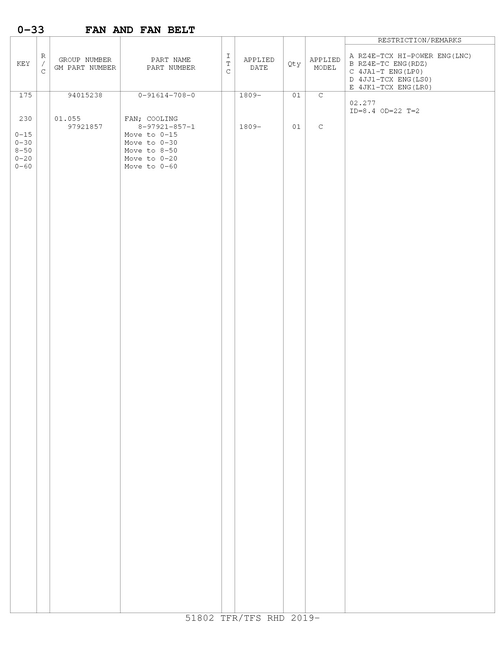

| 175 | I0-91614 708-0 | WASHER; P L,AD J PLATE | 1 | 1809- | C | 02.277 ID=8.4 OD=22 T=2 | ||
| 13 | I8-98049 362-0 | NUT; COOLING FAN | 4 | 1809-1809 | AB D | |||
| 1 | I8-98162 703-0 | FAN; COOLING | 1 | 1809-1809 | AB D | |||
| 36 | I8-98020 247-0 | BELT; COOLING FAN | 1 | 1810- | DE | |||
| 147 | I0-28651 020-0 | BOLT; BELT TENSIONER | 3 | 1810- | DE | |||
| 36 | I8-98020 247-0 | BELT; COOLING FAN | 1 | 1809-1809 | D | |||
| 8 | I8-98119 213-1 | CLUTCH; COOLING FAN | 1 | 1809-1809 | AB D |
