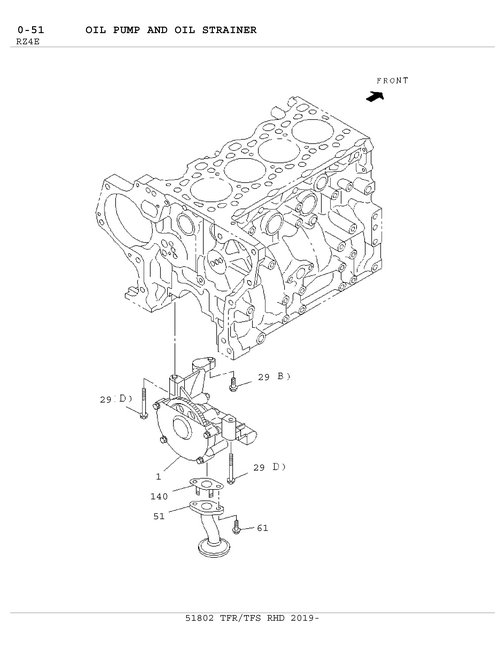

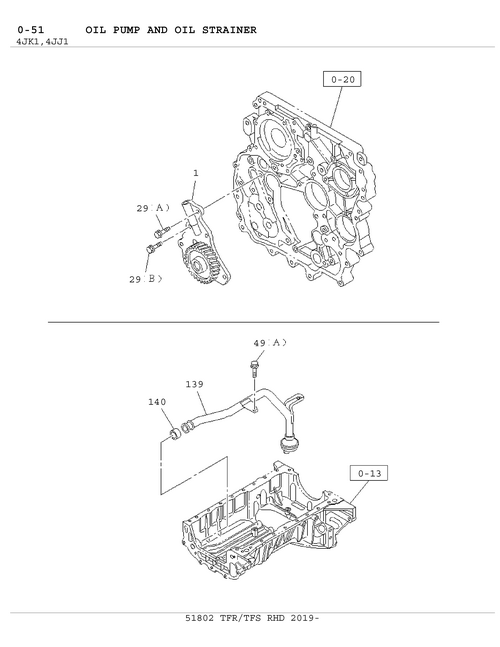

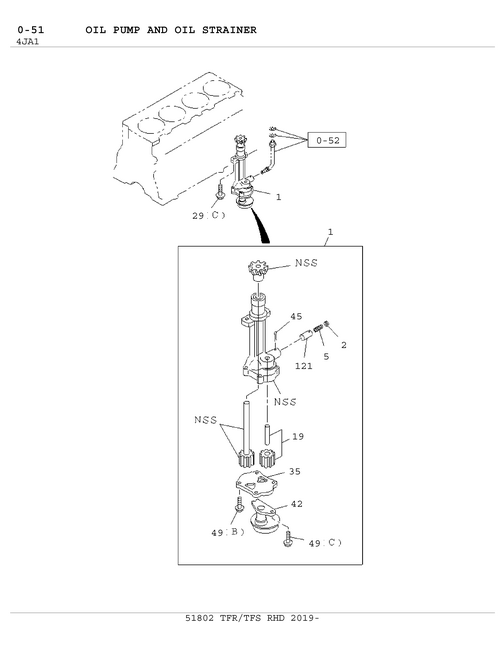

0-51 | OIL PUMP AND OIL STRAINER
DMAX
D-MAX 2019
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 29 | I0-28050 825-0 | BOLT; OIL PUMP | 2 | 1809- | C | 03.275 (C) M8X25 FLANGE | ||
| 61 | I0-58330 820-0 | BOLT; OIL STRAINER | 2 | 1809- | AB | 01.758 M8X2 0 HEX SOCKET | ||
| 49 | I0-28050 816-0 | BOLT; STRAINER,OIL PUMP | 2 | 1810- | DE | 02 . 343 (A) M8X16 FLANGE | ||
| 139 | I8-98132 012-0 | PIPE; OIL STRAINER | 1 | 1810- | DE | 4X4(TFS***) | ||
| 1 | I8-98232 624-1 | PUMP ASM; OIL | 1 | 1809-1809 | D | |||
| 140 | I8-97356 150-0 | GASKET; OIL STRAINER | 1 | 1810- | DE | ALSO INCLUDED IN GASKET SET(ENG | ||
| 49 | I0-28050 835-0 | BOLT; STRAINER,OIL PUMP | 2 | 1809- | C | 03.162 (C) M8X35 FLANGE | ||
| 139 | I8-98132 012-0 | PIPE; OIL STRAINER | 1 | 1809-1809 | D | 4X4(TFS***) | ||
| 29 | I0-28050 845-0 | BOLT; OIL PUMP | 2 | 1809-1809 | D | 09.173 (A) M8X4 5 FLANGE | ||
| 29 | I0-28050 845-0 | BOLT; OIL PUMP | 2 | 1810- | DE | 09.173 (A) M8X4 5 FLANGE | ||
| 29 | I0-28050 830-0 | BOLT; OIL PUMP | 4 | 1809-1809 | D | 00.206 (B) M8X30 FLANGE | ||
| 49 | I0-28050 816-0 | BOLT; STRAINER,OIL PUMP | 2 | 1809-1809 | D | 02 . 343 (A) M8X16 FLANGE | ||
| 29 | I0-28050 860-0 | BOLT; OIL PUMP | 2 | 1809- | AB | 04 . 686 (D) M8X6 0 FLANGE | ||
| 29 | I0-28050 830-0 | BOLT; OIL PUMP | 4 | 1810- | DE | 00.206 (B) M8X30 FLANGE | ||
| 49 | I0-28050 825-0 | BOLT; STRAINER,OIL PUMP | 2 | 1809- | C | 03.275 (B) M8X25 FLANGE | ||
| 1 | I8-98232 624-1 | PUMP ASM; OIL | 1 | 1810- | DE | |||
| 29 | I0-28050 830-0 | BOLT; OIL PUMP | 1 | 1809- | AB | 00.206 (B) M8X30 FLANGE | ||
| 140 | I8-97356 150-0 | GASKET; OIL STRAINER | 1 | 1809-1809 | D | ALSO INCLUDED IN GASKET SET(ENG |
