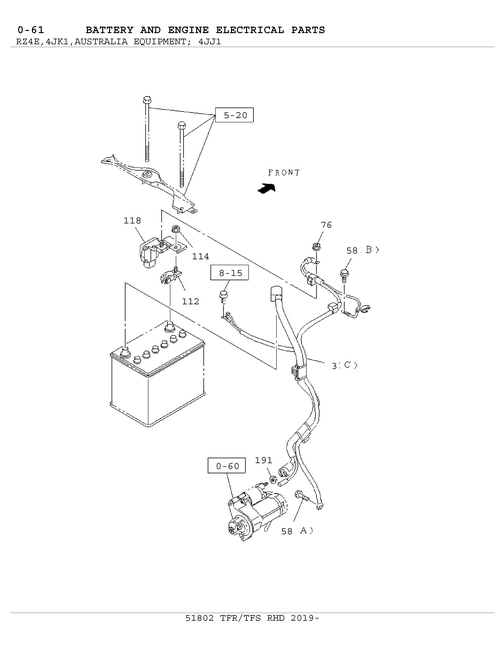

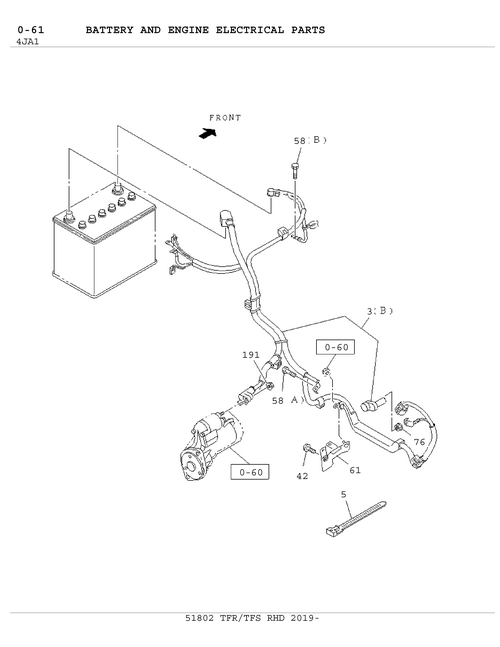

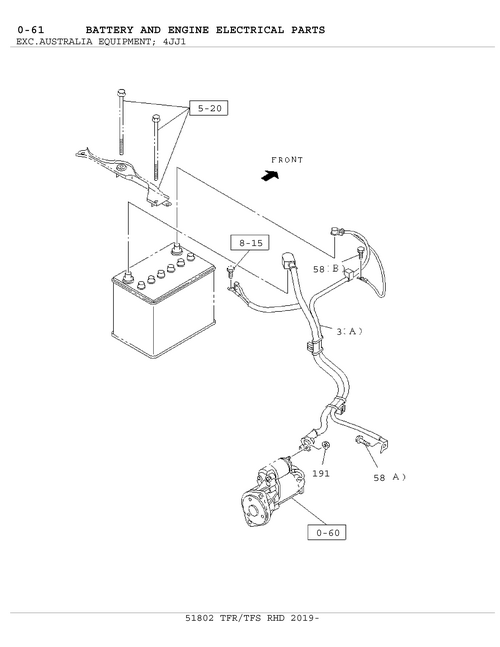

0-61 | BATTERY AND ENGINE ELECTRICAL PARTS
DMAX
D-MAX 2019
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 58 | I0-28650 820-0 | BOLT; CABLE,BATTERY | 1 | 1809- | AB | 01.531 (A) M8X2 0 FLANGE | ||
| 76 | I0-91180 108-0 | NUT; BATTERY CABLE | 1 | 1809- | D | AUSTRALIA EQUIPMENT(B13 01. 062 M8 FLANGE | ||
| 58 | I0-28651 020-0 | BOLT; CABLE,BATTERY | 1 | 1810- | CDE | (A) M10X2 0 FLANGE | ||
| 3 | I8-98238 380-3 | HARNESS; CABLE,BATTERY TO STARTE | 1 | 1810- | D | BATTERY 80D26L(TM1) EXC. AUSTRALIA EQUIPMEN (A) | ||
| 42 | I0-28650 616-0 | BOLT; BRKT,BATTERY CABLE | 1 | 1809- | C | M6X16 FLANGE | ||
| 58 | I0-28651 020-0 | BOLT; CABLE,BATTERY | 1 | 1809-1809 | CD | (A) M10X2 0 FLANGE | ||
| 3 | I8-98238 380-3 | HARNESS; CABLE,BATTERY TO STARTE | 1 | 1810- | E | BATTERY 80D26L(TM1) (A) | ||
| 3 | I8-98238 380-3 | HARNESS; CABLE,BATTERY TO STARTE | 1 | 1809-1809 | D | BATTERY 80D26L(TM1) EXC. AUSTRALIA EQUIPMEN (A) | ||
| 76 | I0-91180 108-0 | NUT; BATTERY CABLE | 1 | 1809- | ABC | 01.062 M8 FLANGE | ||
| 114 | I0-91180 108-0 | NUT; CABLE,BATTERY TERMINAL | 1 | 1809-1809 | AB | 01. 062 M8 FLANGE | ||
| 114 | I0-91180 108-0 | NUT; CABLE,BATTERY TERMINAL | 1 | 1810- | D | AUSTRALIA EQUIPMENT(B13 01.062 M8 FLANGE | ||
| 58 | I8-98164 836-0 | BOLT; CABLE,BATTERY | 1 | 1809- | ABCDE | 02.559 (B) M6X14 W/PL WASHER | ||
| 191 | I0-91180 108-0 | NUT; STARTER | 1 | 1809- | ABCDE | 01.062 M8 FLANGE | ||
| 114 | I0-91180 108-0 | NUT; CABLE,BATTERY TERMINAL | 1 | 1810- | AB | 01. 062 M8 FLANGE |
