| 15 |
I8-94406 982-0 |
|
RETAINER; ROTOR,GEN |
1 |
|
|
|
2307 For assy 8982258120 |
| 99 |
I5-19679 003-0 |
|

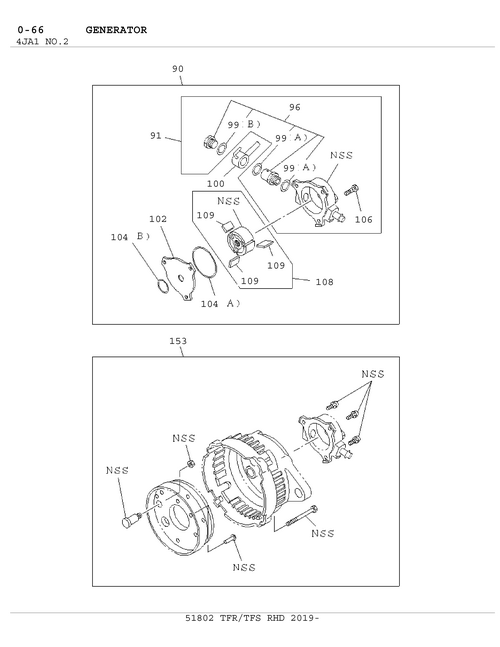

GASKET; VAC PUMP |
1 |
|
|
|
(B) ID=12 OD=24 For assy 8972458502 |
| 19 |
I8-98232 101-0 |
|
PULLEY; GEN |
1 |
|
|
|
For assy 8982258130 |
| 17 |
I8-98232 102-0 |
|
COVER ASM; FRT,GEN |
1 |
|
|
|
For assy 8982258130 |
| 2 |
I8-97378 924-0 |
|
ROTOR; GEN |
1 |
|
|
|
For assy 8983852170 |
| 11 |
I8-98232 110-0 |
|
COVER; RR,GEN |
1 |
|
|
|
For assy 8982258130 |
| 18 |
I8-94123 043-0 |
|
NUT; PULLEY,GEN |
1 |
|
|
|
02 .280 For assy 8982258130 |
| 25 |
I8-98232 107-0 |
|
BUSHING; INSULATION TERMINAL |
1 |
|
|
|
For assy 8982258130 |
| 2 |
I8-97378 924-0 |
|
ROTOR; GEN |
1 |
|
|
|
|
| 24 |
I8-97032 313-0 |
|
SCREW; RECTIFIER,GEN |
3 |
|
|
|
For assy 8982258130 |
| 2 |
I8-97378 924-0 |
|
ROTOR; GEN |
1 |
|
|
|
For assy 8982258130 |
| 54 |
I8-98232 109-0 |
|
BOLT; RECTIFIER,GEN |
3 |
|
|
|
For assy 8982258130 |
| 24 |
I8-97032 313-0 |
|
SCREW; RECTIFIER,GEN |
3 |
|
|
|
For assy 8982258130 |
| 15 |
I8-94406 982-0 |
|
RETAINER; ROTOR,GEN |
1 |
|
|
|
2307 For assy 8983852170 |
| 5 |
I8-97378 926-0 |
|
HOLDER; BRUSH,GEN |
1 |
|
|
|
For assy 8982258130 |
| 99 |
I5-19679 002-0 |
|
GASKET; VAC PUMP |
2 |
|
|
|
(A) ID=18 OD=24 For assy 8972458502 |
| 36 |
I8-97142 562-0 |
|
SCREW; FRT COVER |
4 |
|
|
|
For assy 8982258130 |
| 54 |
I8-98232 109-0 |
|
BOLT; RECTIFIER,GEN |
3 |
|
|
|
For assy 8982258130 |
| 5 |
I8-97378 926-0 |
|
HOLDER; BRUSH,GEN |
1 |
|
|
|
For assy 8982258130 |
| 17 |
I8-98232 102-0 |
|
COVER ASM; FRT,GEN |
1 |
|
|
|
For assy 8982258130 |
| 15 |
I8-94406 982-0 |
|
RETAINER; ROTOR,GEN |
1 |
|
|
|
02 .307 For assy 8982258130 |
| 39 |
I8-98232 104-0 |
|
COVER; END,RR COVER,GEN |
1 |
|
|
|
For assy 8982258120 |
| 11 |
I8-98232 110-0 |
|
COVER; RR,GEN |
1 |
|
|
|
For assy 8982258130 |
| 36 |
I8-97142 562-0 |
|
SCREW; FRT COVER |
4 |
|
|
|
For assy 8983852170 |
| 36 |
I8-97142 562-0 |
|
SCREW; FRT COVER |
4 |
|
|
|
For assy 8982258130 |
| 24 |
I8-97032 313-0 |
|
SCREW; RECTIFIER,GEN |
3 |
|
|
|
For assy 8982258120 |
| 15 |
I8-94406 982-0 |
|
RETAINER; ROTOR,GEN |
1 |
|
|
|
02 .307 For assy 8982258130 |
| 5 |
I8-97378 926-0 |
|
HOLDER; BRUSH,GEN |
1 |
|
|
|
For assy 8982258130 |
| 3 |
I8-98228 965-0 |
|
BEARING; ROTOR,GEN |
1 |
|
|
|
(A) For assy 8982258130 |
| 2 |
I8-97378 924-0 |
|
ROTOR; GEN |
1 |
|
|
|
For assy 8982258120 |
| 17 |
I8-98232 102-0 |
|
COVER ASM; FRT,GEN |
1 |
|
|
|
For assy 8982258120 |
| 54 |
I8-98232 109-0 |
|
BOLT; RECTIFIER,GEN |
3 |
|
|
|
For assy 8982258130 |
| 25 |
I8-98232 107-0 |
|
BUSHING; INSULATION TERMINAL |
1 |
|
|
|
For assy 8982258130 |
| 39 |
I8-98232 104-0 |
|
COVER; END,RR COVER,GEN |
1 |
|
|
|
For assy 8982258130 |
| 24 |
I8-97032 313-0 |
|
SCREW; RECTIFIER,GEN |
3 |
|
|
|
For assy 8982258130 |
| 5 |
I8-97378 926-0 |
|
HOLDER; BRUSH,GEN |
1 |
|
|
|
For assy 8982258120 |
| 19 |
I8-98232 101-0 |
|
PULLEY; GEN |
1 |
|
|
|
For assy 8982258130 |
| 3 |
I8-98228 965-0 |
|
BEARING; ROTOR,GEN |
1 |
|
|
|
(A) For assy 8982258130 |
| 25 |
I8-98232 107-0 |
|
BUSHING; INSULATION TERMINAL |
1 |
|
|
|
For assy 8982258120 |
| 36 |
I8-97142 562-0 |
|
SCREW; FRT COVER |
4 |
|
|
|
For assy 8982258120 |
| 39 |
I8-98232 104-0 |
|
COVER; END,RR COVER,GEN |
1 |
|
|
|
For assy 8982258130 |
| 21 |
I8-97319 752-0 |
|
BOLT; THROUGH,GEN |
4 |
|
|
|
For assy 8982258130 |
| 24 |
I8-97032 313-0 |
|
SCREW; RECTIFIER,GEN |
3 |
|
|
|
For assy 8983852170 |
| 3 |
I8-98228 965-0 |
|
BEARING; ROTOR,GEN |
1 |
|
|
|
(A) For assy 8982258130 |
| 39 |
I8-98232 104-0 |
|
COVER; END,RR COVER,GEN |
1 |
|
|
|
For assy 8982258130 |
| 21 |
I8-97319 752-0 |
|
BOLT; THROUGH,GEN |
4 |
|
|
|
For assy 8983852170 |
| 17 |
I8-98232 102-0 |
|
COVER ASM; FRT,GEN |
1 |
|
|
|
For assy 8982258130 |
| 19 |
I8-98232 101-0 |
|
PULLEY; GEN |
1 |
|
|
|
For assy 8982258120 |
| 25 |
I8-98232 107-0 |
|
BUSHING; INSULATION TERMINAL |
1 |
|
|
|
For assy 8982258130 |
| 54 |
I8-98232 109-0 |
|
BOLT; RECTIFIER,GEN |
3 |
|
|
|
For assy 8983852170 |
| 18 |
I8-94123 043-0 |
|
NUT; PULLEY,GEN |
1 |
|
|
|
02 .280 For assy 8982258130 |
| 54 |
I8-98232 109-0 |
|
BOLT; RECTIFIER,GEN |
3 |
|
|
|
For assy 8982258120 |
| 18 |
I8-94123 043-0 |
|
NUT; PULLEY,GEN |
1 |
|
|
|
02 .280 For assy 8982258120 |
| 21 |
I8-97319 752-0 |
|
BOLT; THROUGH,GEN |
4 |
|
|
|
For assy 8982258130 |
| 15 |
I8-94406 982-0 |
|
RETAINER; ROTOR,GEN |
1 |
|
|
|
2307 For assy 8982258130 |
| 18 |
I8-94123 043-0 |
|
NUT; PULLEY,GEN |
1 |
|
|
|
02 .280 For assy 8982258130 |
| 21 |
I8-97319 752-0 |
|
BOLT; THROUGH,GEN |
4 |
|
|
|
For assy 8982258120 |
| 11 |
I8-98232 110-0 |
|
COVER; RR,GEN |
1 |
|
|
|
For assy 8982258130 |
| 2 |
I8-97378 924-0 |
|
ROTOR; GEN |
1 |
|
|
|
|
| 19 |
I8-98232 101-0 |
|
PULLEY; GEN |
1 |
|
|
|
For assy 8982258130 |
| 36 |
I8-97142 562-0 |
|
SCREW; FRT COVER |
4 |
|
|
|
For assy 8982258130 |
| 3 |
I8-98228 965-0 |
|
BEARING; ROTOR,GEN |
1 |
|
|
|
(A) For assy 8982258120 |
| 3 |
I8-98228 965-0 |
|
BEARING; ROTOR,GEN |
1 |
|
|
|
(A) For assy 8983852170 |
| 21 |
I8-97319 752-0 |
|
BOLT; THROUGH,GEN |
4 |
|
|
|
For assy 8982258130 |
