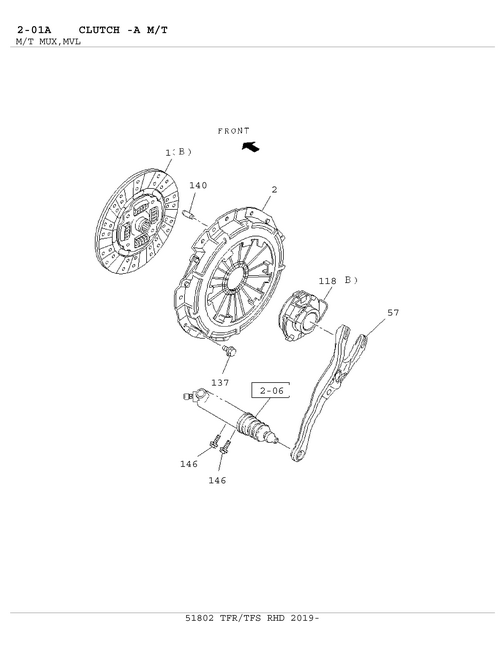

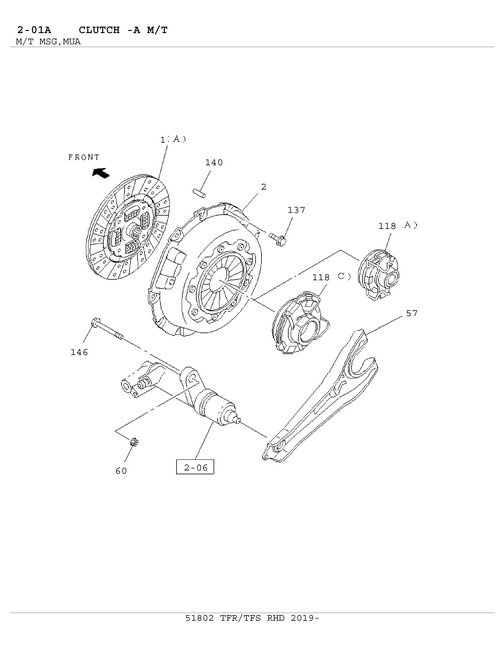

| 1 |
I8-97500 685-0 |
|
DISC; CLUTCH |
1 |
1810- |
|
F |
(A) |
| 57 |
I8-97365 654-0 |
|
FORK; SHIFT,CLU |
1 |
1809-1809 |
|
B |
|
| 118 |
I8-98096 168-0 |
|
BEARING; CLU RELEASE |
1 |
1810- |
|
F |
(C) NSK ID=44.1 OD=78 |
| 146 |
I0-28051 290-0 |
|
BOLT; SLAVE CYL TO TRANS CASE |
2 |
1810- |
|
AB F |
M12X9 0 FLANGE |
| 137 |
I0-28050 816-0 |
|
BOLT; CLU COVER |
6 |
1810- |
|
AB F |
02 .343 M8X16 FLANGE |
| 140 |
I8-97945 592-0 |
|
PIN; STRAIGHT |
3 |
1809- |
|
D |
4JJ1-TCX ENG(LS0) EURO5 SPECIFICATION(NT5) OD=6 L=27 |
| 140 |
I8-97945 592-0 |
|
PIN; STRAIGHT |
4 |
1809- |
|
D |
4JJ1-TCX ENG(LS0) EURO4 SPECIFICATION(NT4) OD=6 L=27 |
| 57 |
I8-97365 654-0 |
|
FORK; SHIFT,CLU |
1 |
1810- |
|
F |
EXC. CONGO EQUIPMENT(CDF) |
| 2 |
I8-97947 516-0 |
|
PLATE ASM; PRESSURE,CLU |
1 |
1810- |
|
F |
|
| 140 |
I8-97945 592-0 |
|
PIN; STRAIGHT |
4 |
1809- |
|
C E |
OD=6 L=27 |
| 57 |
I6-97365 654-0 |
|
FORK; SHIFT,CLU |
1 |
1810- |
|
F |
(IADG) EXC. CONGO EQUIPMENT(CDF) |
| 140 |
I8-97945 592-0 |
|
PIN; STRAIGHT |
4 |
1809- |
|
D |
RZ4E-TCX HI-POWER ENG(LNC) G(RDZ) OD=6 L=27 |
| 137 |
I0-28050 816-0 |
|
BOLT; CLU COVER |
6 |
1809-1809 |
|
AB |
02.343 M8X16 FLANGE |
| 137 |
I0-28050 816-0 |
|
BOLT; CLU COVER |
9 |
1809- |
|
D |
4JJ1-TCX ENG(LS0) EURO5 SPECIFICATION(NT5) 02 .343 M8X16 FLANGE |
| 57 |
I8-97365 654-0 |
|
FORK; SHIFT,CLU |
1 |
1810- |
|
B |
|
| 137 |
I0-28050 816-0 |
|
BOLT; CLU COVER |
8 |
1809- |
|
D |
RZ4E-TCX HI-POWER ENG(LNC) G(RDZ) 02 .343 M8X16 FLANGE |
| 60 |
I0-91180 112-0 |
|
NUT; SLAVE CYL |
1 |
1809-1809 |
|
AB |
02 . 042 M12 FLANGE |
| 60 |
I0-91180 112-0 |
|
NUT; SLAVE CYL |
1 |
1810- |
|
AB F |
02 . 042 M12 FLANGE |
| 137 |
I0-28050 816-0 |
|
BOLT; CLU COVER |
8 |
1809- |
|
D |
4JJ1-TCX ENG(LS0) EMISSION SYSTEM R15-04(K75 CIFICATION(NT2),EURO4 SPEC T4 ) 02.343 M8X16 FLANGE |
| 137 |
I0-28050 816-0 |
|
BOLT; CLU COVER |
8 |
1809- |
|
C E |
02 .343 M8X16 FLANGE |
| 118 |
I8-98096 168-A |
|
BEARING; CLU RELEASE |
1 |
1810- |
|
F |
(C) NSK ID=44.1 OD=78 |
| 146 |
I0-28051 290-0 |
|
BOLT; SLAVE CYL TO TRANS CASE |
2 |
1809-1809 |
|
AB |
M12X9 0 FLANGE |
| 140 |
I8-97945 592-0 |
|
PIN; STRAIGHT |
2 |
1810- |
|
F |
OD=6 L=27 |
