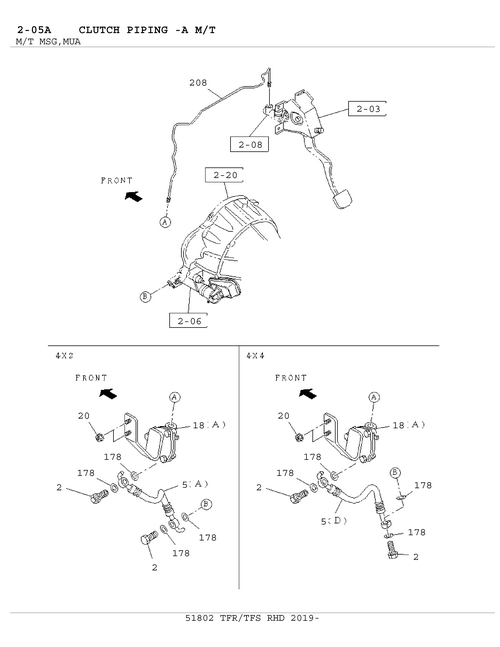

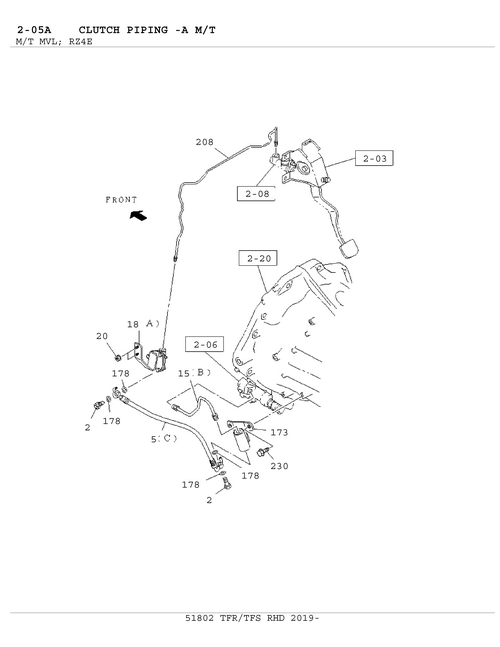

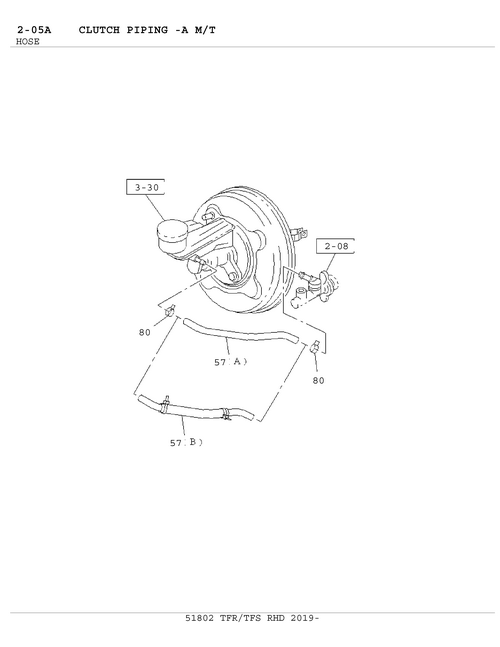

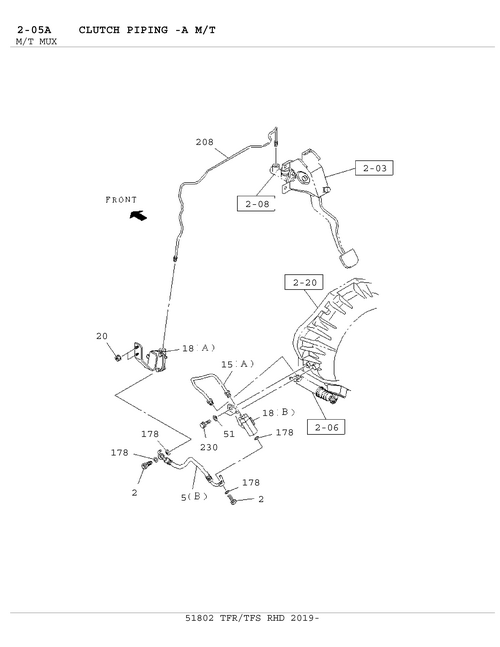

2-05 | CLUTCH PIPING -A M/T
DMAX
D-MAX 2019
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 51 | I0-91614 806-0 | WASHER; LK | 2 | 1809- | C | 00.206 ID=6.4 OD=2 2 | ||
| 2 | I8-97359 818-0 | BOLT; EYE,SLAVE CYL | 2 | 1810- | ABCDEF | 04.681 M10X22 EYE-BOLT | ||
| 18 | I8-98481 175-0 | DAMPER ASM; CLU OIL | 1 | 1903- | AB F | (A) | ||
| 208 | I8-98357 209-0 | PIPE; OIL,M/CYL TO DAMPER CYL | 1 | 1809-1809 | ABCDE | |||
| 5 | I8-98221 241-0 | HOSE; FLEX,CLU PIPE | 1 | 1810- | F | 4X4(TFS***) (D) | ||
| 208 | I8-98357 209-0 | PIPE; OIL,M/CYL TO DAMPER CYL | 1 | 1810- | ABCDEF | |||
| 20 | I0-91180 106-0 | NUT; CLU OIL DAMPER | 2 | 1809-1809 | ABCDE | 01 . 062 M6 FLANGE | ||
| 2 | I8-97359 818-0 | BOLT; EYE,SLAVE CYL | 2 | 1809-1809 | ABCDE | 04.681 M10X22 EYE-BOLT | ||
| 230 | I0-28650 620-0 | BOLT; ACTUATOR | 2 | 1809- | C | 03.162 M6X2 0 FLANGE | ||
| 80 | I8-97947 824-0 | CLIP; HOSE | 2 | 1809-1809 | ABCDE | ID=12 WO/PVC COATING | ||
| 178 | I9-09571 410-0 | GASKET; FLEX HOSE TO M/CYL | 4 | 1809-1809 | ABCDE | 08.955 ID=10.2 OD=16.0 | ||
| 178 | I9-09571 410-0 | GASKET; FLEX HOSE TO M/CYL | 4 | 1810- | ABCDEF | 08.955 ID=10.2 OD=16.0 | ||
| 80 | I8-97947 824-0 | CLIP; HOSE | 2 | 1810- | ABCDEF | ID=12 WO/PVC COATING | ||
| 20 | I0-91180 106-0 | NUT; CLU OIL DAMPER | 2 | 1810- | ABCDEF | 01.062 M6 FLANGE | ||
| 230 | I0-28650 820-0 | BOLT; ACTUATOR | 2 | 1809- | DE | 01.531 M8X20 FLANGE |
