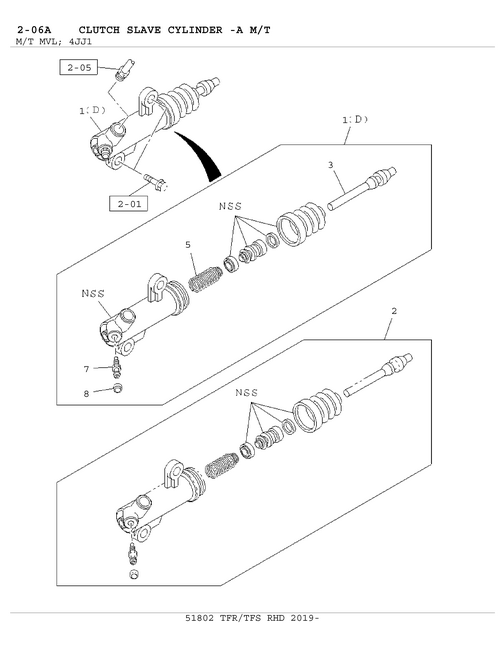

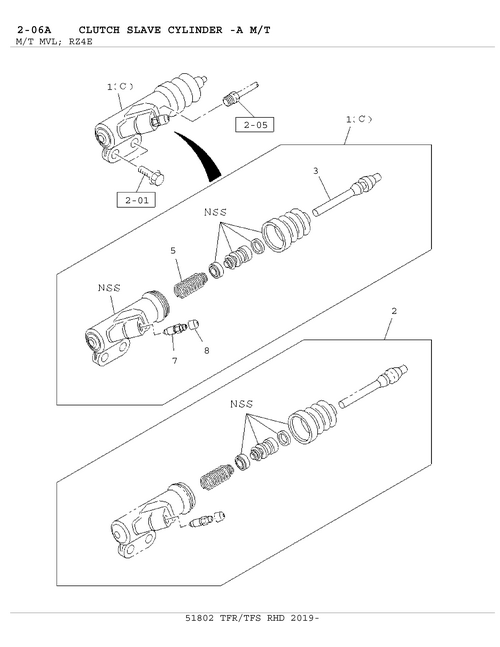

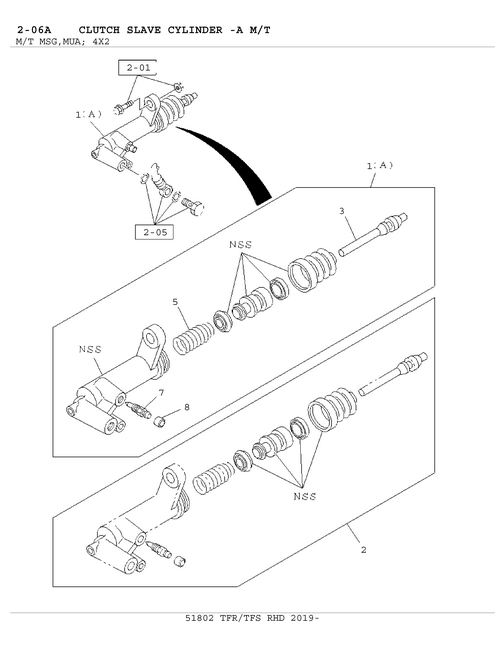

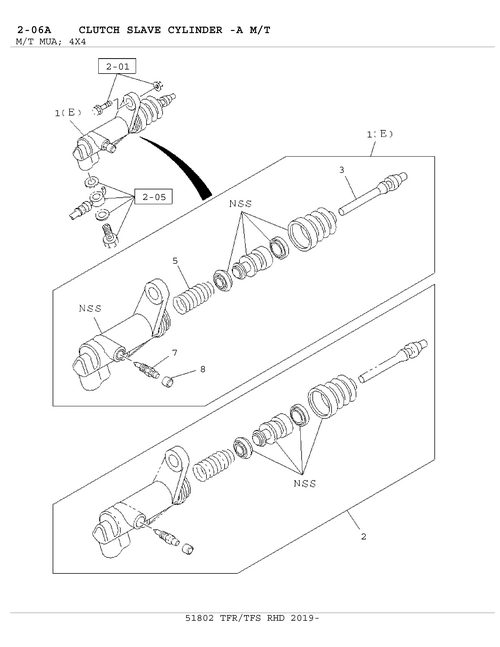

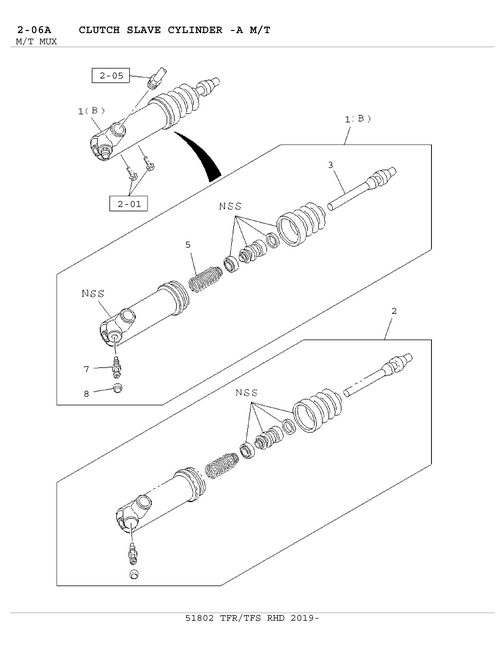

2-06 | CLUTCH SLAVE CYLINDER -A M/T
DMAX
D-MAX 2019
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 2 | I5-87832 048-0 | REPAIR KIT; CLU SLAVE CYL | 1 | 1810- | D | 4JJ1-TCX ENG(LS0) | ||
| 5 | I8-97942 801-0 | SPRING ASM; PISTON,SLAVE CYL | 1 | 1809-1809 | ABCDE | |||
| 8 | I8-97940 638-0 | CAP; BLEEDER,SLAVE CYL | 1 | 1809-1809 | ABCDE | OD=10 | ||
| 1 | I8-97946 625-1 | CYLINDER; SLAVE,CLU | 1 | 1810- | F | 4X4(TFS***) (E) | ||
| 8 | I8-97940 638-0 | CAP; BLEEDER,SLAVE CYL | 1 | 1810- | ABCDEF | OD=10 | ||
| 2 | I5-87832 048-0 | REPAIR KIT; CLU SLAVE CYL | 1 | 1810- | ABC F | |||
| 2 | I5-87832 048-0 | REPAIR KIT; CLU SLAVE CYL | 1 | 1809-1809 | D | 4JJ1-TCX ENG(LS0) | ||
| 2 | I5-87832 048-0 | REPAIR KIT; CLU SLAVE CYL | 1 | 1809-1809 | ABC | |||
| 7 | I8-98020 477-0 | SCREW; BLEEDER,SLAVE CYL | 1 | 1810- | ABCDEF | M8X10 | ||
| 5 | I8-97942 801-0 | SPRING ASM; PISTON,SLAVE CYL | 1 | 1810- | ABCDEF | |||
| 3 | I8-97945 722-0 | ROD; PUSH,SLAVE CYL | 1 | 1810- | AB F | |||
| 7 | I8-98020 477-0 | SCREW; BLEEDER,SLAVE CYL | 1 | 1809-1809 | ABCDE | M8X10 | ||
| 3 | I8-97945 722-0 | ROD; PUSH,SLAVE CYL | 1 | 1809-1809 | AB |
