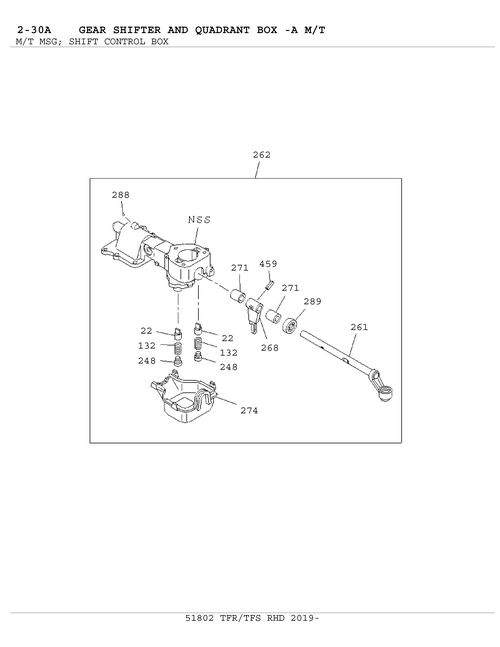

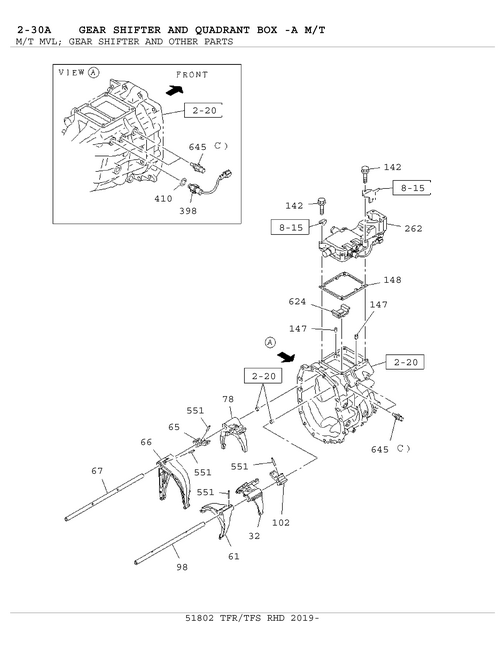

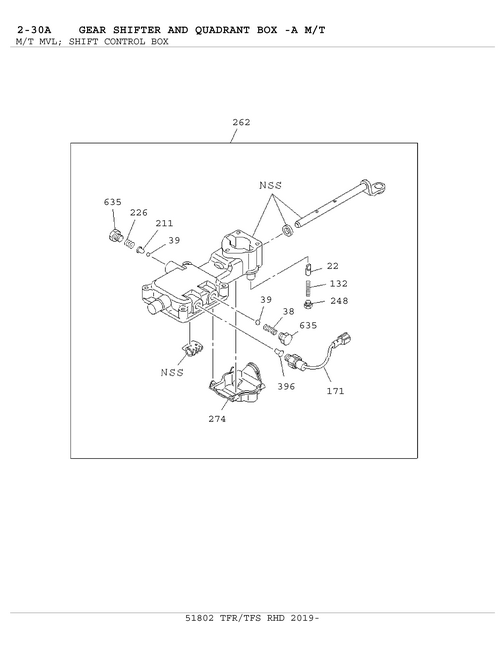

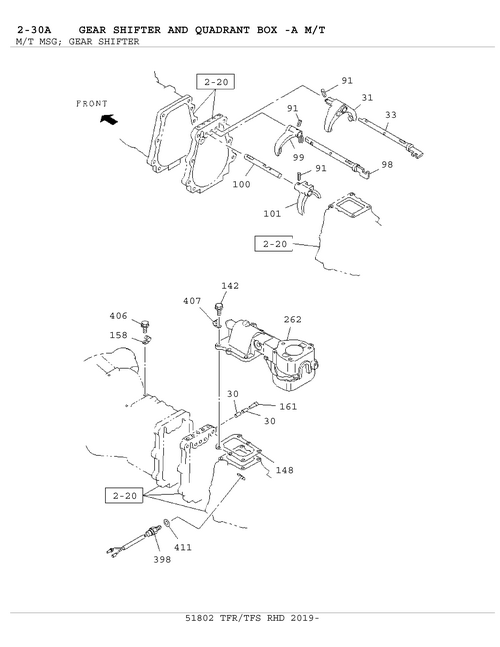

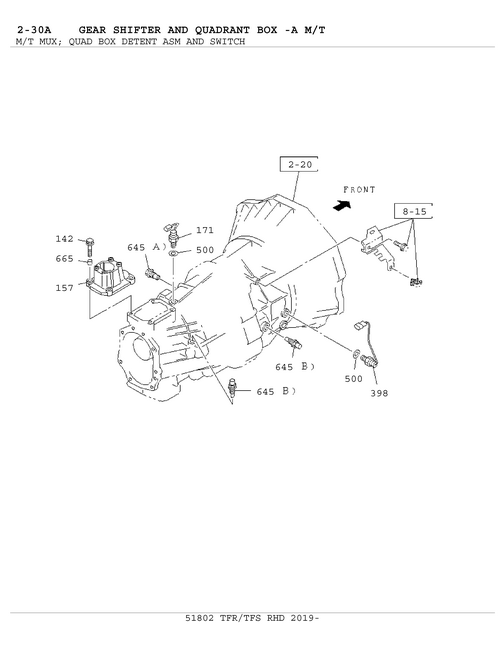

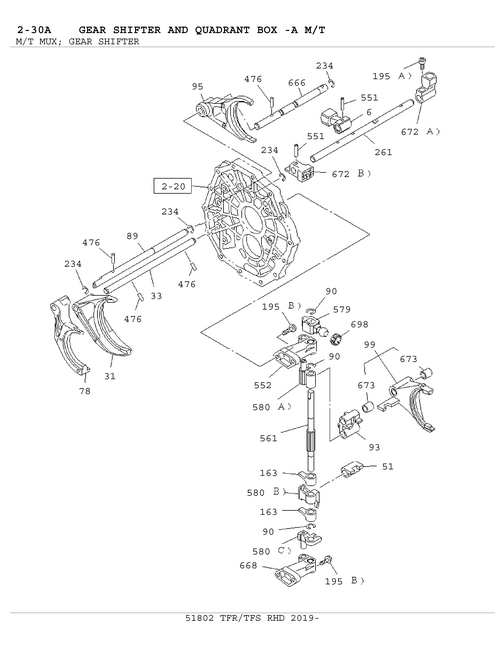

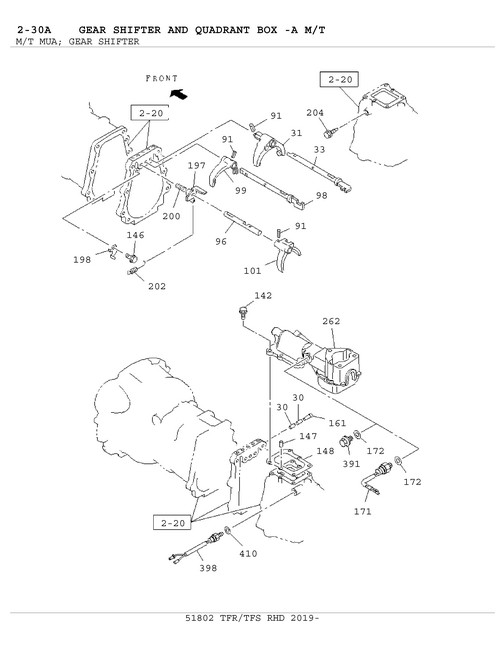

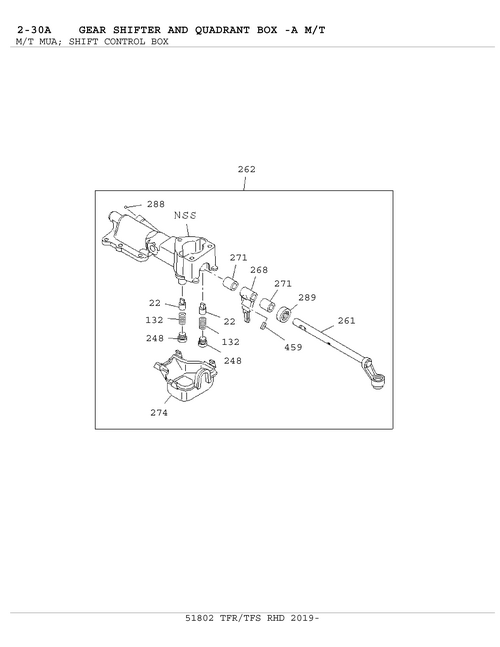

2-30 | GEAR SHIFTER AND QUADRANT BOX -A M/T
DMAX
D-MAX 2019
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 101 | I8-94448 755-2 | ARM; SHIFT,REV & 5TH | 1 | 1810- | B F | EXC. IDENTIFICATION LABEL | ||
| 197 | I8-94448 753-0 | INHIBITOR; REV SHIFT | 1 | 1809-1809 | B | |||
| 96 | I8-94440 079-1 | ROD; SHIFT,5TH | 1 | 1809-1809 | B | EXC. IDENTIFICATION LABEL | ||
| 410 | I9-09571 414-0 | GASKET; REV SW | 1 | 1809-1809 | B DE | 08 . 955 ID=14.2 OD=2 0 | ||
| 248 | I8-98210 983-0 | RETAINER; CONT BOX | 2 | 1810- | AB DEF | |||
| 147 | I9-08150 612-0 | PIN; KNOCK | 2 | 1810- | B DEF | 04 . 510 OD=6 L=12 | ||
| 200 | I8-94448 807-0 | SPRING; REV INHIBITOR,COMP | 1 | 1809-1809 | B | |||
| 30 | I5-33534 002-1 | PIN; INTER LK | 2 | 1809-1809 | AB | OD=5.5 L=10 | ||
| 407 | I8-97367 984-1 | CLIP; SWITCH HARNESS | 1 | 1809- | A | 03 .671 ID=12 VINYL CHLORIDE | ||
| 146 | I0-28650 820-0 | BOLT; REV INHIBITOR | 1 | 1810- | B F | IDENTIFICATION LABEL FOR KD 01 . 531 M8X2 0 FLANGE | ||
| 204 | I8-98035 673-0 | STOPPER; REV INHIBITOR | 1 | 1809-1809 | B | |||
| 459 | I8-97184 905-0 | PIN; SPR,ROD TO ARM | 1 | 1809-1809 | AB | OD=5 | ||
| 500 | I9-09571 414-0 | GASKET; SW | 2 | 1809- | C | 08 . 955 ID=14.2 OD=20 | ||
| 22 | I8-97181 326-0 | CAP; RETURN SPR,SHIFT BLOCK | 2 | 1810- | AB DEF | |||
| 202 | I8-97017 500-0 | SPRING; REV INHIBITOR,EXT | 1 | 1810- | B F | |||
| 268 | I8-97184 895-0 | LEVER; CONT,INTERNAL | 1 | 1810- | B F | |||
| 31 | I8-94421 912-2 | ARM; SHIFT,LOW & 2ND | 1 | 1810- | B F | |||
| 148 | I8-97083 599-0 | GASKET; QUAD BOX | 1 | 1810- | B F | |||
| 147 | I9-08150 612-0 | PIN; KNOCK | 2 | 1809-1809 | B DE | 04 . 510 OD=6 L=12 | ||
| 99 | I8-94421 911-2 | ARM; SHIFT,4TH & 3RD | 1 | 1810- | B F | |||
| 172 | I8-94462 114-0 | GASKET; NEUTRAL SW | 1 | 1810- | B F | 04 . 075 ID=14.2 | ||
| 172 | I8-94462 114-0 | GASKET; NEUTRAL SW | 1 | 1809-1809 | B | 04 . 075 ID=14.2 | ||
| 142 | I8-97365 376-0 | BOLT; QUAD BOX | 4 | 1809-1809 | AB | 04.356 M8X22 FLANGE | ||
| 101 | I8-94448 755-2 | ARM; SHIFT,REV & 5TH | 1 | 1809-1809 | B | EXC. IDENTIFICATION LABEL | ||
| 406 | I0-28050 816-0 | BOLT; HARNESS CLIP | 1 | 1809- | A | 02 .343 M8X16 FLANGE | ||
| 171 | I8-98103 743-0 | SWITCH; NEUTRAL | 1 | 1810- | F | |||
| 198 | I8-94448 199-0 | BRACKET; REV INHIBITOR | 1 | 1809-1809 | B | |||
| 22 | I8-97181 326-0 | CAP; RETURN SPR,SHIFT BLOCK | 2 | 1809-1809 | AB DE | |||
| 551 | I8-94171 541-0 | PIN; SPRING | 2 | 1809- | C | D=4.2 L=2 5 | ||
| 146 | I0-28650 820-0 | BOLT; REV INHIBITOR | 1 | 1809-1809 | B | IDENTIFICATION LABEL FOR K 01 . 531 M8X2 0 FLANGE | ||
| 476 | I8-94171 541-0 | PIN; SHIFT ROD | 4 | 1809- | C | 04 .303 D=4 . 2 L=2 5 | ||
| 198 | I8-94448 199-0 | BRACKET; REV INHIBITOR | 1 | 1810- | B F | |||
| 98 | I8-97019 060-3 | ROD; SHIFT,TOP & 3RD | 1 | 1809-1809 | B | |||
| 288 | I9-00097 517-0 | PLUG; AIR BREATHER | 1 | 1810- | AB F | |||
| 98 | I8-97019 060-3 | ROD; SHIFT,TOP & 3RD | 1 | 1810- | B F | |||
| 410 | I9-09571 414-0 | GASKET; REV SW | 1 | 1810- | B DEF | 08 . 955 ID=14.2 OD=20 | ||
| 90 | I8-94460 357-0 | RING; SNAP,SHIFT ROD | 3 | 1809- | C | ID=12 | ||
| 202 | I8-97017 500-0 | SPRING; REV INHIBITOR,EXT | 1 | 1809-1809 | B | |||
| 91 | I8-94171 541-0 | PIN; SPR,SHIFT ARM | 3 | 1810- | AB F | 04.303 D=4.2 L=2 5 | ||
| 398 | I8-98103 750-0 | SWITCH; REV LAMP | 1 | 1810- | F | EXC. CONGO EQUIPMENT(CDF) | ||
| 204 | I8-98035 673-0 | STOPPER; REV INHIBITOR | 1 | 1810- | B F | |||
| 274 | I8-97181 324-1 | COVER; SHAFT,QUAD BOX | 1 | 1809-1809 | AB | |||
| 459 | I8-97184 905-0 | PIN; SPR,ROD TO ARM | 1 | 1810- | AB F | OD=5 | ||
| 33 | I8-97019 061-2 | ROD; SHIFT,LOW & 2ND | 1 | 1810- | B F | |||
| 288 | I9-00097 517-0 | PLUG; AIR BREATHER | 1 | 1809-1809 | AB | |||
| 289 | I8-98017 744-0 | SEAL; OIL,CONT SHAFT,QUAD BOX | 1 | 1809-1809 | AB | |||
| 398 | I8-98103 750-0 | SWITCH; REV LAMP | 1 | 1810- | AB | |||
| 161 | I8-94239 543-1 | PLUG; INTER LK HOLE | 1 | 1809-1809 | AB | |||
| 261 | I8-97257 909-0 | ROD; GEAR CONT | 1 | 1809-1809 | B | |||
| 146 | I0-28050 820-0 | BOLT; REV INHIBITOR | 1 | 1810- | B F | EXC. IDENTIFICATION LABEL 04 .338 M8X2 0 FLANGE | ||
| 268 | I8-97184 895-0 | LEVER; CONT,INTERNAL | 1 | 1809-1809 | B | |||
| 30 | I5-33534 002-1 | PIN; INTER LK | 2 | 1810- | AB F | OD=5.5 L=10 | ||
| 261 | I8-97257 909-0 | ROD; GEAR CONT | 1 | 1810- | B F | |||
| 132 | I8-97181 395-0 | SPRING; SELECT STOP | 2 | 1809-1809 | AB | |||
| 31 | I8-94421 912-2 | ARM; SHIFT,LOW & 2ND | 1 | 1809-1809 | B | |||
| 197 | I8-94448 753-0 | INHIBITOR; REV SHIFT | 1 | 1810- | B F | |||
| 274 | I8-97181 324-1 | COVER; SHAFT,QUAD BOX | 1 | 1810- | AB F | |||
| 132 | I8-97181 395-0 | SPRING; SELECT STOP | 2 | 1810- | AB F | |||
| 99 | I8-94421 911-2 | ARM; SHIFT,4TH & 3RD | 1 | 1809-1809 | B | |||
| 271 | I8-98017 908-0 | BUSHING; QUAD BOX | 2 | 1809-1809 | AB | ID=14 L=12 | ||
| 200 | I8-94448 807-0 | SPRING; REV INHIBITOR,COMP | 1 | 1810- | B F | |||
| 234 | I8-94460 357-0 | RING; SNAP | 4 | 1809- | C | 04 .307 ID=12 | ||
| 161 | I8-94239 543-1 | PLUG; INTER LK HOLE | 1 | 1810- | AB F | |||
| 398 | I8-98103 750-0 | SWITCH; REV LAMP | 1 | 1809-1809 | AB | |||
| 148 | I8-97083 599-0 | GASKET; QUAD BOX | 1 | 1809-1809 | B | |||
| 271 | I8-98017 908-0 | BUSHING; QUAD BOX | 2 | 1810- | AB F | ID=14 L=12 | ||
| 142 | I8-97365 376-0 | BOLT; QUAD BOX | 4 | 1810- | AB F | 04.356 M8X22 FLANGE | ||
| 262 | I8-98219 761-0 | BOX ASM; SHIFT CONT | 1 | 1810- | B F | |||
| 142 | I0-28650 835-0 | BOLT; QUAD BOX | 4 | 1809- | C | 01.060 M8X3 5 FLANGE | ||
| 262 | I8-98219 761-0 | BOX ASM; SHIFT CONT | 1 | 1809-1809 | B | |||
| 146 | I0-28050 820-0 | BOLT; REV INHIBITOR | 1 | 1809-1809 | B | EXC. IDENTIFICATION LABEL 04 .338 M8X2 0 FLANGE | ||
| 158 | I8-97367 984-1 | CLIP; HARNESS | 2 | 1809- | A | 03 .671 ID=12 VINYL CHLORIDE | ||
| 96 | I8-94440 079-1 | ROD; SHIFT,5TH | 1 | 1810- | B F | EXC. IDENTIFICATION LABEL | ||
| 411 | I8-94462 114-0 | GASKET; REV LAMP SW | 1 | 1809- | A | 04 . 075 ID=14.2 | ||
| 91 | I8-94171 541-0 | PIN; SPR,SHIFT ARM | 3 | 1809-1809 | AB | 04.303 D=4.2 L=2 5 | ||
| 248 | I8-98210 983-0 | RETAINER; CONT BOX | 2 | 1809-1809 | AB DE | |||
| 289 | I8-98017 744-0 | SEAL; OIL,CONT SHAFT,QUAD BOX | 1 | 1810- | AB F | |||
| 33 | I8-97019 061-2 | ROD; SHIFT,LOW & 2ND | 1 | 1809-1809 | B |
