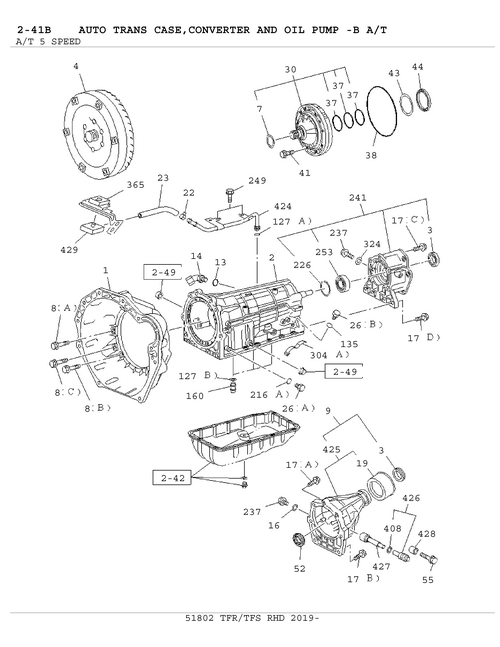

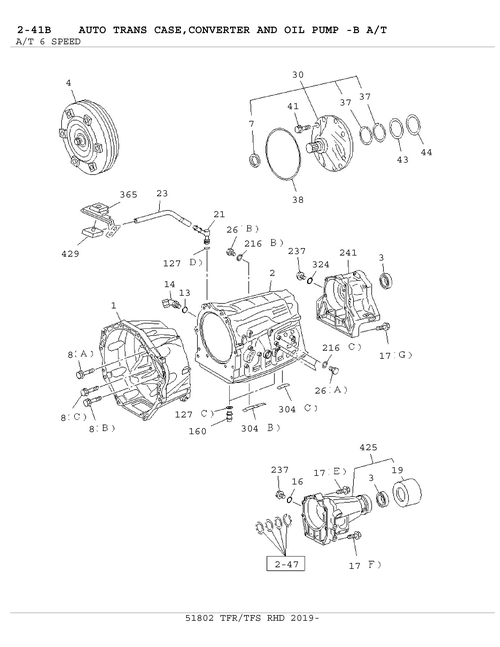

2-41 | AUTO TRANS CASE,CONVERTER AND OIL PUMP -B A/T
DMAX
D-MAX 2019
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 37 | I8-98189 492-0 | RING; SEAL,OIL PUMP,A/T | 2 | 1809- | B | ID=63 | ||
| 127 | I8-98189 488-0 | GASKET; CASE TO COVER | 2 | 1809- | B | (C) ID=10 | ||
| 429 | I8-98161 881-0 | CLIP; BREATHER HOSE | 1 | 1809- | AB | |||
| 424 | I8-98189 475-0 | TUBE; BREATHER | 1 | 1809- | A | |||
| 324 | I8-98189 759-0 | GASKET; PLUG,REAR COVER | 1 | 1809- | AB | 4X4(TFS***) 04 .318 ID=15.4 | ||
| 304 | I8-98189 484-0 | SPRING; LEAF,A/T | 1 | 1809- | A | (A) | ||
| 17 | I8-94479 858-0 | BOLT; REAR COVER TO CASE | 1 | 1809- | A | 4X4(TFS***) 04 .472 (C) M8X45 | ||
| 365 | I8-98161 920-1 | BRACKET; BREATHER HOSE,A/T | 1 | 1809- | B | 4JJ1-TCX ENG(LS0) 04.047 | ||
| 22 | I8-97173 219-0 | CLIP; BREATHER HOSE,A/T | 1 | 1809- | A | 03.163 ID=11 | ||
| 14 | I8-98189 473-0 | UNION; OIL COOLER RETURN PIPE | 2 | 1809- | AB | |||
| 17 | I8-94479 935-0 | BOLT; REAR COVER TO CASE | 8 | 1809- | A | 4X4(TFS***) (D) M10X50 | ||
| 44 | I8-98189 496-0 | BEARING; THRUST,OIL PUMP,A/T | 1 | 1809- | A | |||
| 41 | I8-97141 759-0 | BOLT; OIL PUMP HSG,A/T | 10 | 1809- | A | M8X40 | ||
| 365 | I8-98161 920-1 | BRACKET; BREATHER HOSE,A/T | 1 | 1809- | A | 4047 | ||
| 2 | I8-98189 783-0 | CASE ASM; A/T | 1 | 1809- | A | 4X4(TFS***) | ||
| 8 | I8-90257 082-0 | BOLT; HSG TO CASE | 8 | 1809- | B | (A) M10X35 | ||
| 26 | I5-34119 002-0 | PLUG; TRANS CASE | 6 | 1809- | B | 04.103 (A) | ||
| 8 | I8-90257 082-0 | BOLT; HSG TO CASE | 6 | 1809- | A | (A) M10X35 | ||
| 241 | I8-98189 788-0 | ADAPTER; A/T | 1 | 1809- | A | 4X4(TFS***) | ||
| 43 | I8-98189 495-0 | RACE; THRUST BRG,OIL PUMP,A/T | 1 | 1809- | A | ID=74 | ||
| 127 | I8-98189 488-0 | GASKET; CASE TO COVER | 3 | 1809- | A | (B) ID=10 | ||
| 16 | I8-98189 759-0 | GASKET; EXT HSG | 1 | 1809- | AB | 4X2 (TFB***) ID=15.4 | ||
| 253 | I8-98189 789-0 | BEARING; BALL,COVER | 1 | 1809- | A | 4X4(TFS***) | ||
| 23 | I0-02857 300-0 | HOSE; BREATHER,A/T | 1 | 1809- | A | 04.104 L=220 SERVICED BY L=3000 | ||
| 160 | I8-98189 489-0 | GASKET; BRK DRUM,A/T | 3 | 1809- | A | |||
| 1 | I8-98189 468-0 | HOUSING; CONV,A/T | 1 | 1809- | A | |||
| 226 | I8-98189 790-0 | RING; SNAP | 1 | 1809- | A | 4X4(TFS***) ID=67 | ||
| 13 | I8-94479 724-0 | GASKET; OIL COOLER PIPE | 2 | 1809- | AB | 04 .265 ID=11.7 | ||
| 216 | I8-94479 724-0 | GASKET; SOLENOID OUTER | 1 | 1809- | B | (B) ID=11.7 | ||
| 37 | I8-98189 492-0 | RING; SEAL,OIL PUMP,A/T | 3 | 1809- | A | ID=63 | ||
| 38 | I8-98189 494-0 | GASKET; OIL PUMP,A/T | 1 | 1809- | A | ID=218 | ||
| 30 | I8-98189 491-0 | PUMP ASM; OIL,A/T | 1 | 1809- | A | |||
| 26 | I8-98189 490-0 | PLUG; TRANS CASE | 1 | 1809- | AB | (B) M14X12 | ||
| 127 | I8-98189 476-0 | GASKET; CASE TO COVER | 1 | 1809- | A | (A) ID=5 | ||
| 4 | I8-98189 761-0 | CONVERTER ASM; TORQUE,A/T | 1 | 1810- | A | 4JK1-TCX ENG(LR0) | ||
| 7 | I8-98189 493-0 | SEAL; OIL,LIP,A/T | 1 | 1809- | A | |||
| 8 | I8-98189 486-0 | BOLT; HSG TO CASE | 2 | 1809- | AB | (B) M10X35 | ||
| 8 | I8-98189 487-0 | BOLT; HSG TO CASE | 2 | 1809- | AB | (C) M12X38 | ||
| 249 | I8-94252 680-0 | BOLT; BRKT | 2 | 1809- | A | 04 . 050 M6X10 | ||
| 135 | I8-94479 724-0 | GASKET; PLUG,A/T CASE | 1 | 1809- | A | 04 .265 ID=11.7 | ||
| 216 | I5-34119 001-0 | GASKET; SOLENOID OUTER | 5 | 1809- | A | 04.103 (A) ID=6 | ||
| 26 | I5-34119 002-0 | PLUG; TRANS CASE | 5 | 1809- | A | 04.103 (A) | ||
| 17 | I8-94479 935-0 | BOLT; REAR COVER TO CASE | 10 | 1809- | B | 4X4(TFS***) (G) M10X50 | ||
| 237 | I8-98189 760-0 | PLUG; COVER | 1 | 1809- | AB | |||
| 3 | I8-98189 757-0 | SEAL; OIL,RR COVER,A/T | 1 | 1809- | A | |||
| 216 | I5-34119 001-0 | GASKET; SOLENOID OUTER | 6 | 1809- | B | 04.103 (C) ID=6 |
