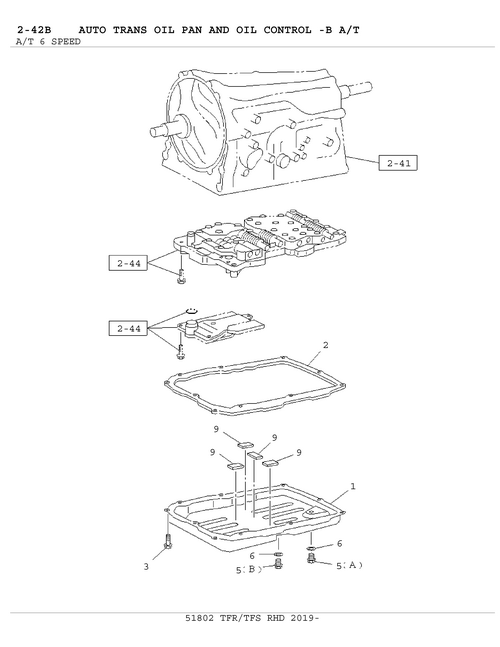

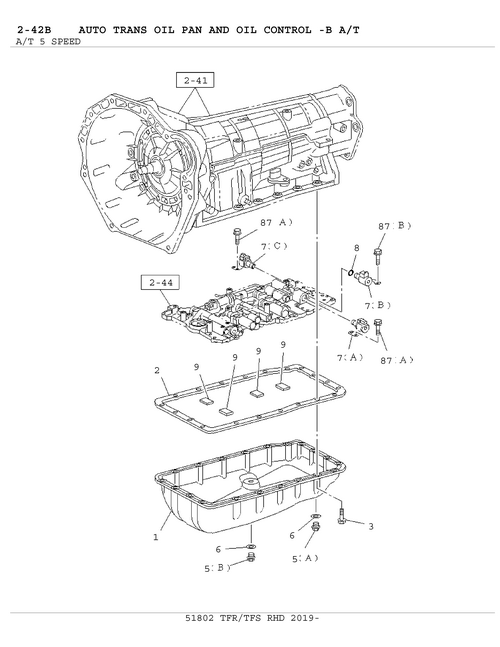

2-42 | AUTO TRANS OIL PAN AND OIL CONTROL -B A/T
DMAX
D-MAX 2019
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 6 | I5-34132 002-0 | GASKET; OIL PAN TO PLUG | 2 | 1809- | AB | ID=12 | ||
| 87 | I8-94405 335-0 | BOLT; SOLENOID | 3 | 1809- | A | 04 . 197 (A) M5X12 | ||
| 7 | I8-98189 502-0 | SOLENOID; DOWN SHIFT,A/T | 1 | 1809- | A | (B) | ||
| 87 | I8-94479 927-0 | BOLT; SOLENOID | 1 | 1809- | A | (B) M6X12 | ||
| 3 | I8-98189 751-0 | BOLT; OIL PAN TO CASE | 20 | 1809- | A | M6X15 | ||
| 8 | I8-94480 101-0 | GASKET; DOWN SHIFT SOLENOID,A/T | 1 | 1809- | A | ID=6.1 | ||
| 7 | I8-98189 503-0 | SOLENOID; DOWN SHIFT,A/T | 1 | 1809- | A | (C) | ||
| 2 | I8-98189 738-0 | GASKET; OIL PAN,A/T | 1 | 1809- | A | |||
| 5 | I8-98189 752-0 | PLUG; OIL PAN | 1 | 1809- | AB | (B) M10X9 | ||
| 9 | I5-34138 004-0 | MAGNET; OIL PAN | 4 | 1809- | AB | |||
| 5 | I8-97367 573-0 | PLUG; OIL PAN | 1 | 1809- | AB | (A) M10X9 | ||
| 1 | I8-98209 424-0 | PAN ASM; OIL,A/T | 1 | 1809- | A | |||
| 7 | I8-98189 501-0 | SOLENOID; DOWN SHIFT,A/T | 1 | 1809- | A | (A) |
