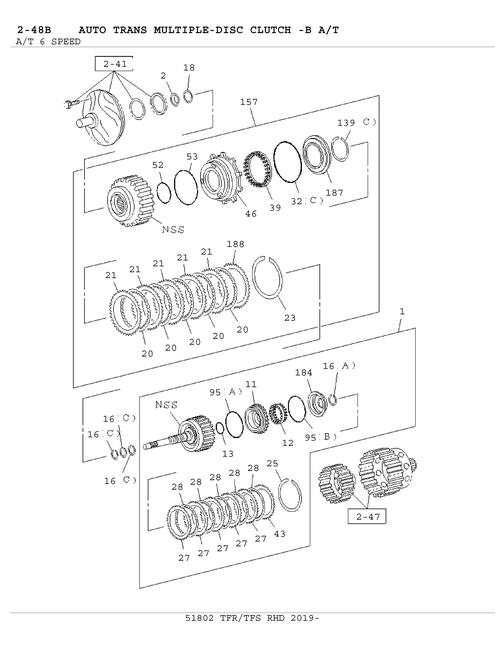

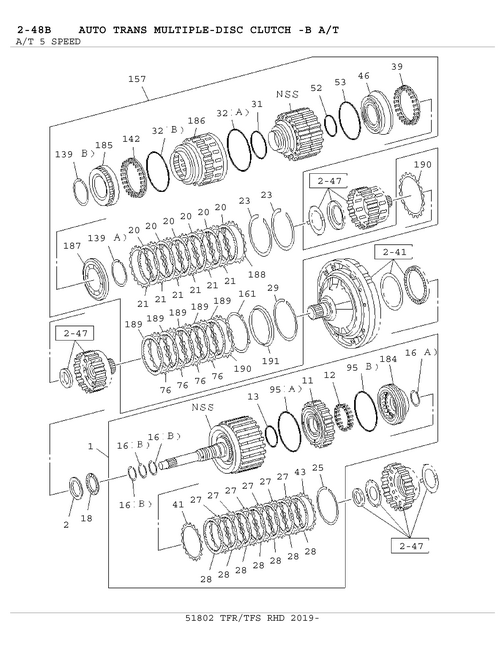

2-48 | AUTO TRANS MULTIPLE-DISC CLUTCH -B A/T
DMAX
D-MAX 2019
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 95 | I8-98189 517-0 | GASKET; CLU HUB | 1 | 1809- | AB | (B) ID=107 | ||
| 20 | I8-98189 559-0 | DISC; CLU,A/T | 6 | 1809- | A | 4JJ1-TCX ENG(LS0) OD=162 | ||
| 43 | I8-98189 526-0 | FLANGE; FWD CLU | AR | 1809- | A | T=3 . 5 | ||
| 27 | I8-98189 520-0 | DISC ASM; CLU & FACING,A/T | 6 | 1809- | A | 4JJ1-TCX ENG(LS0) T=1 . 8 | ||
| 43 | I8-98189 528-0 | FLANGE; FWD CLU | AR | 1809- | A | T=3 . 7 | ||
| 46 | I8-98189 766-0 | PISTON; DIRECT CLU,A/T | 1 | 1810- | A | 4JK1-TCX ENG(LR0) | ||
| 142 | I8-98189 587-0 | SPRING; CLU | 1 | 1809- | A | |||
| 188 | I8-98189 566-0 | FLANGE; REVERSE CLUTCH | AR | 1809- | A | T=3 . 6 | ||
| 21 | I8-98189 558-0 | DISC ASM; CLU & FACING,A/T | 5 | 1810- | A | 4JK1-TCX ENG(LR0) ID=14 9 | ||
| 187 | I8-98189 556-0 | BALANCER; CLUTCH NO 2 | 1 | 1809- | A | |||
| 188 | I8-98189 562-0 | FLANGE; REVERSE CLUTCH | AR | 1809- | A | T=3 .2 | ||
| 1 | I8-98189 762-0 | HUB ASM; CLU,INPUT SHAFT,A/T | 1 | 1810- | A | 4JK1-TCX ENG(LR0) | ||
| 11 | I8-98189 764-0 | PISTON ASM; CLU,A/T | 1 | 1810- | A | 4JK1-TCX ENG(LR0) | ||
| 12 | I8-98189 515-0 | SPRING; CLU RETURN,A/T | 1 | 1809- | AB | |||
| 20 | I8-98189 559-0 | DISC; CLU,A/T | 5 | 1810- | A | 4JK1-TCX ENG(LR0) OD=162 | ||
| 29 | I8-98189 597-0 | RING; SNAP,CLU,A/T | 1 | 1809- | A | ID=171 | ||
| 190 | I8-98189 563-0 | FLANGE; CLUTCH | AR | 1809- | A | T=3 .3 | ||
| 139 | I8-98189 557-0 | RING; SNAP | 1 | 1809- | A | (A) ID=64 | ||
| 190 | I8-98189 592-0 | FLANGE; CLUTCH | AR | 1809- | A | T=2 . 8 | ||
| 190 | I8-98189 594-0 | FLANGE; CLUTCH | AR | 1809- | A | T=2 . 9 | ||
| 190 | I8-98189 564-0 | FLANGE; CLUTCH | AR | 1809- | A | T=3 .4 | ||
| 190 | I8-98189 560-0 | FLANGE; CLUTCH | AR | 1809- | A | T=3 . 0 | ||
| 188 | I8-98189 565-0 | FLANGE; REVERSE CLUTCH | AR | 1809- | A | T=3 . 5 | ||
| 23 | I8-98189 576-0 | RING; RET,CLU,A/T | 2 | 1809- | A | ID=160 | ||
| 27 | I8-98189 520-0 | DISC ASM; CLU & FACING,A/T | 5 | 1810- | A | 4JK1-TCX ENG(LR0) T=1 . 8 | ||
| 16 | I8-98189 533-0 | RING; SNAP,CLU,A/T | 3 | 1809- | A | (B) ID=29 | ||
| 43 | I8-98189 525-0 | FLANGE; FWD CLU | AR | 1809- | A | T=3 .4 | ||
| 190 | I8-98189 572-0 | FLANGE; CLUTCH | AR | 1809- | A | T=3 . 8 | ||
| 191 | I8-98189 596-0 | SLEEVE; CLUTCH | 1 | 1809- | A | |||
| 32 | I8-98189 582-0 | GASKET; CLU,OUTER,A/T | 1 | 1809- | A | (A) ID=142 | ||
| 32 | I8-98189 585-0 | GASKET; CLU,OUTER,A/T | 1 | 1809- | A | (B) ID=14 0 | ||
| 190 | I8-98189 562-0 | FLANGE; CLUTCH | AR | 1809- | A | T=3 .2 | ||
| 188 | I8-98189 568-0 | FLANGE; REVERSE CLUTCH | AR | 1809- | A | T=3 . 7 | ||
| 43 | I8-98189 524-0 | FLANGE; FWD CLU | AR | 1809- | A | T=3 .3 | ||
| 186 | I8-98189 579-0 | PISTON; REVERSE CLUTCH | 1 | 1809- | A | |||
| 190 | I8-98189 568-0 | FLANGE; CLUTCH | AR | 1809- | A | T=3 . 7 | ||
| 76 | I8-98189 591-0 | PLATE; 3RD CLU | 4 | 1809- | A | T=2 .4 | ||
| 184 | I8-98189 516-0 | BALANCER; CLUTCH NO 1 | 1 | 1809- | A | |||
| 2 | I8-98189 534-0 | RACE; THRUST BRG,A/T | 1 | 1809- | A | |||
| 188 | I8-98189 564-0 | FLANGE; REVERSE CLUTCH | AR | 1809- | A | T=3 .4 | ||
| 95 | I8-98189 514-0 | GASKET; CLU HUB | 1 | 1809- | AB | (A) ID=108 | ||
| 190 | I8-98189 565-0 | FLANGE; CLUTCH | AR | 1809- | A | T=3 . 5 | ||
| 188 | I8-98189 561-0 | FLANGE; REVERSE CLUTCH | AR | 1809- | A | T=3 . 1 | ||
| 53 | I8-98189 541-0 | GASKET; PISTON OUTER,DIRECT CLU, | 1 | 1809- | A | ID=12 6.7 | ||
| 188 | I8-98189 563-0 | FLANGE; REVERSE CLUTCH | AR | 1809- | A | T=3 .3 | ||
| 43 | I8-98189 521-0 | FLANGE; FWD CLU | AR | 1809- | A | T=3 . 0 | ||
| 43 | I8-98189 523-0 | FLANGE; FWD CLU | AR | 1809- | A | T=3 .2 | ||
| 41 | I8-98189 521-0 | FLANGE; DIRECT CLU | 1 | 1809- | A | T=3 . 0 | ||
| 43 | I8-98189 529-0 | FLANGE; FWD CLU | AR | 1809- | A | T=3 . 8 | ||
| 185 | I8-98189 588-0 | BALANCER; CLUTCH NO 3 | 1 | 1809- | A | |||
| 161 | I8-98189 595-0 | PLATE; CLU | 1 | 1809- | A | T=1 . 5 | ||
| 39 | I8-98189 543-0 | SPRING; DIRECT CLU RETURN | 1 | 1809- | A | |||
| 52 | I8-98189 542-0 | GASKET; PISTON INNER,DIRECT CLU, | 1 | 1809- | A | ID=75 | ||
| 188 | I8-98189 572-0 | FLANGE; REVERSE CLUTCH | AR | 1809- | A | T=3 . 8 | ||
| 190 | I8-98189 566-0 | FLANGE; CLUTCH | AR | 1809- | A | T=3 . 6 | ||
| 18 | I8-98189 535-0 | B EARING; THRUST,CLU,A/T | 1 | 1809- | A | |||
| 25 | I8-98189 532-0 | RING; RET,BACKING PLATE,A/T | 1 | 1809- | A | ID=115 | ||
| 157 | I8-98189 765-0 | CLUTCH ASM; A/T | 1 | 1810- | A | 4JK1-TCX ENG(LR0) | ||
| 21 | I8-98189 558-0 | DISC ASM; CLU & FACING,A/T | 6 | 1809- | A | 4JJ1-TCX ENG(LS0) ID=14 9 | ||
| 28 | I8-98189 519-0 | DISC; CLU,A/T | 6 | 1810- | A | 4JK1-TCX ENG(LR0) OD=12 0 | ||
| 139 | I8-98189 589-0 | RING; SNAP | 1 | 1809- | A | (B) ID=79 | ||
| 188 | I8-98189 560-0 | FLANGE; REVERSE CLUTCH | AR | 1809- | A | T=3 . 0 | ||
| 43 | I8-98189 527-0 | FLANGE; FWD CLU | AR | 1809- | A | T=3 . 6 | ||
| 28 | I8-98189 519-0 | DISC; CLU,A/T | 7 | 1809- | A | 4JJ1-TCX ENG(LS0) OD=12 0 | ||
| 31 | I8-98189 586-0 | GASKET; CLU,INNER,A/T | 1 | 1809- | A | ID=101 | ||
| 43 | I8-98189 531-0 | FLANGE; FWD CLU | AR | 1809- | A | T=4 . 0 | ||
| 43 | I8-98189 530-0 | FLANGE; FWD CLU | AR | 1809- | A | T=3 . 9 | ||
| 43 | I8-98189 522-0 | FLANGE; FWD CLU | AR | 1809- | A | T=3 . 1 | ||
| 16 | I8-98189 518-0 | RING; SNAP,CLU,A/T | 1 | 1809- | AB | (A) ID=35 | ||
| 190 | I8-98189 561-0 | FLANGE; CLUTCH | AR | 1809- | A | T=3 . 1 | ||
| 13 | I8-98189 513-0 | GASKET; INNER,CLU,A/T | 1 | 1809- | A | ID=40 | ||
| 189 | I8-98189 590-0 | DISC; CLUTCH NO 3 | 5 | 1809- | A | OD=162 |
