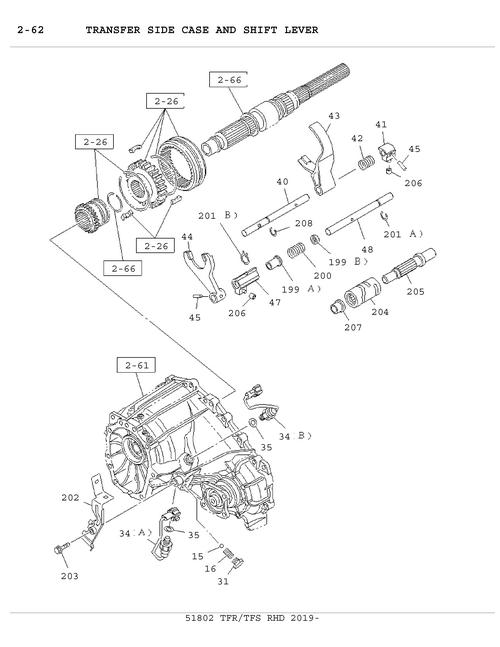

2-62 | TRANSFER SIDE CASE AND SHIFT LEVER
DMAX
D-MAX 2019
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 48 | I8-97234 230-0 | ROD; SHIFT,HIGH-LOW,TRANSFER | 1 | 1809- | DEF | |||
| 41 | I8-97234 233-1 | BLOCK; SHIFT,4X2-4X4,TRANSFER | 1 | 1809- | DEF | |||
| 43 | I8-97234 231-0 | ARM; SHIFT,4X2-4X4,TRANSFER | 1 | 1809- | DEF | |||
| 199 | I8-97234 662-1 | COLLAR; TRANSFER CONTROL | 1 | 1809- | DEF | (A) | ||
| 207 | I8-98158 124-0 | BUSH; CONTROL SHAFT | 1 | 1809- | DEF | |||
| 47 | I8-98161 034-0 | BLOCK; SHIFT,LOW-HIGH,TRANSFER | 1 | 1809- | DEF | |||
| 16 | I8-97145 374-0 | SPRING; DETENT,SHIFT ROD,TRANSFE | 2 | 1809- | DEF | L=2 3.4 | ||
| 203 | I0-28650 825-0 | BOLT; BRACKET,SWITCH | 1 | 1809- | DEF | 06.216 M8X2 5 FLANGE | ||
| 208 | I8-94460 357-0 | RING; SNAP,SHIFT | 1 | 1809- | DEF | 04.307 ID=12 | ||
| 201 | I8-94460 357-0 | RING; SNAP,SHIFT | 1 | 1809- | DEF | 04.307 (A) ID=12 | ||
| 31 | I0-92002 412-0 | PLUG; DETENT BALL,TRANSFER | 2 | 1809- | DEF | M12X9 | ||
| 34 | I8-98181 233-0 | SWITCH; TRANSFER INDICATOR | 1 | 1809- | DEF | (B) PUSH OFF | ||
| 201 | I8-97305 011-1 | RING; SNAP,SHIFT | 1 | 1809- | DEF | (B) ID=23 | ||
| 45 | I8-94171 541-0 | PIN; SPR,SHIFT ARM TO ROD | 2 | 1809- | DEF | D=4.2 L=25 | ||
| 44 | I8-98331 855-0 | ARM; SHIFT,HIGH-LOW,TRANSFER | 1 | 1809- | DEF | |||
| 42 | I8-97239 010-1 | SPRING; GEAR LOCK RELEASE,TRANSF | 1 | 1809- | DEF | |||
| 34 | I8-98181 234-0 | SWITCH; TRANSFER INDICATOR | 1 | 1809- | DEF | (A) PUSH ON | ||
| 35 | I9-09571 414-0 | GASKET; INDICATOR SWITCH,TRANSFE | 2 | 1809- | DEF | 08.955 ID=14.2 OD=2 0 | ||
| 206 | I8-97234 499-0 | ROLLER; GUIDE,SHIFT | 2 | 1809- | DEF | |||
| 40 | I8-97234 229-0 | ROD; SHIFT,4X2-4X4,TRANSFER | 1 | 1809- | DEF | |||
| 199 | I8-97234 663-1 | COLLAR; TRANSFER CONTROL | 1 | 1809- | DEF | (B) | ||
| 204 | I8-98158 123-0 | DRUM; SHIFT | 1 | 1809- | DEF | |||
| 15 | I8-94435 335-0 | BALL; DETENT,SHIFT ROD,TRANSFER | 2 | 1809- | DEF | |||
| 202 | I8-98118 922-1 | BRACKET; SWITCH | 1 | 1809- | DEF | |||
| 200 | I8-97239 011-0 | SPRING; SHIFT HIGH-LOW | 1 | 1809- | DEF | |||
| 205 | I8-98063 364-1 | SHAFT; SHIFT DRUM | 1 | 1809- | DEF |
