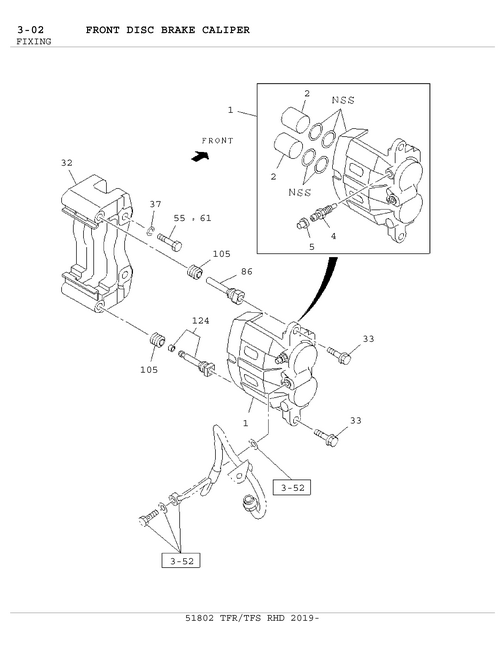

3-02 | FRONT DISC BRAKE CALIPER
DMAX
D-MAX 2019
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 37 | I0-91510 814-0 | WASHER; LK | 4 | 1809- | ABCDEF | 06.174 ID=14 .2 | ||
| 2 | I8-98078 000-0 | PISTON; CALIPER,DISC BRK,FRT | 4 | 1809- | ABCDEF | |||
| 5 | I8-98050 479-0 | CAP; BLEEDER,DISC BRK,FRT | 2 | 1809- | ABCDEF | |||
| 1 | I8-98077 997-0 | CALIPER; FRT DISC BRK | 1 | 1809- | ABCDEF | |||
| 17 | I8-97947 571-0 | PAD KIT; CALIPER,DISC BRK,FRT | 1 | 1809- | D | W/GREASE | ||
| 17 | I8-97947 571-0 | PAD KIT; CALIPER,DISC BRK,FRT | 1 | 1809- | A | HIGH RIDE SUSPENSION(7 W/GREASE | ||
| 55 | I8-98037 731-0 | BOLT; SUPPORT BRKT TO DISC BRK | 2 | 1809- | ABCDEF | |||
| 61 | I8-98037 731-0 | BOLT; SUPPORT BRKT TO KNUCKLE | 2 | 1809- | ABCDEF | 4681 | ||
| 17 | I8-97947 571-0 | PAD KIT; CALIPER,DISC BRK,FRT | 1 | 1809- | EF | EXC. MALAYSIA EQUIPMEN W/GREASE | ||
| 105 | I8-98078 193-0 | BOOT; CALIPER | 4 | 1809- | ABCDEF | |||
| 33 | I8-98078 192-0 | BOLT; SUPPORT BRKT TO DISC BRK | 4 | 1809- | ABCDEF | |||
| 2 | I6-98078 000-0 | PISTON; CALIPER,DISC BRK,FRT | 4 | 1809- | ABCDEF | (IADG) | ||
| 124 | I8-98078 176-0 | PIN ASM; W/BUSH | 2 | 1809- | ABCDEF | |||
| 86 | I8-98078 175-0 | PIN; GUIDE | 2 | 1809- | ABCDEF | |||
| 32 | I8-97947 221-0 | SUPPORT; FRT DISC BRK | 2 | 1809- | ABCDEF | |||
| 1 | I8-98077 996-0 | CALIPER; FRT DISC BRK | 1 | 1809- | ABCDEF | |||
| 17 | I8-97947 571-0 | PAD KIT; CALIPER,DISC BRK,FRT | 1 | 1809- | BC | HIGH RIDE SUSPENSION(7 EXC. MALAYSIA EQUIPMEN W/GREASE | ||
| 4 | I8-98050 476-0 | SCREW; BLEEDER,DISC BRK,FRT | 2 | 1809- | ABCDEF | |||

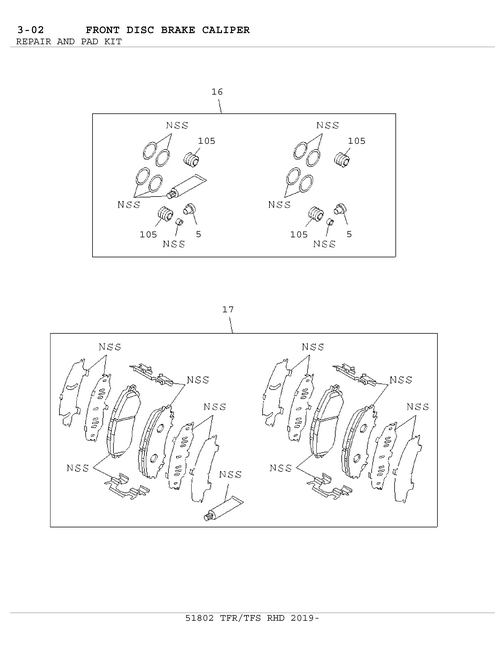

| 16 | I8-98079 105-0 | REPAIR KIT; CALIPER,DISC BRK,FRT | 1 | 1809- | ABCDEF | W/GREASE | ||
| 17 | I6-97947 571-0 | PAD KIT; CALIPER,DISC BRK,FRT | 1 | 1809- | EF | (IADG) EXC. MALAYSIA EQUIPMEN W/GREASE |
