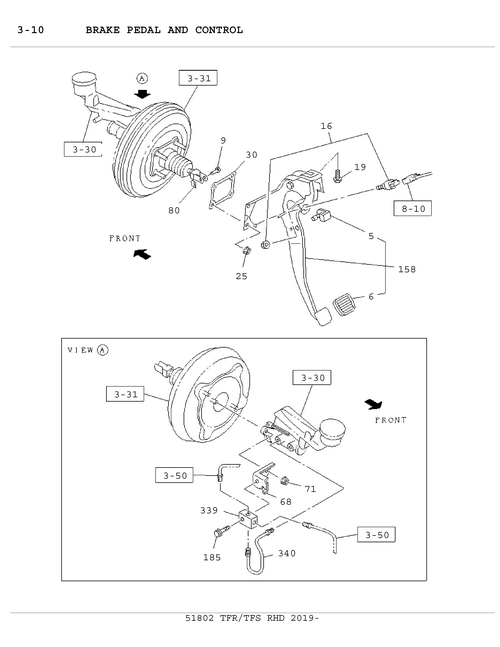

3-10 | BRAKE PEDAL AND CONTROL

Partial Engine

DMAX

D-MAX 2019

Key PART NO ITC DESCRIPTION QTY APP DATE LR MODEL REMARKS
16 I8-98140 487-0 SWITCH; STOP LAMP 1 1809-1809 ABCDEF 4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S (MZJ) ,M/T ED 6N(Y5Z),A/T 6 SPEED-AISI AUTO CRUISE CONT<K3 0 > EURO4 SPECIFICATION(NT4),EU ICATION(NT5)
16 I8-98140 487-0 SWITCH; STOP LAMP 1 1810- ABCDEF 4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) EURO4 SPECIFICATION(NT4)
16 I8-98140 486-0 SWITCH; STOP LAMP 1 1810- ABCDEF 4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1) EMISSION SYSTEM R15-04(K75) CIFICATION(NT2) EXC. AUTO CRUISE CONT<K3 0>
71 I8-98031 675-0 NUT; BRK M/CYL 2 1809- ABCDEF 4 WHEEL ANTI LOCK BRAKE<JE5 ELECTRONIC TRACTION CONTROL
6 I8-97263 035-0 COVER; BRK PEDAL 1 1809- ABCDEF A/T 5 SPEED-AISIN(MA1),A/T SIN(Y6A)
9 I8-97311 602-0 PIN; JAW JOINT 1 1809- ABCDEF
25 I8-97581 233-0 NUT; FLANGE,MTG BRKT TO BODY 4 1809- ABCDEF M8 FLANGE
6 I8-97318 799-0 COVER; BRK PEDAL 1 1809-1809 ABCDEF M/T MUX 5 SPEED 5S(MZJ),M/T ED(M75),M/T MUA 5 SPEED 5G( VL 6 SPEED 6N(Y5Z),M/T MVL (Y6P)
16 I8-98140 487-0 SWITCH; STOP LAMP 1 1809-1809 BC EF RZ4E-TC ENG(RDZ) EXC. AUTO CRUISE CONT<K3 0>
16 I8-98140 487-0 SWITCH; STOP LAMP 1 1810- ABCDEF 4JJ1-TCX ENG(LS0) A/T 6 SPEED-AISIN(Y6A) EURO5 SPECIFICATION(NT5) EXC. AUTO CRUISE CONT<K3 0>
340 I8-97947 756-0 PIPE; BRK M/CYL 1 1809- ABCDEF EXC. 4 WHEEL ANTI LOCK BRAK CTRONIC TRACTION CONTROL<NW
158 I8-98061 817-1 PEDAL ASM; BRK 1 1810- ABCDEF M/T MUA 5 SPEED 5H(MWQ),M/T ED 5S(MZJ),M/T MSG 5 SPEED( UA 5 SPEED 5G(RSP),M/T MVL (Y5Z),M/T MVL 6 SPEED 6Y(Y6
30 I8-97943 457-0 GASKET; M/VAC TO BODY 1 1809- ABCDEF 4 WHEEL ANTI LOCK BRAKE<JE5 ELECTRONIC TRACTION CONTROL
16 I8-98140 487-0 SWITCH; STOP LAMP 1 1809-1809 BC EF RZ4E-TCX HI-POWER ENG(LNC)
16 I8-98140 486-0 SWITCH; STOP LAMP 1 1809-1809 BC 4JA1-T ENG(LP0) EXC. AUTO CRUISE CONT<K3 0>
16 I8-98140 487-0 SWITCH; STOP LAMP 1 1810- ABCDEF 4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1),M/T D 5S(MZJ),M/T MVL 6 SPEED 6 AUTO CRUISE CONT<K3 0 > EMISSION SYSTEM R15-04(K75)
16 I8-98140 486-0 SWITCH; STOP LAMP 1 1809-1809 ABCDEF 4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1),M/T D 5S(MZJ),M/T MVL 6 SPEED 6 MVL 6 SPEED 6Y(Y6P) EMISSION SYSTEM R15-04(K75) CIFICATION(NT2) EXC. AUTO CRUISE CONT<K3 0>
16 I8-98140 487-0 SWITCH; STOP LAMP 1 1809-1809 BC EF RZ4E-TC ENG(RDZ) AUTO CRUISE CONT<K3 0 > EURO2 SPECIFICATION(NT2)
6 I8-97318 799-0 COVER; BRK PEDAL 1 1810- ABCDEF M/T MUA 5 SPEED 5H(MWQ),M/T ED 5S(MZJ),M/T MSG 5 SPEED( UA 5 SPEED 5G(RSP),M/T MVL (Y5Z),M/T MVL 6 SPEED 6Y(Y6
80 I8-98007 161-0 PIN; SNAP,BRK PEDAL 1 1809- ABCDEF .5784722222222
5 I1-73996 231-1 STOPPER; BRK PEDAL 1 1809- ABCDEF
16 I8-98140 486-0 SWITCH; STOP LAMP 1 1810- ABCDEF 4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1),M/T D 5S(MZJ),M/T MVL 6 SPEED 6 EMISSION SYSTEM R15-04(K75) CIFICATION(NT2),EURO3 SPECI T3) EXC. AUTO CRUISE CONT<K3 0>
185 I8-97947 755-0 BOLT; BRKT 1 1809- ABCDEF EXC. 4 WHEEL ANTI LOCK BRAKE CTRONIC TRACTION CONTROL<NW M8X3 5 FLANGE
16 I8-98140 487-0 SWITCH; STOP LAMP 1 1809-1809 ABCDEF 4JJ1-TCX ENG(LS0) A/T 6 SPEED-AISIN(Y6A) EURO5 SPECIFICATION(NT5) EXC. AUTO CRUISE CONT<K3 0>
16 I8-98140 487-0 SWITCH; STOP LAMP 1 1810- ABCDEF 4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ),M/T ED 6N(Y5Z),A/T 6 SPEED-AISI AUTO CRUISE CONT<K3 0 > EURO4 SPECIFICATION(NT4),EU ICATION(NT5)
16 I8-98140 487-0 SWITCH; STOP LAMP 1 1810- ABCDEF 4JJ1-TCX ENG(LS0) EURO4 SPECIFICATION(NT4) EXC. AUTO CRUISE CONT<K3 0>
339 I8-98163 269-0 CONNECTOR; OIL PIPE 1 1809- ABCDEF EXC. 4 WHEEL ANTI LOCK BRAK CTRONIC TRACTION CONTROL<NW
16 I8-98140 486-0 SWITCH; STOP LAMP 1 1809-1809 ABCDEF 4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S (MZJ) ,M/T ED 6N(Y5Z),M/T MVL 6 SPEED EURO5 SPECIFICATION(NT5) EXC. AUTO CRUISE CONT<K3 0>
16 I8-98140 487-0 SWITCH; STOP LAMP 1 1810- BC EF RZ4E-TC ENG(RDZ) EXC. AUTO CRUISE CONT<K3 0>
16 I8-98140 486-0 SWITCH; STOP LAMP 1 1810- BC 4JA1-T ENG(LP0) EXC. AUTO CRUISE CONT<K3 0>
16 I8-98140 486-0 SWITCH; STOP LAMP 1 1810- ABCDEF 4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ),M/T ED 6N(Y5Z) EURO5 SPECIFICATION(NT5) EXC. AUTO CRUISE CONT<K3 0>
68 I8-98163 234-0 BRACKET; SERVO TO DASH PANEL 1 1809- ABCDEF EXC. 4 WHEEL ANTI LOCK BRAK CTRONIC TRACTION CONTROL<NW
16 I8-98140 487-0 SWITCH; STOP LAMP 1 1809-1809 ABCDEF 4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1),M/T D 5S (MZJ) ,M/T MVL 6 SPEED 6 AUTO CRUISE CONT<K3 0 > EMISSION SYSTEM R15-04(K75)
16 I8-98140 487-0 SWITCH; STOP LAMP 1 1810- ABCDEF 4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) EXC. AUTO CRUISE CONT<K3 0>
16 I8-98140 487-0 SWITCH; STOP LAMP 1 1810- ABCDEF 4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1) AUTO CRUISE CONT<K3 0 > EURO3 SPECIFICATION(NT3)
30 I8-97943 457-0 GASKET; M/VAC TO BODY 1 1809- ABCDEF EXC. ELECTRONIC TRACTION CO
16 I8-98140 487-0 SWITCH; STOP LAMP 1 1809-1809 ABCDEF 4JJ1-TCX ENG(LS0) EURO4 SPECIFICATION(NT4) EXC. AUTO CRUISE CONT<K3 0>
16 I8-98140 487-0 SWITCH; STOP LAMP 1 1809-1809 ABCDEF 4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1) AUTO CRUISE CONT<K3 0 > EURO3 SPECIFICATION(NT3)
19 I8-97947 104-1 BOLT; BRKT 1 1809- ABCDEF M8X22.5 W/PL WASHER
16 I8-98140 487-0 SWITCH; STOP LAMP 1 1810- ABCDEF 4JK1-TCX ENG(LR0) AUTO CRUISE CONT<K3 0 > EURO2 SPECIFICATION(NT2)
158 I8-98061 818-1 PEDAL ASM; BRK 1 1809- ABCDEF A/T 5 SPEED-AISIN(MA1),A/T SIN(Y6A)
16 I8-98140 487-0 SWITCH; STOP LAMP 1 1810- BC EF RZ4E-TCX HI-POWER ENG(LNC)
158 I8-98061 817-1 PEDAL ASM; BRK 1 1809-1809 ABCDEF M/T MUX 5 SPEED 5S(MZJ),M/T ED(M75),M/T MUA 5 SPEED 5G( VL 6 SPEED 6N(Y5Z),M/T MVL (Y6P)
71 I8-98031 675-0 NUT; BRK M/CYL 2 1809- ABCDEF EXC. ELECTRONIC TRACTION CO
